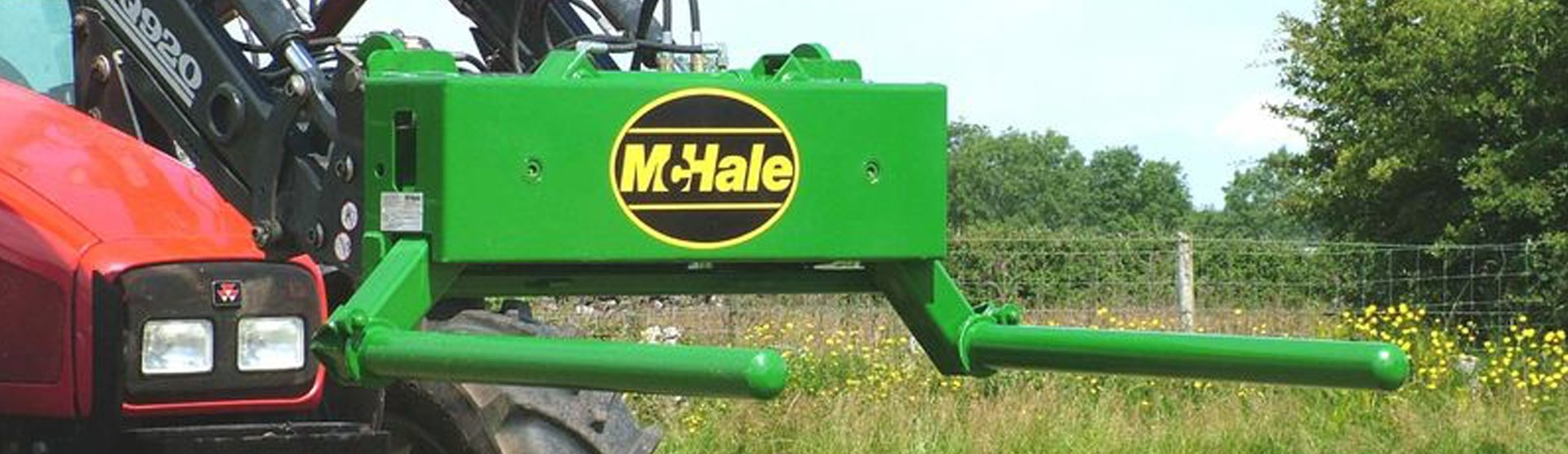

691 Round Bale Handler

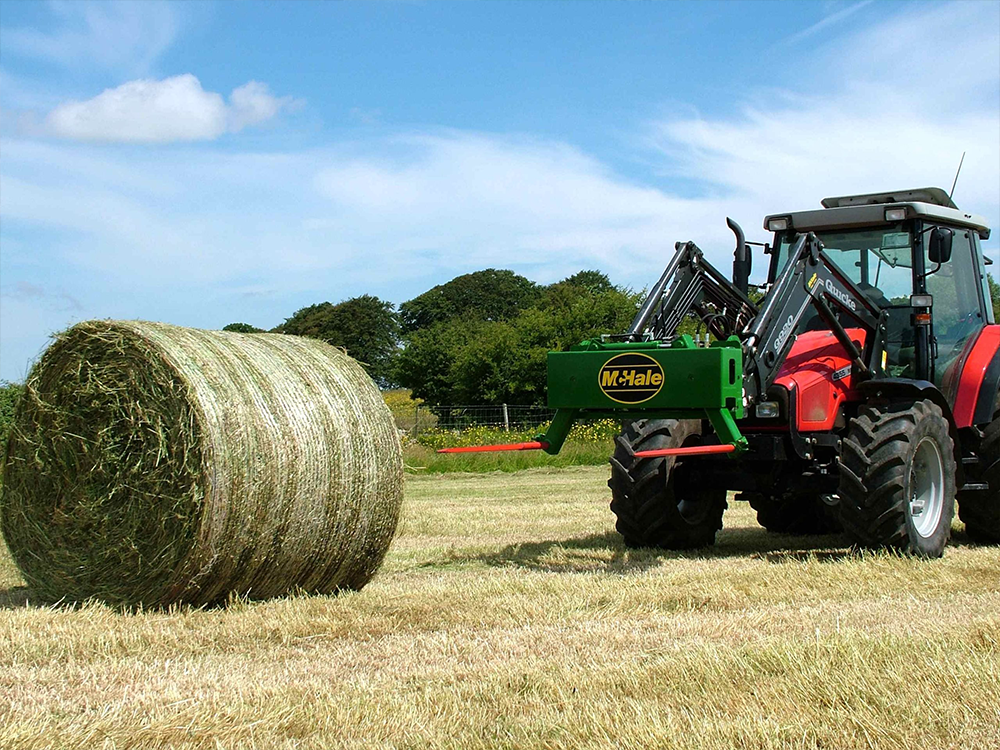

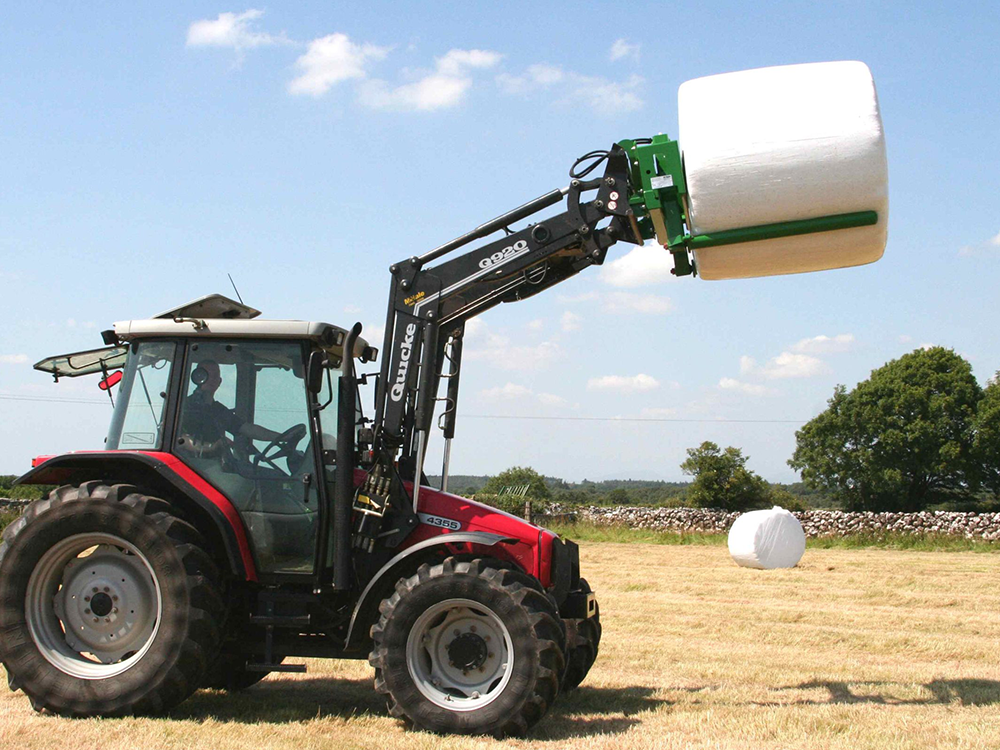

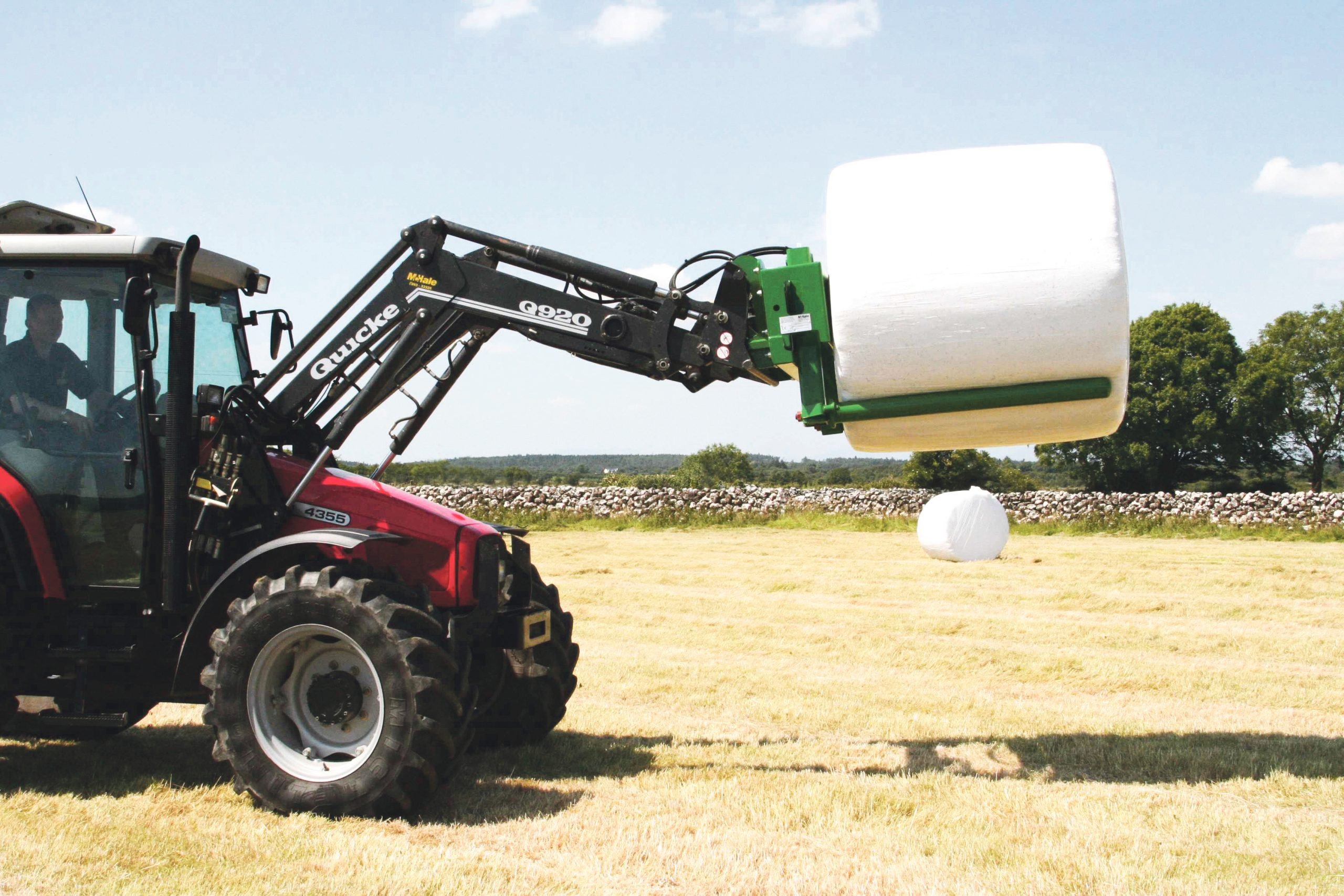

Simplicity, versatility and strength are the main features of the McHale 691 round bale handler. When the 691 round bale handler is transporting wrapped bales, two adjustable rollers powered by a double-acting hydraulic ram, close to cradle and carry the wrapped or unwrapped round bale securely and safely.

Download Product PDF

Overview

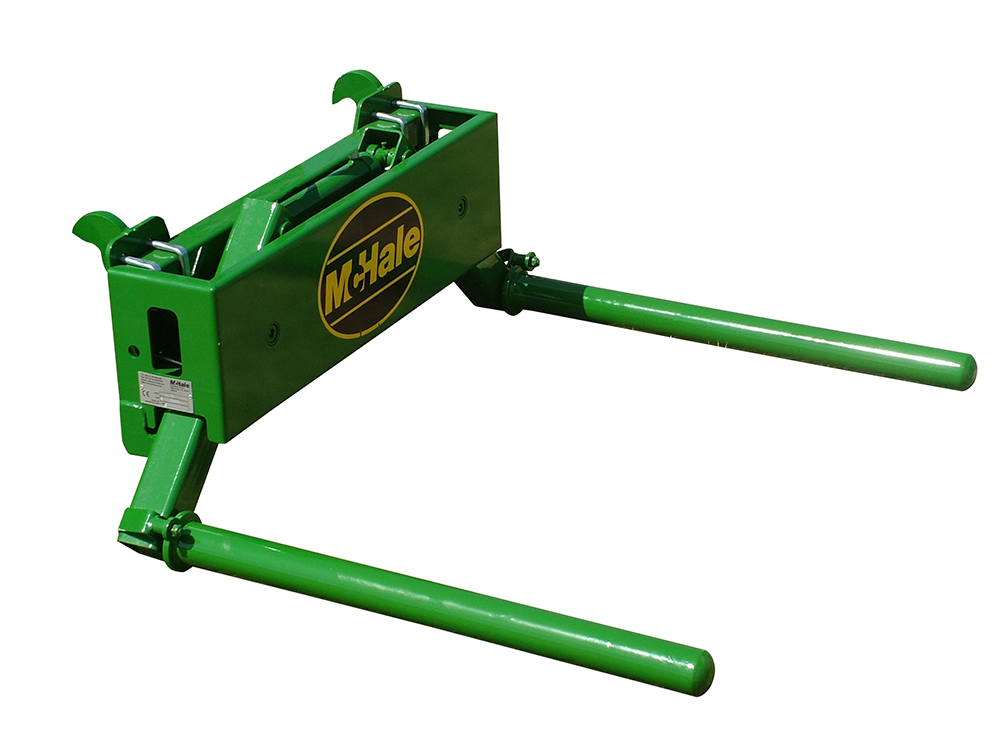

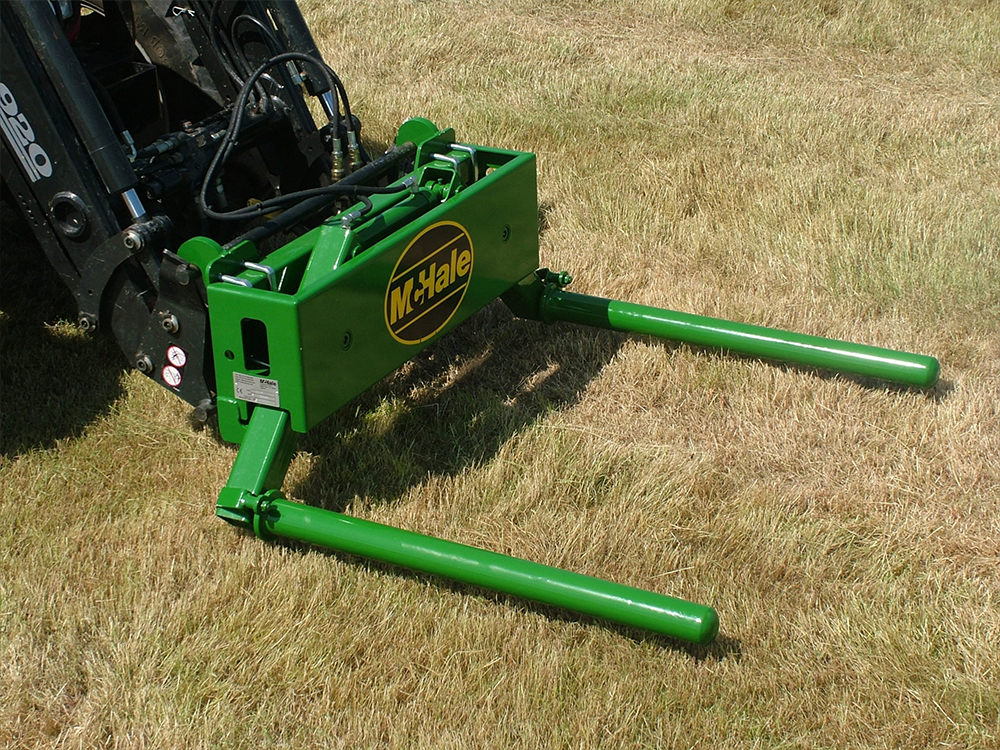

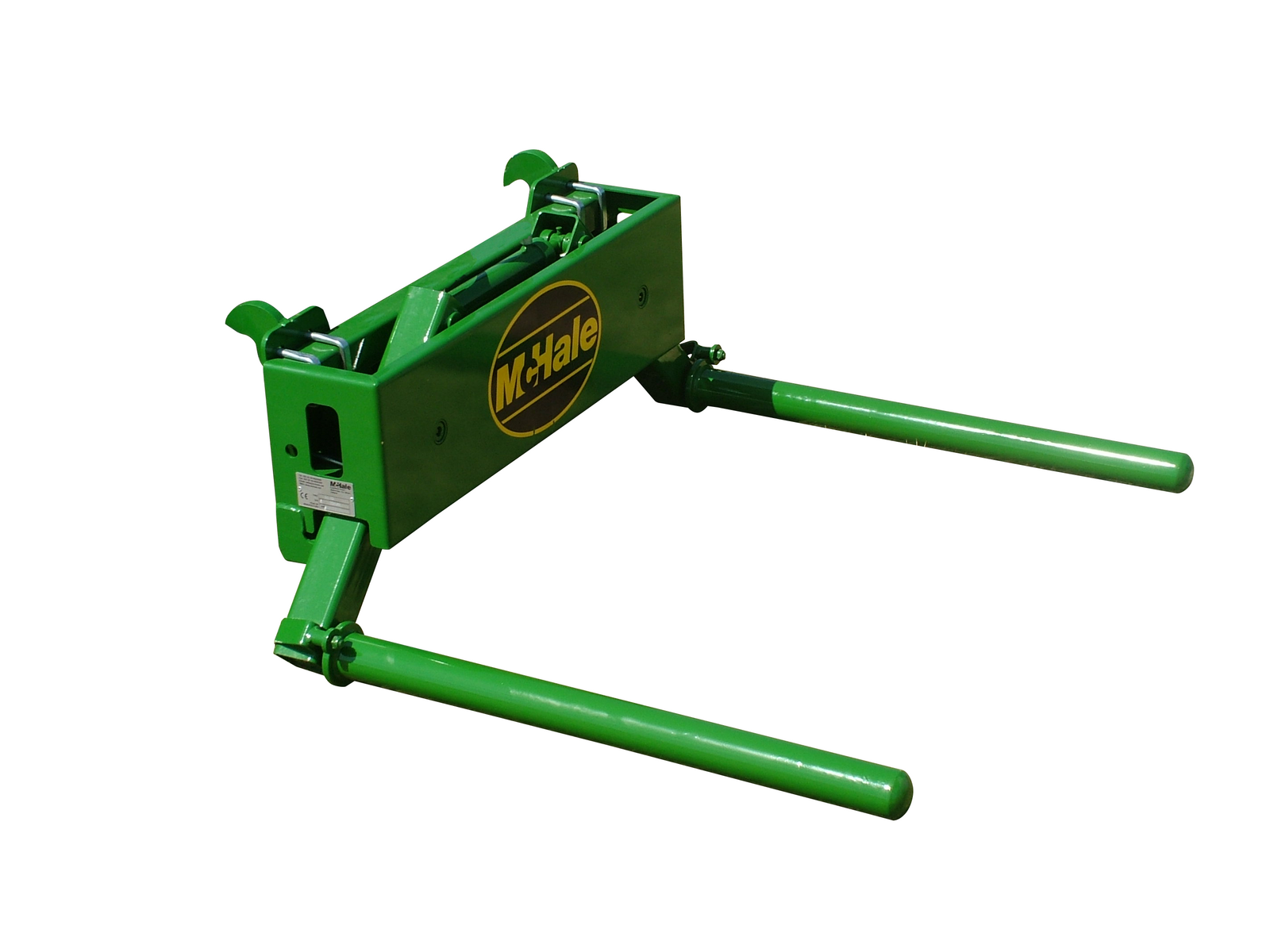

The McHale 691 round bale handler is a heavy duty handler with rotating rollers that have tine reinforcement. It can be used to carry one bale of silage or spike two bales of hay or straw.

On the 691 , the rotating rollers can be removed, transforming it into a spike type round bale handler capable of transporting two unwrapped bales of silage, hay, straw or lucerne at the one time. With its rugged, high-quality construction and large lifting capacity the McHale 691 round bale handler is the logical choice for you.

Features

Rotating rollers

Features

Rotating rollers

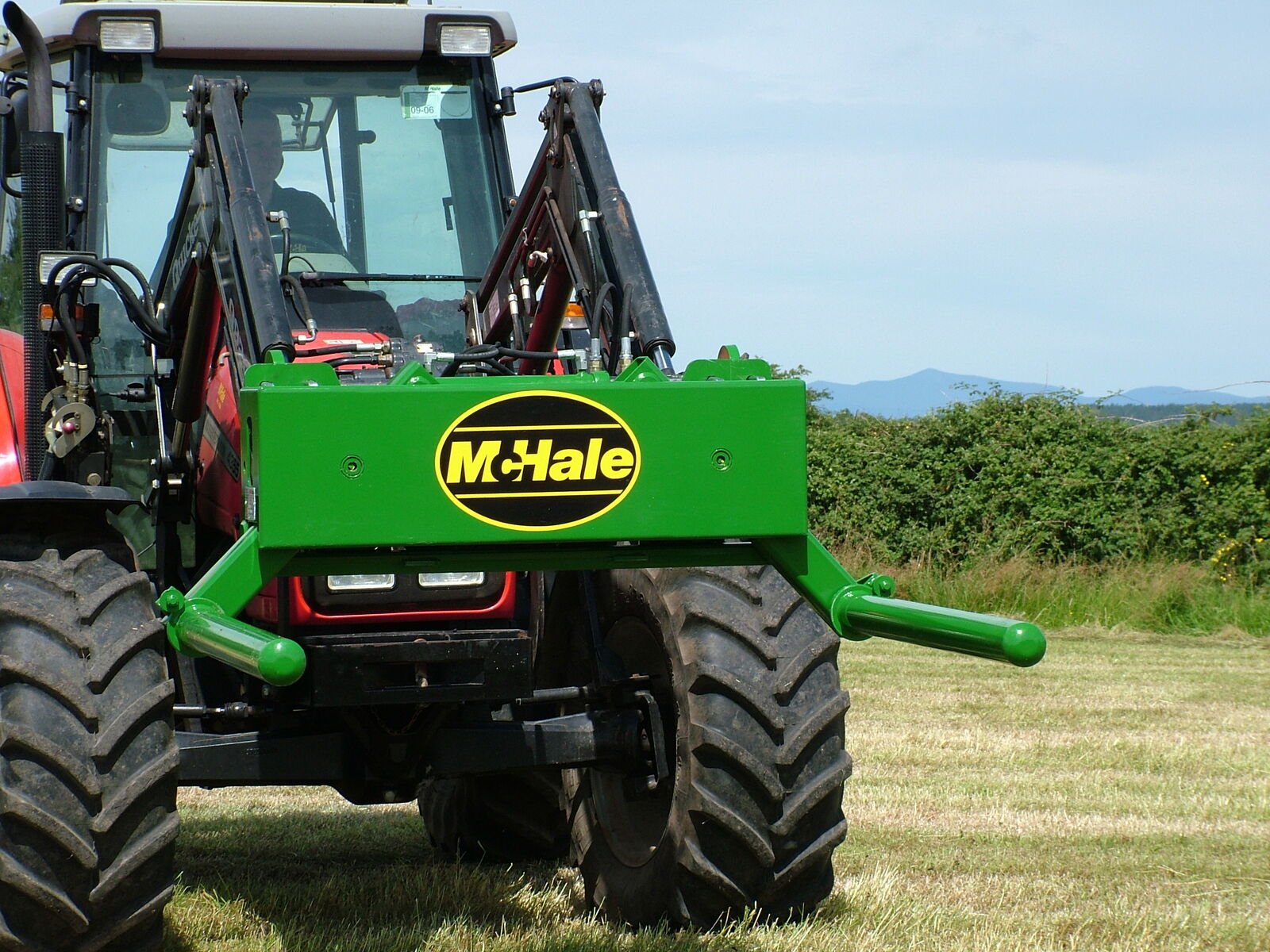

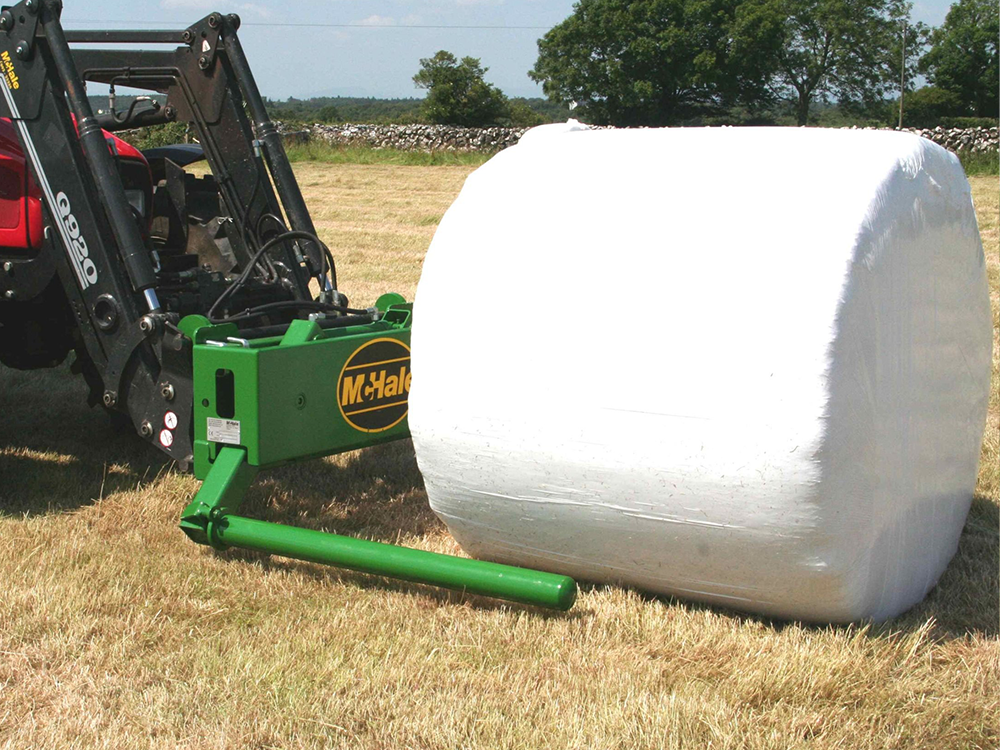

The rotating rollers on the McHale 691 round bale handler allow for careful handling and stacking of wrapped round bales of silage.

Features

Double Acting Hydraulic Ram

Features

Double Acting Hydraulic Ram

The double acting hydraulic ram on the 691 allows the rollers to cradle and carry the bale securely and safely.

Features

Tine Reinforcement

Features

Tine Reinforcement

On the McHale 691 the two rotating rollers are reinforced with tines to provide additional strength when transporting wrapped or unwrapped round bales.

Features

Removable Rollers

Features

Removable Rollers

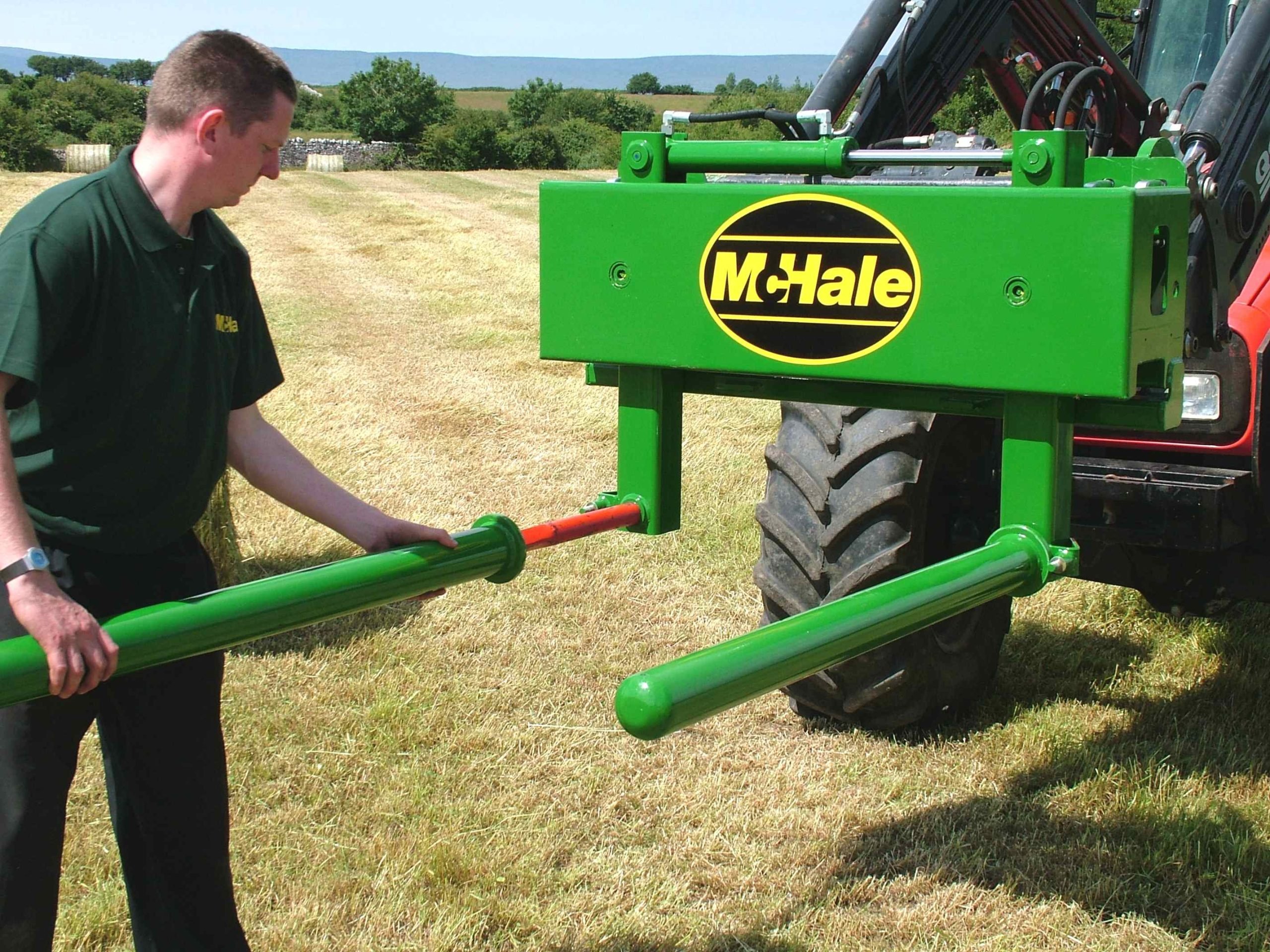

An operator can easily remove the rotating rollers on the McHale 691 to expose the two tines, which can be used to spike and carry two bales of hay or straw.

Features

Twin Tines for carrying bales

Features

Twin Tines for carrying bales

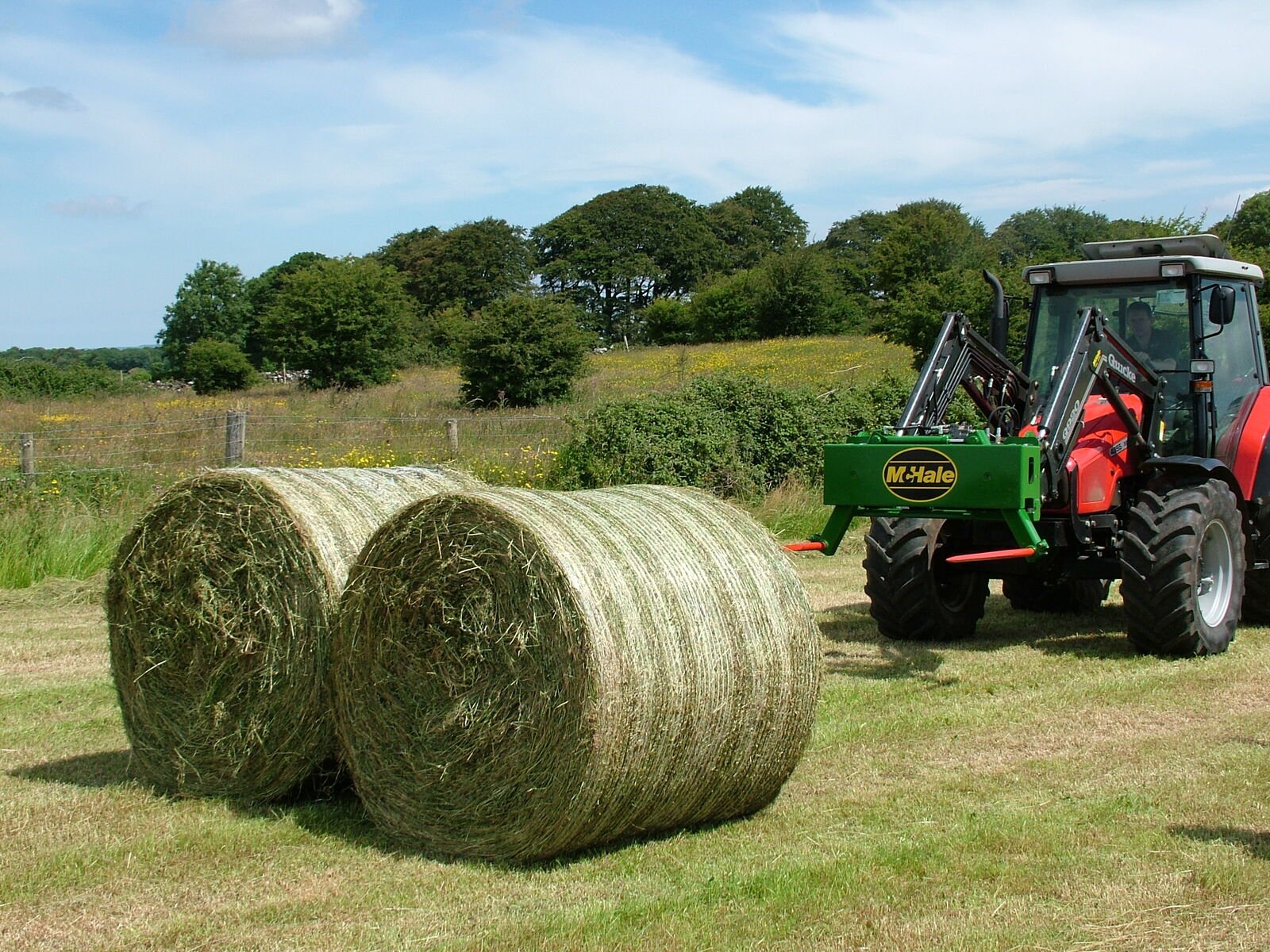

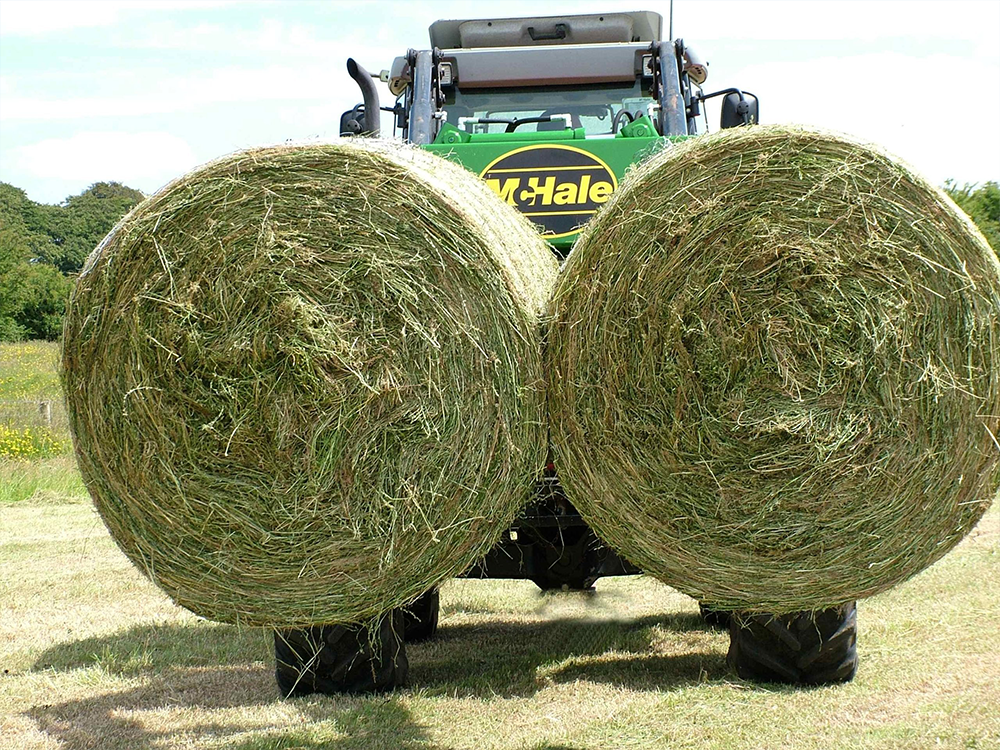

The McHale 691 can be used to spike two bales and transport the round bales.

Features

Lockable Arms for Transportation

Features

Lockable Arms for Transportation

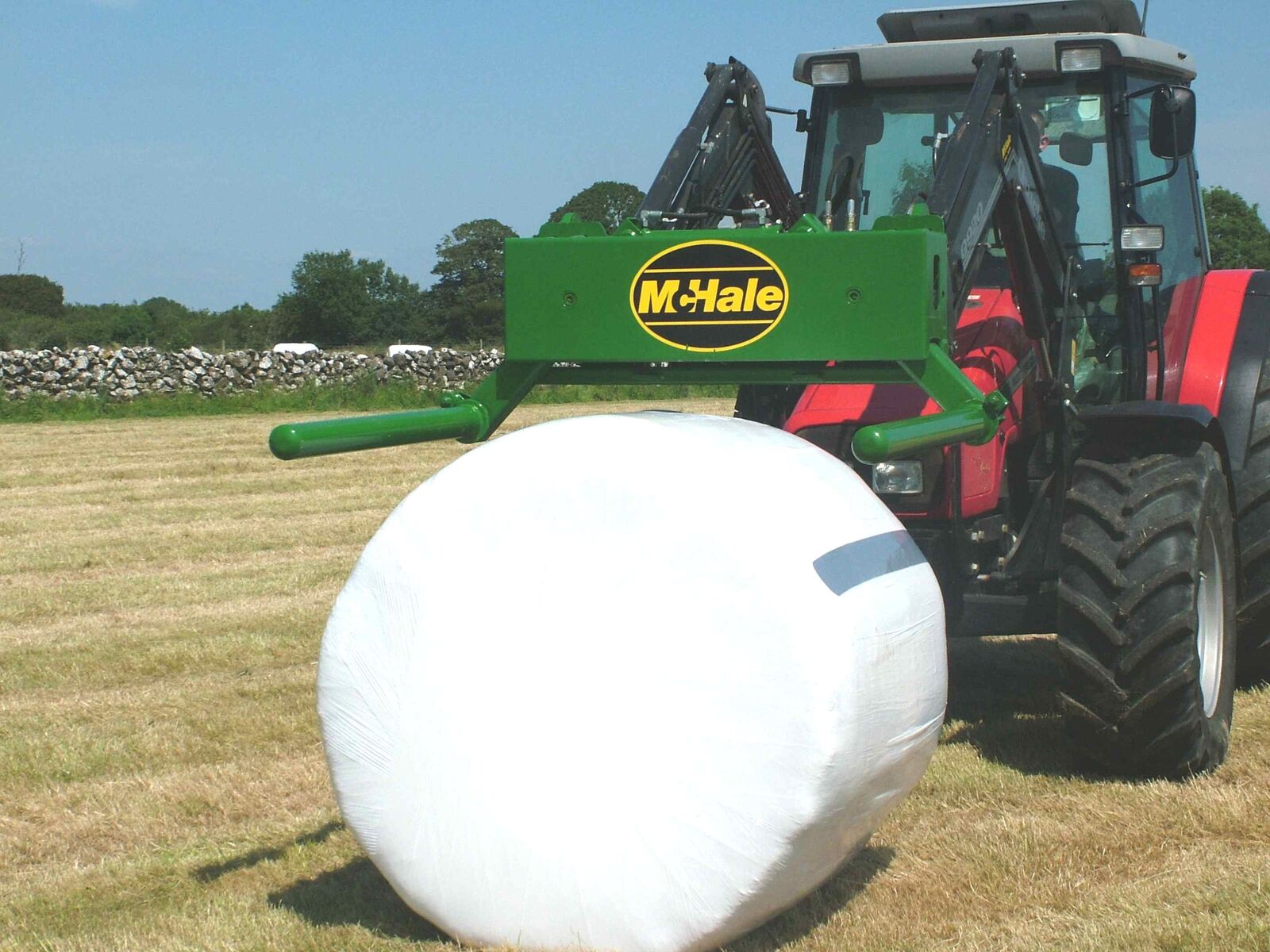

On the McHale 691, when the two legs are extended out fully, the two arms lock in place for transportation stopping the arms from moving and reducing associated noise and vibrations.

    691 – Round Bale Handler

    Watch the video for the McHale 691 round bale handler, a heavy duty handler with high-quality construction, large lifting capacity and rotating rollers that have tine reinforcement. It can be used to carry one bale of silage or spike two bales of hay or straw.

      Technical Specification

      Weight 160 kg / 352 lbs
      Height 0.65 m / 2’0”
      Length (overall) 1.42 m / 4’7”
      Length of Arms 1.19 m / 4’0”
      Max width (fully open) 1.63 m / 5’4”
      Open Distance between the Arms 1.37 m / 4’5” (Open)
      Closed Distance between the Arms 0.73 m / 2’4  (Closed)
      Lifting Capacity 1100 kg / 2425 lbs
      Hydraulic Requirements One Double Acting Service
      Check Valve & Pipes Standard
      Minimum Hydraulic Pressure 150 bar/ 2250 Ibs/sq.in
      Options

      Adapted for Multipurpose

      On the McHale 691 round bale handler, when the two legs are extended out fully, the two arms lock in place for transportation. This stops the arms from moving and reduces the associated noise and vibrations.
