The McHale Variable Chamber Baler Range is made up of V6, V8 and Fusion Vario machines. The range consists of 7 models;
• V6740 – Non-Chopper Baler
• V6750 – 15 knife Chopper Baler
• V6760 – Fully Automatic Chopper Baler
• V8940 – High-Capacity Non-Chopper Baler
• V8950 – High-Capacity Chopper Baler
• V8960 – Fully Automatic High-Capacity Chopper Baler
• Fusion Vario Plus– Integrated Baler Wrapper with Film on Film Technology
Offering innovative ideas to allow you to work smarter, whilst achieving more output, the McHale name has become synonymous with the production of robust and reliable machines, making McHale the number one choice for professional users.

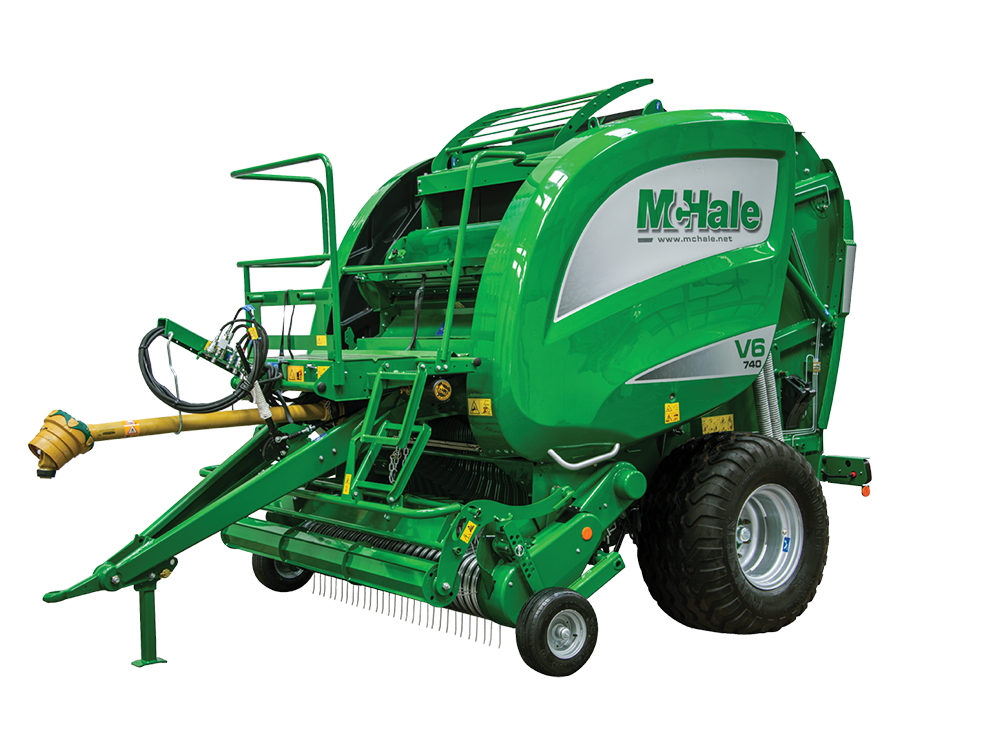

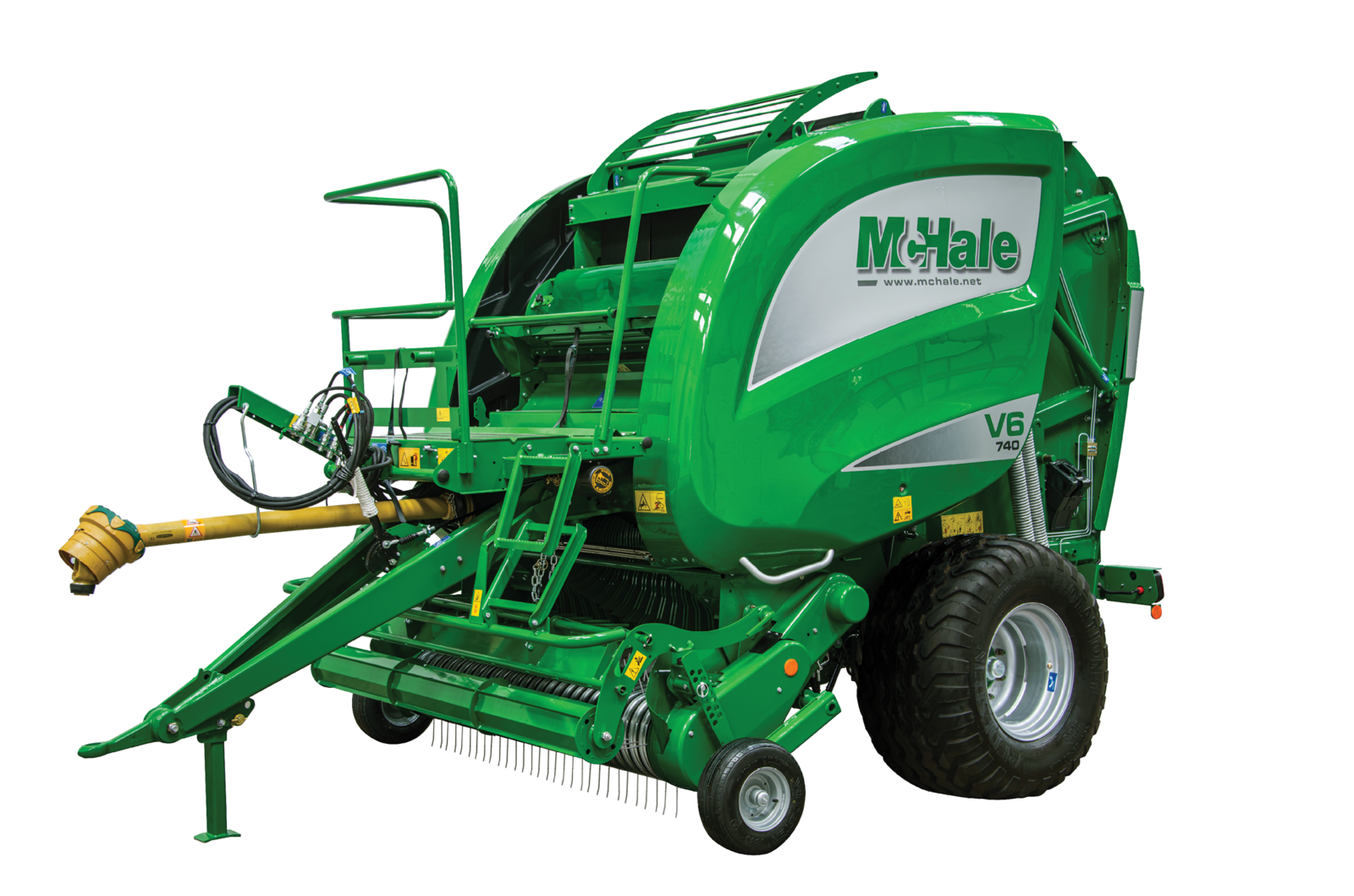

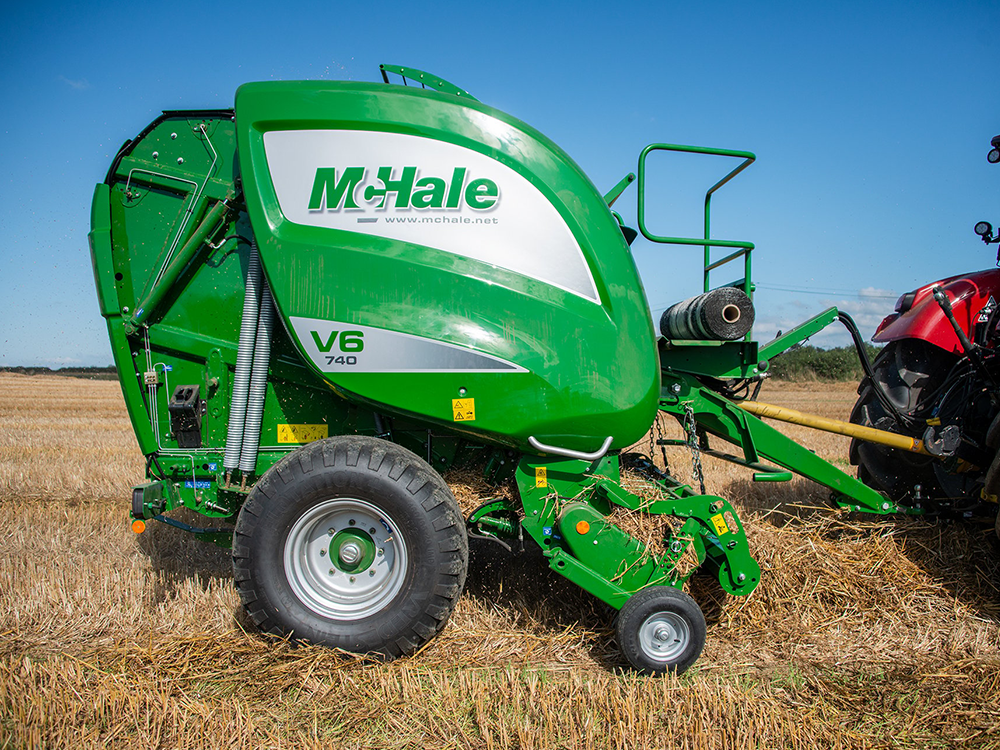

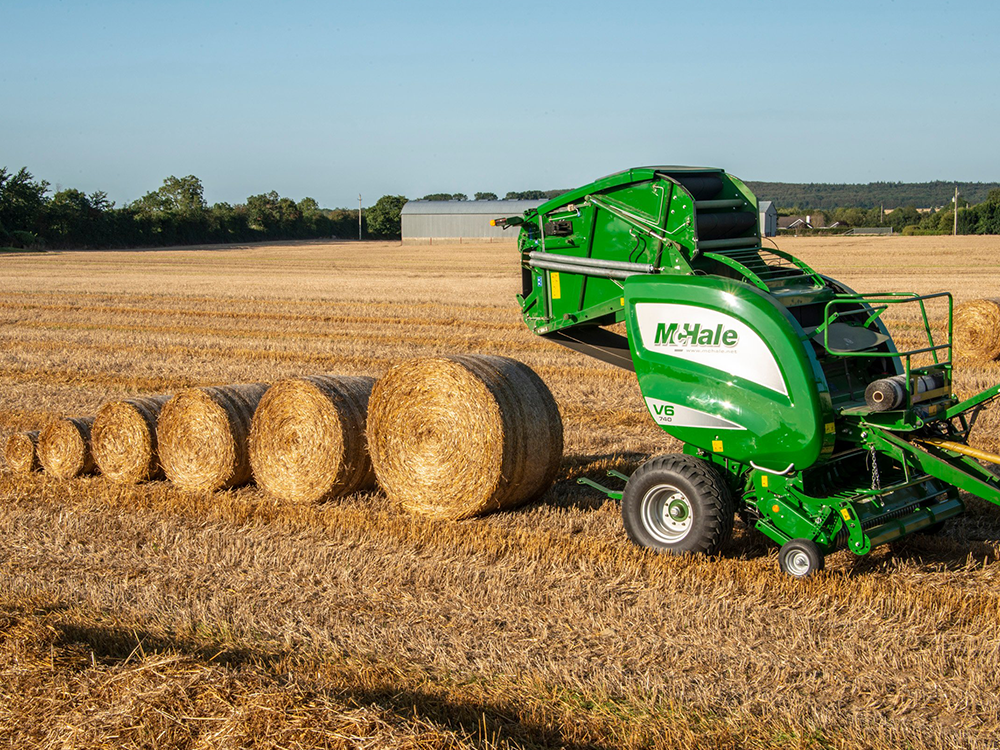

Download Product PDFThe McHale V6740 is a non-chopper variable chamber baler capable of producing bales from 0.6–1.68m (2’–5′ 6″). It is equipped with a high intake, twin finger feed rotor to ensure even and efficient crop flow to the bale chamber.
The V6740 is driven by a primary drive system for optimum bale formation. Central grease blocks are fitted on the machine for greasing whilst oiling is controlled through the continuous oiling system which is driven from the gearbox. Net and bale density can be adjusted through the Expert Plus Control Console.
The machine is fitted with 460/65-20 tyres as standard.
2.1m Profi-Flo Pick-Up | Heavy Duty Feed Rotor | Drop Floor Unblocking System |
50 mm Bale Chamber Bearings* | 1¼” Chain on the Bale Chamber | Centralised Greasing Blocks (Manual Greasing) |
Continuous Oiling System | Expert Plus Control Console | 460/65/20 Tyres |
High Performance Netter | Bale Kicker | Mechanical Tailgate Locking |
Drop Floor Sensor | 3-Endless Belts / Single Belt (Optional) | Bale Shape Assist Indicators |
* 55 mm bearings fitted to rollers with long shafts and double sprockets |
Over the last decade, McHale has designed and developed various types of pick-ups. After extensive testing, McHale decided it will offer customers the choice of 2 pick-up options depending on their working conditions:

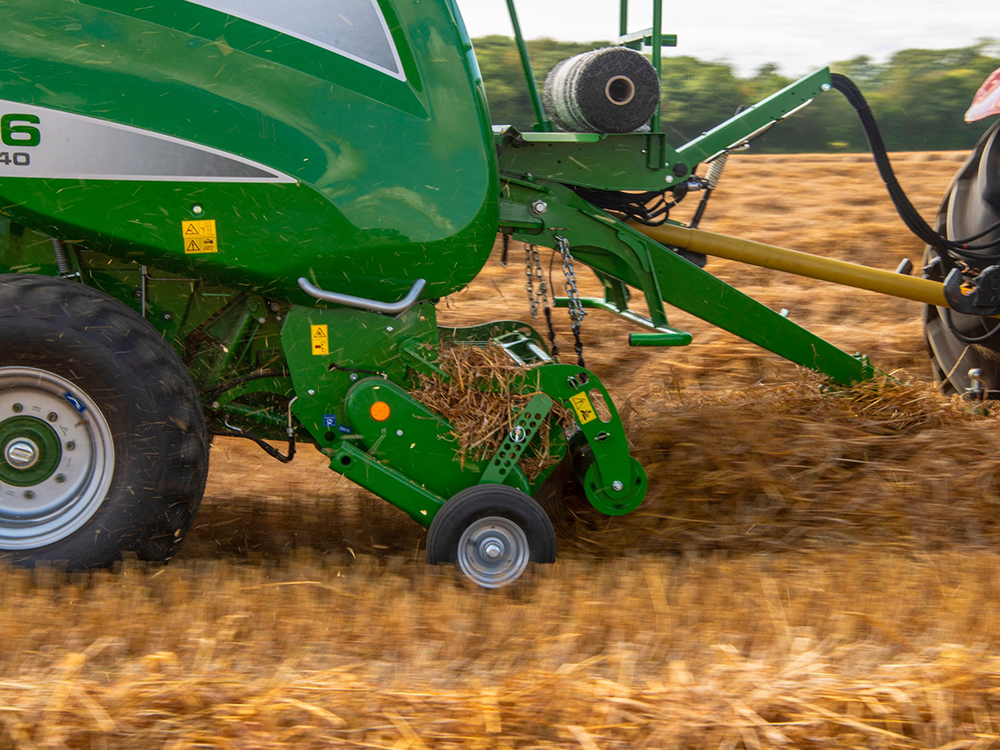

As standard, a cam operated 2.1m high-intake galvanised pick-up ensures excellent ground cleaning in all types of crop. The cam pick-up runs on a cam track that is fitted with double raced cam bearings to stand up to the most testing of conditions.
All cam pick-ups across the McHale Variable Chamber Range are fitted with 5 tine bars for excellent ground cleaning and delivery of crop to the bale chamber. A side inspection port allows the operator to quickly check and change the cam bearings if needed.
All McHale cam pick-ups have heavy-duty tine bar supports to ensure long service life. McHale have also developed a pick-up tine designed to lift even the shortest of crop
A 2.1m camless pick-up is available as an option on all machines in the McHale Variable Chamber Range. Six tine bars are fitted to all McHale camless pick-ups to provide excellent ground cleaning and fast delivery of crop to the bale chamber.
The camless pick-up has been designed to increase output, reduce levels of maintenance and perform better in certain conditions.
All camless pick-ups are fitted with a fully welded tine bar. McHale have also developed a pick-up tine designed to lift even the shortest of crop
The specially designed McHale pick-up is positioned close to the rotor to improve delivery of the crop through the rotor to the bale chamber. Large diameter lateral feed augers help direct crop to the bale chamber ensuring a consistent and even crop flow for producing high density bales.
Over the course of a baling season, machines have to work with different volumes of crop. McHale have designed an adaptive intake which allows the intake area to automatically adjust for light and heavy crops to facilitate a smooth crop flow into the chamber.

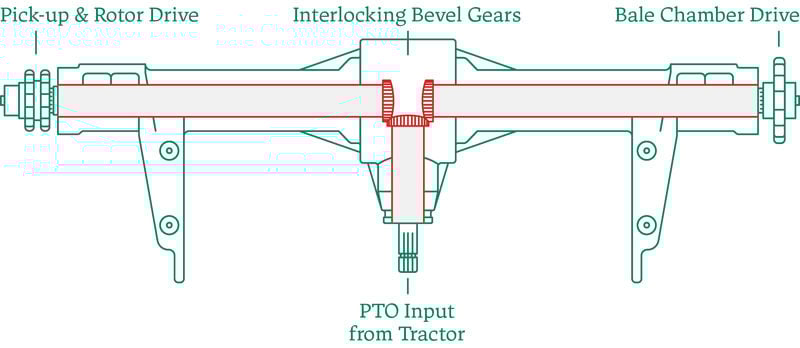

A 540 rpm Split Drive Gearbox is fitted to all machines in the McHale Variable Chamber Baler Range as standard. The gearbox design ensures that power is evenly distributed to both sides of the machine.
The rollers in the bale chamber are driven from the left-hand side of the machine and the pick-up and chopper unit are driven from the right-hand side of the machine. This system ensures direct, short transfer paths, leading to optimal power distribution.
In order to optimise machine performance, a 1000rpm gearbox is available as an optional upgrade on all machines in the McHale variable chamber baler range.We recommend you speak with your local dealer or distributor regarding which gearbox is best suited to your requirements, based on your working conditions.

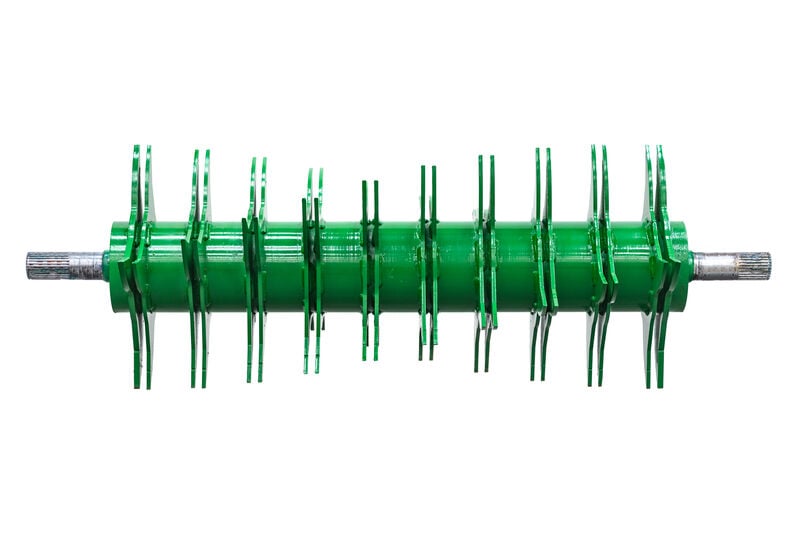

The star shaped feed rotor ensures a high-capacity flow of crop into the bale chamber. McHale have designed 3 rotors for the Variable Chamber Baler Range.
The flights on the rotor are laid out in a spiral formation to achieve consistent crop flow. As crop enters the rotor, rotating flights feeds it to the bale chamber. These ensure high output, while the star layout reduces the load peaks as the machines work in heavy swaths.
Rotor Formation | Spiral |
Flight Thickness | Inner: 8mm
Outer: 12mm |
Number of Knives | 0 |
Selectable Knives | N/A |
For over a decade, all machines in the Variable Chamber Baler range are fitted with the McHale Drop floor unblocking system, a feature which operators have come to love for it’s simplicity of use and effective unblocking cycle.
Should a blockage occur, the sound of the slip clutch alerts the operator, who can hydraulically lower the floor from the tractor cab. When operating the drop floor cycle, the knives and the drop floor drop together during the unblocking process, giving even more clearance to allow the blockage to be fed through.
This widens the feed channel at both the front and rear of the drop floor where the blockage is more likely to occur. By lowering the front and rear of the drop floor, the blockage can be fed through and effectively cleared when the PTO is re-engaged.
The floor can then be reset to its original position and baling can resume. The drop floor is equipped with a drop floor sensor to ensure the chop quality is consistent by indicating to the operator via the control box if the drop floor is open and the knives are down.

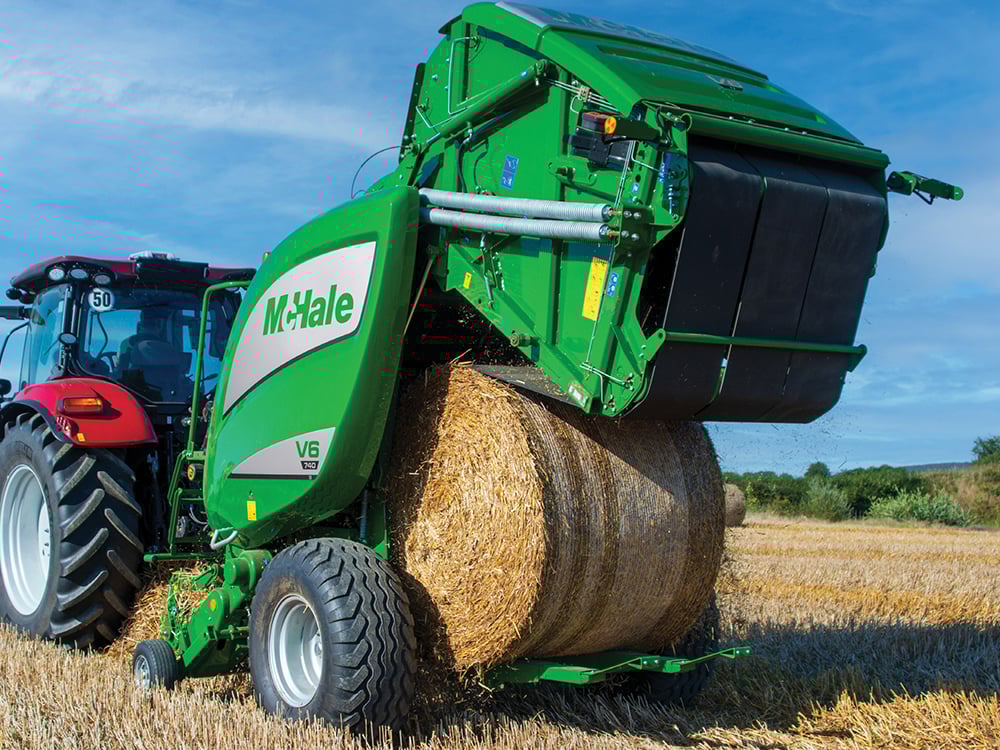

The bale chamber on the McHale variable chamber baler range is comprised of heavy-duty endless belt(s). The belts are extremely hard wearing and are reinforced with synthetic material, which ensures that the belt(s) can absorb and apply high pressure to the material in the Bale chamber.
Bale SizesThe V6740 can make a bale from 0.6m (2 ‘) to 1.68m (5 ‘6 “) |
Size IncrementsThe bale size can be adjusted up from the minimum setting in increments of 10mm (2/5″) |
Three Endless BeltsAll V6/ V8 variable chamber balers are equipped with 3 heavy duty endless belts as standard. These strong belts exert high pressure in order to form a dense bale in the chamber and are manufactured to the highest of standards using layers of synthetic and rubber material to form a durable endless belt with no joins. |
Single Belt (Optional)A single full width endless belt is also available as an optional extra on the V6740 and V6750. This full width belt reduces crop loss, particularly in alfalfa and provides better belt traction for the operator compared to multiple endless belts. |
McHale have developed a bale chamber that can quickly form the bale from the start. The operator can commence baling at full speed as the progressive density system can quickly adjust to ensure that pressure is exerted on the crop right from the core of the bale, regardless of bale size.
This is done by four heavy-duty springs that pressurise the crop at the start of the baling process. The tension placed on the crop by these large springs allows for the perfect start to the bale. The spring tension on the belts ensures easy bale formation and a properly formed core.
As the bale is forming inside the chamber, the hydraulics take over the tensioning of the belt(s) from the four large springs. Two hydraulic rams control the tension on the chamber belt(s) as the bale forms inside the chamber.
Just like the core of the bale, the outer layers are compressed at the same consistent pressure using both springs and hydraulics until the set bale density and size is reached.
A heavy-duty drive system powers belt and bale rotation on all machines in the variable chamber baler range. On the McHale V6740, a primary drive system is fitted to ensure belt rotation and bale formation.

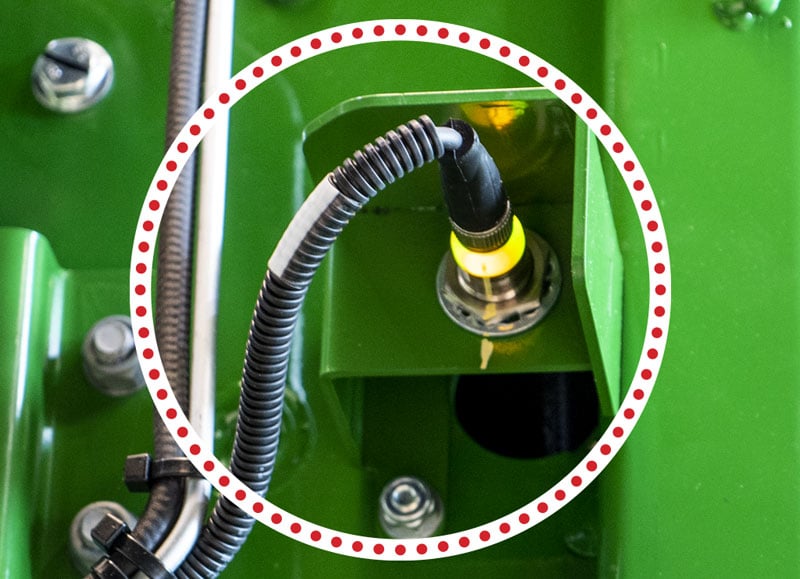

Ultra-sonic bale shape indicators are fitted to all McHale Variable Chamber Balers and indicate to the operator via the control console which side of the chamber needs to be filled.

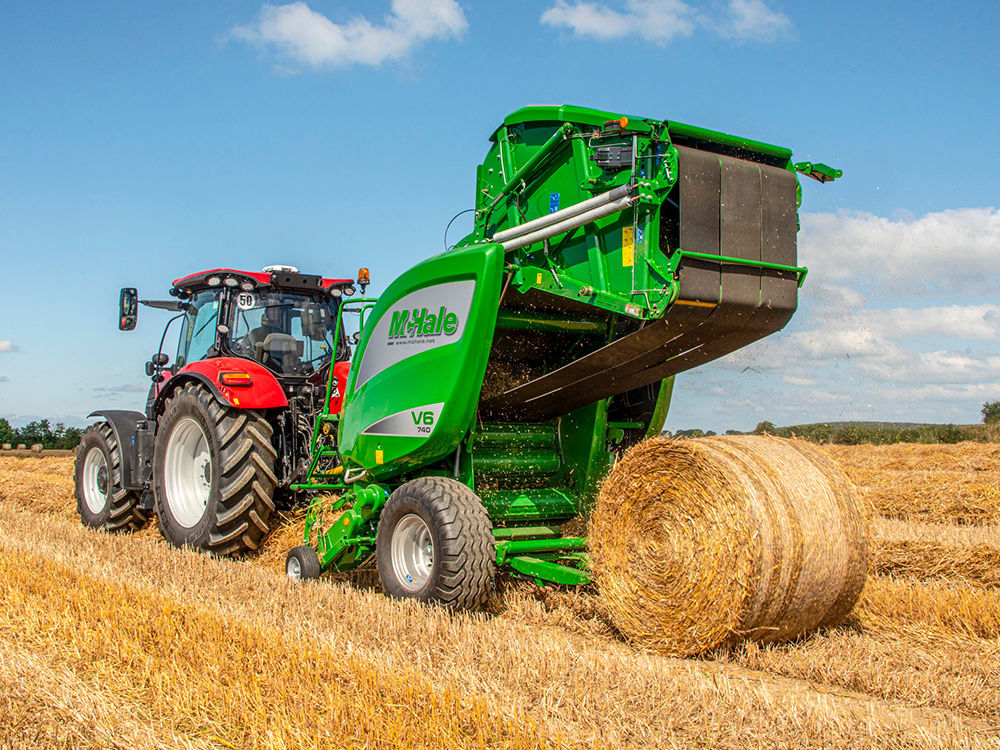

The tailgates on all McHale variable chamber balers are fitted with a pair of mechanical locks, which keep the bale chamber securely closed. These locks remain activated until, the progressive density system reaches the preset bale size and density and the required amount of net has been applied. This eliminates the need for the chamber door to rely on hydraulic pressure when making high density bales.
The McHale variable chamber baler range of balers are all fitted with a continuous oiling system. Once the PTO is engaged, the continuous oiling system constantly lubricates the chains to ensure a long lifetime. A lube alarm sounds after 300 bales to inform the operator to refill the oil tank.
The continuous oiling system on the machine is driven off the gearbox and delivers oil to the following chains:
All machines come fitted with a number of manual greasing points which are easily accessible throughout the baler either individually or through a centralised greasing block. The following bearings highlighted below are greased:
A high performance netter has been designed and developed for the McHale Variable Chamber Baler Range. This netter is very reliable and comprises of a moving roller which allows the roll of net to rotate as it is being applied to ensure even net application.
A simple yet very effective netting system comprising of a moving roller allows the roll of net to rotate as it is being applied to ensure even net application. Net is stretched around the bale using a hydraulic brake. The brake places a resistance on the speed at which the roll of net can rotate, the greater the resistance the more stretch that is applied to the net. The operator can adjust net tension without having to leave the comfort and safety of the tractor cab.

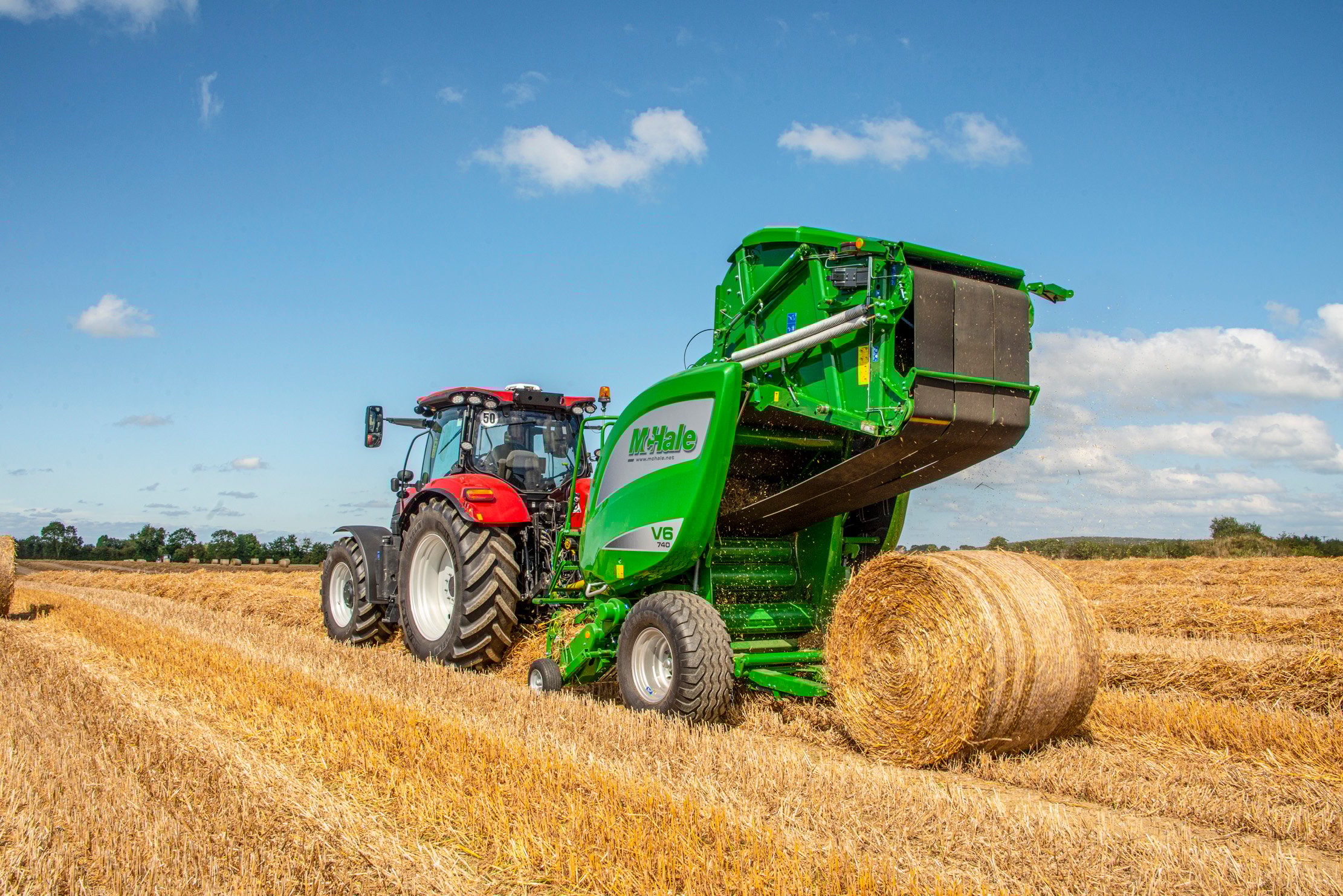

McHale V6 & V8 balers are fitted with a bale discharge sensor, which notifies the driver when the bale has left the bale chamber and has passed over the heavy-duty bale kicker ensuring a clean separation between the machine and the netted high-density bale. Storage for two extra rolls of net is also provided on the baler platform.
Endless adjustment of tension to ensure optimum bind material usage and bale shape
Capacity to take rolls of net wrap up to 1300 mm in width and 4500m in length.
180-degree wrap around on the rubber feed roller, eliminating any net or film slippage while feeding
The McHale V6740 is fitted with an Expert Plus control console, which has a large graphic display.
Core Size & Bale Size |
Core Density & Bale Density |
Revolutions of Net Being Applied |
The Expert Plus console, also gives the operator the choice of selecting a soft or hard bale core, depending on the customers feed out requirements. The control console can also store ten bale count totals so the operator can record ten different counts that may be associated with different fields or different customers
The bale diameter can be adjusted on the control console from 0.6–1.68m (2’–5’6″) on the V6740. The preset diameter setting is displayed on the bottom information block on the main screen and a live diameter reading is displayed as the bale is being formed. There is also a vertical bar graph which shows progress as the bale is being made.
A bale profile setting retains the operators personal setting choice from core diameter, bale diameter, core density, bale density, net layers and net stretch for use in different crops. There are 5 bale profile settings to choose from. Each profile will retain its own individual settings so that the machine can easily be changed to work in different crops without needing to change a lot of settings.
The variable chamber baler range is fitted with bale shape assist indicators, which indicate to the driver via the control console, which side of the chamber needs to be filled. The bale shape assist indicators ensure that when the machine works in a light swath
that the best bale shape is achieved. The bale shape indicator arrows are also accompanied by a series of beeps so the operator does not need to watch the screen. A low tone is emitted when the operator needs to steer left and a higher tone for when the operator needs to steer right.
McHale machines work in different conditions around the world. To optimise performance, we offer a number of options in the McHale variable chamber range. We recommend you speak with your local dealer/distributor as regards the best configuration to meet your requirements
Options V6740
Camless Pick-Up | Optional |
1000rpm Gearbox | Optional |
Single Belt | Optional |
Tyre Options | 500 /50 /22.5
560 / 45 / 22.5 |
Brakes | Hydraulic -Optional
Air- Optional |
Camless Pick-Up
The 2.1m camless pick-up runs smoothly, particularly in short crop, and requires less maintenance due to a reduced number of rotating parts. All camless pick-ups in the McHale variable chamber baler range are fitted with six tine bars and a double crop roller to provide excellent ground cleaning and fast delivery of crop to the rotor.
1000rpm Gearbox
McHale machines work in different conditions around the world so in order to optimise machine performance, a 1000rpm gearbox is available as an optional upgrade on all machines in the McHale baler range.
Single Belt
A single, full width, endless belt exerts a high pressure on the crop in order to form a dense bale in the chamber. Heavy-duty belts are manufactured to the highest of standards using layers of synthetic and rubber material to form a durable endless belt with no joins. This full width belt reduces crop loss, particularly in alfalfa and provides better belt traction for the operator compared to multiple endless belts.
Tyre Options
McHale offer a number of tyre upgrades depending on customer preferences and ground conditions.
Brakes
All balers in the McHale V6 variable chamber baler range can be equipped with brakes as an optional extra. McHale offer the choice of hydraulic or air brakes. All McHale Fusion Vario machines come fitted with hydraulic brakes as standard but can be specified with air brakes as an optional extra.
Read lessWatch the video for the McHale V6740 non-chopper variable chamber baler capable of producing bales from 0.6–1.68m (2’–5’6″).
Tune into the second of our three part series to find out how McHale experts setup and adjust their machines to save money and obtain maximum efficiency and output.
To view the subtitles in your preferred language, please click on the settings icon in the bottom right hand corner of the video and select the required language.
Length | 5.1m (16’ 9”)* |
Width | 2.54m / 2.58m
(8’ 4” / 8’ 6”)* |
Height | 2.75m (9’) |
Weight | 4430kg
(9,766 lbs)* |
* Value will vary depending on specification |
Working Width | 2100mm (6’ 11”) |
Tine Bars | 5
(6 on Camless Pick-up) |
Tine Spacing | 67mm (2⅝”)
55mm camless (2⅛”) |
Crop Roller | Option |
Pick Up Guide Wheels (pneumatic) | Standard |
Number of Knives | 0 |
Theoretical Chop Length | N/A |
Knife Protection | N/A |
Knife Deactivation | N/A |
Unblocking System | Drop Floor |
Diameter | 0.6 m (2’) to 1.68 m (5’ 6”) |
Width | 1.23m (4’) |
Bale Chamber Feed | High Intake Feed Rotor |
Number of Belts | 3 |
Binding Material |
Net |
Control | Manual or Automatic |
Binding System | High Performance Netter |
Bind Roll Capacity | 1 + 2 Storage |
Bind Adjustment | In Cab |
Gearbox | Split Drive |
Main Drive Protection | Cam Clutch |
Pick-Up Protection | Slip Clutch |
Chain Lubrication | Continuous |
Bale Chamber | Primary Drive |
Control System | Expert Plus |
Operation | Semi Automatic |
Density Adjustment | In Cab |
Bale Size Adjustment | In Cab |
Camera | Optional |
Axle | 8 Stud |
Brakes | Option: Air / Hydraulic |
Tyres Standard | 460/65/20 |
Tyres Optional | 500/50/22.5 or 560/45/22.5 |
Bale Kicker | Standard |
Side Tip | N/A |
Road Lights | Standard |
Minimum Hydraulic Flow | 30 l/min @180 bar |
Hydraulic System | 2 double acting spools, 1 free flow return |
Electronics | 12 Volt DC, 20 amp |
Minimum PTO Requirements | 55 kW (73hp) |
