R 68-78 Centre Delivery Rake

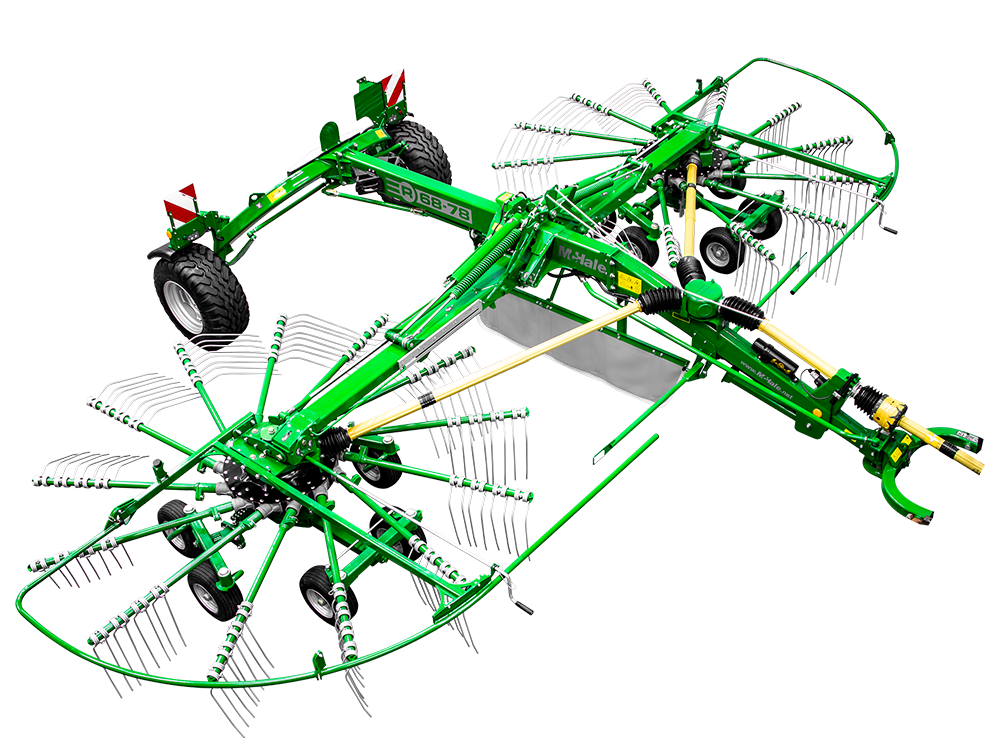

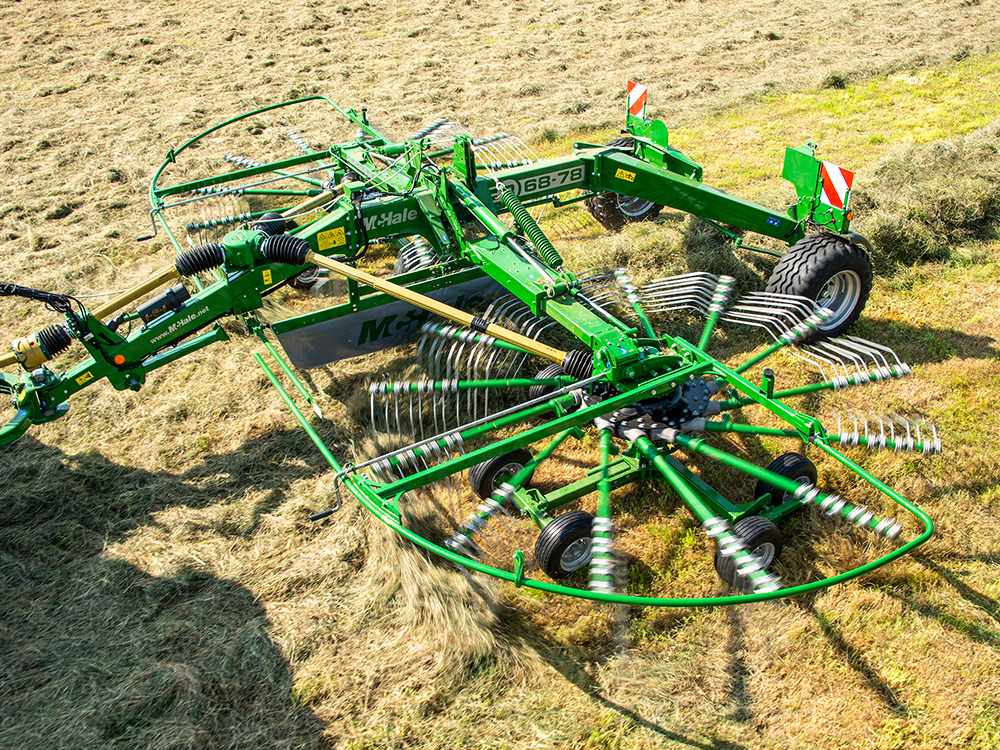

Building on their comprehensive range of grass machinery, McHale now introduce their R 68-78 centre delivery rake.

McHale rakes have been tested in the world’s most difficult conditions, in order to deliver a strong and robust machine, which is efficient and reliable in all terrain. The McHale R 68-78 rake is an ideal machine for those who want to get the best quality fodder, by delivering an aerated swath. The R 68-78 delivers an ideal swath for maximum baling and harvesting output.

Download Product PDF

Overview

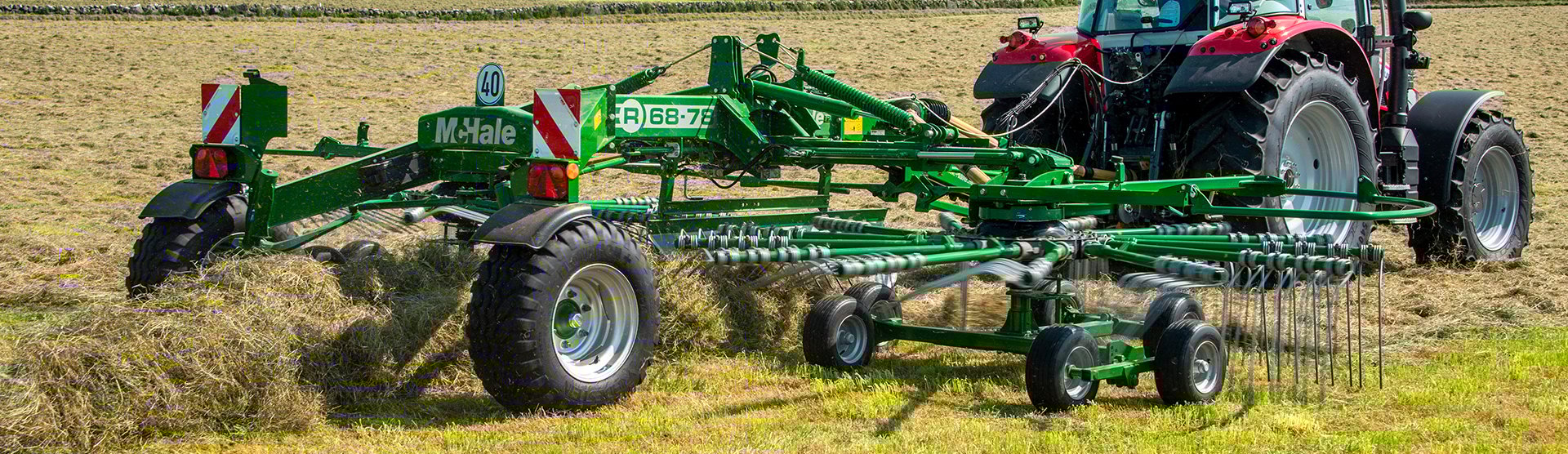

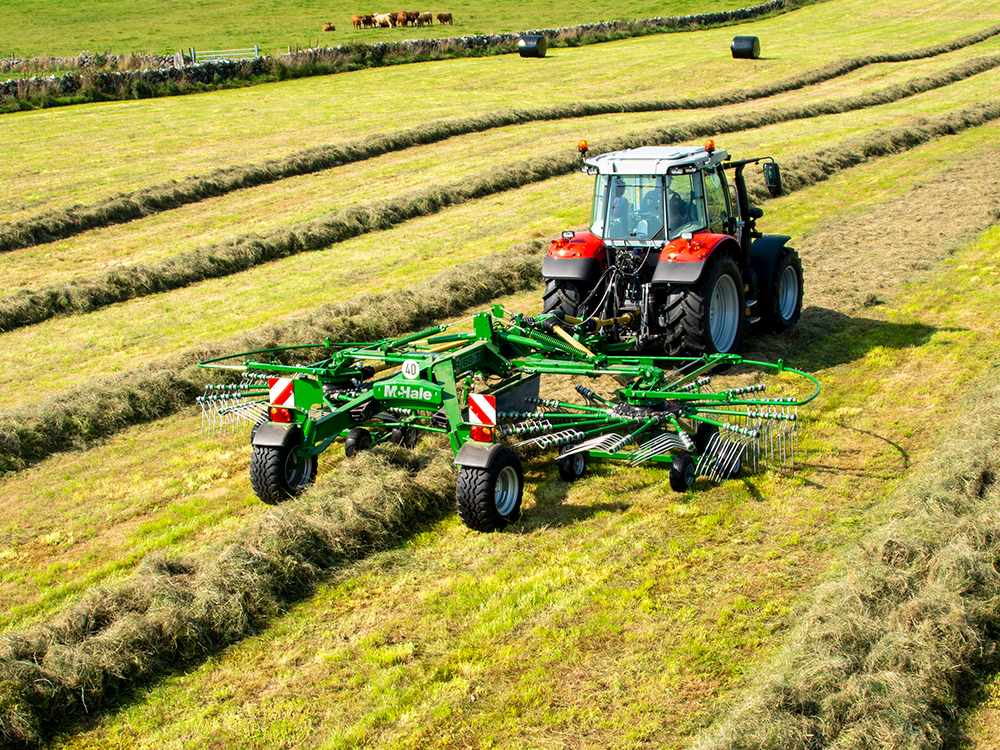

The McHale R 68-78 can be used to combine multiple mower rows or to row up grass, which is left on the flat. McHale centre delivery rakes are powerful but gentle on the crop, delivering the perfect swath preparation. The rotors on the McHale centre delivery rakes are suspended centrally and both rotors operate at equal ground pressure across the adjustable working width to deliver the perfect swath.


Standard Features:

McHale Heavy Duty Design Incab Width Adjustment Steering Axle
380/55 – 17 tyres Pivoting Headstock Heavy Duty Wide Angle Driveline
Tine Arm Cam Adjustment High Speed Running Gear Rotor Height Adjustment Indicators
Transport Height under 4m



Features

McHale Heavy Duty Design

Features

McHale Heavy Duty Design

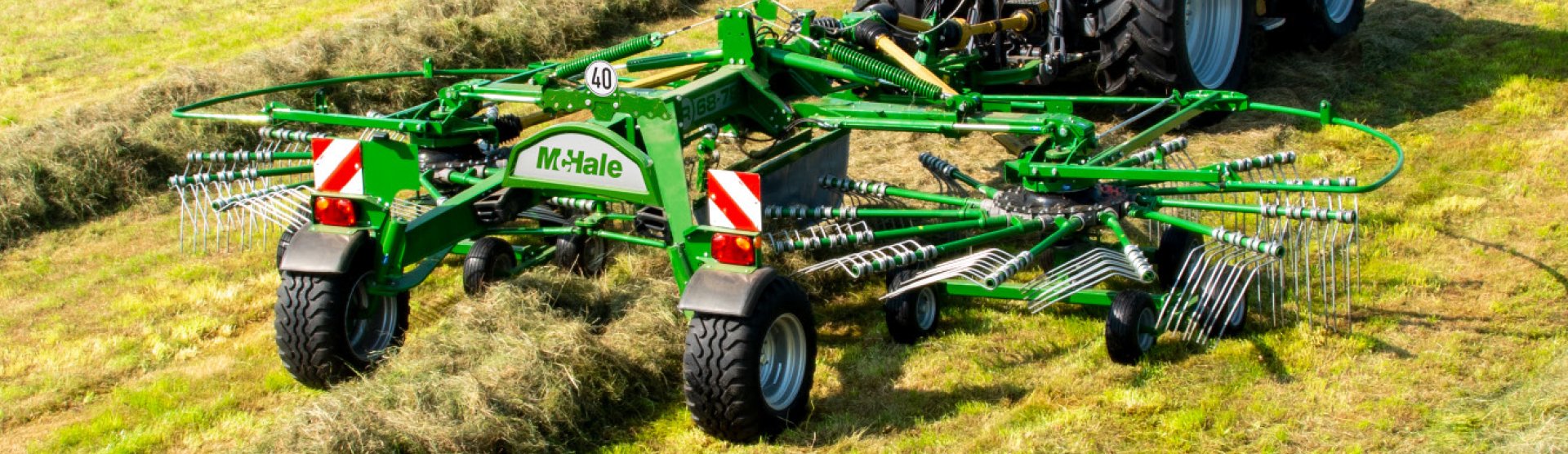

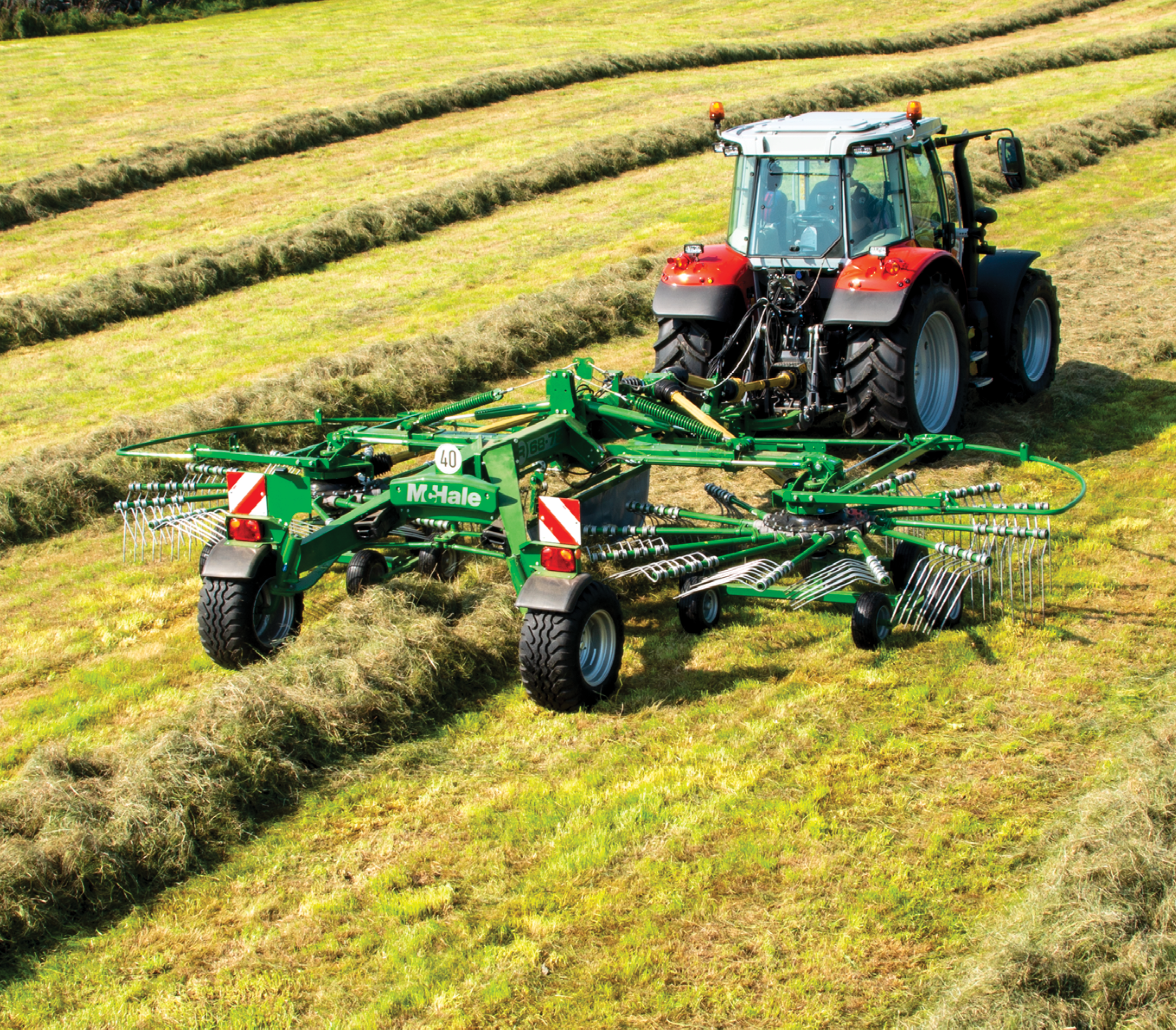

Through innovative design McHale has delivered a high quality heavy duty range of rakes. McHale rakes have been tested in the world’s most difficult conditions, in order to deliver a strong and robust machine, which is efficient and reliable in all terrain.

Features

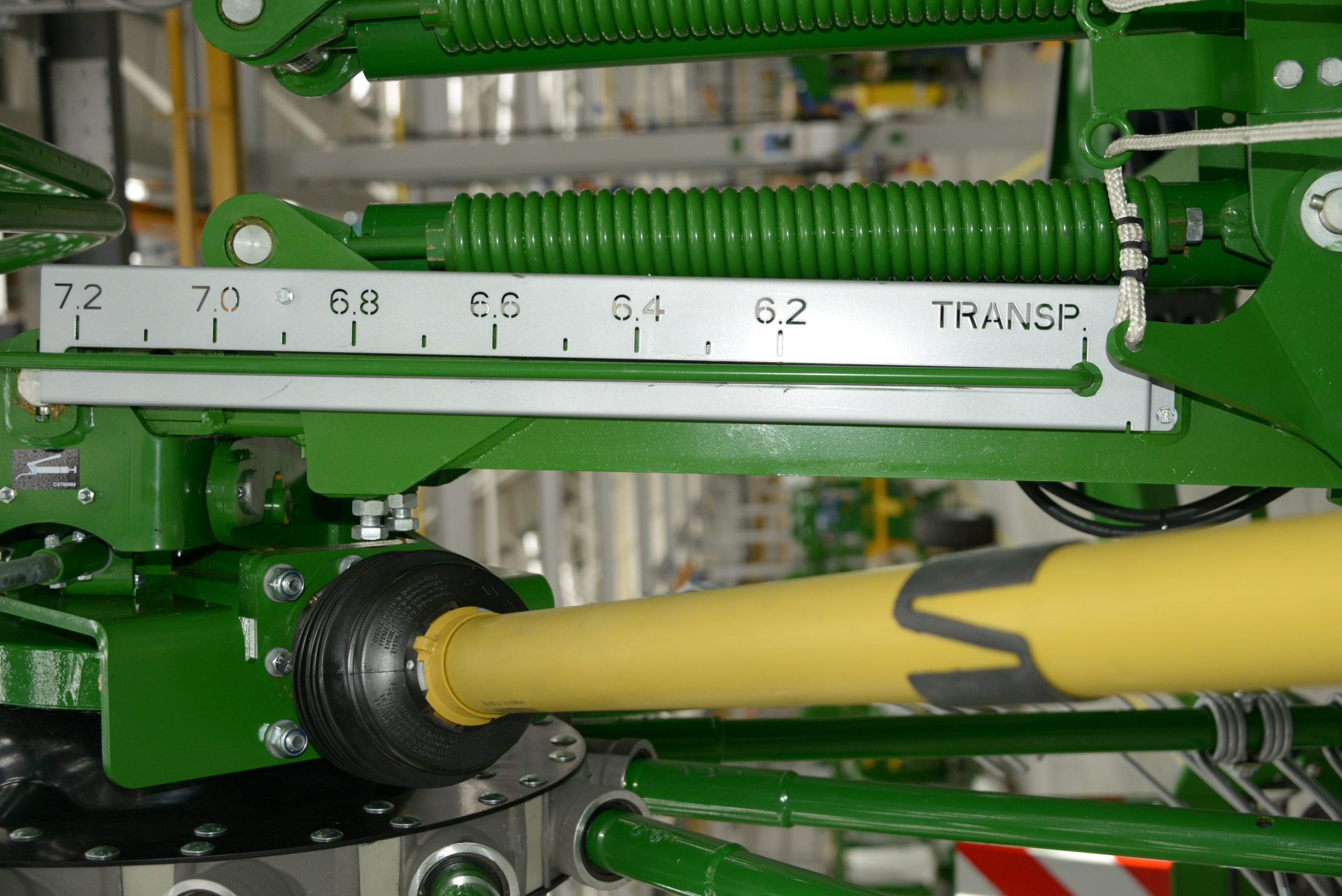

Incab Width Adjustment

Features

Incab Width Adjustment

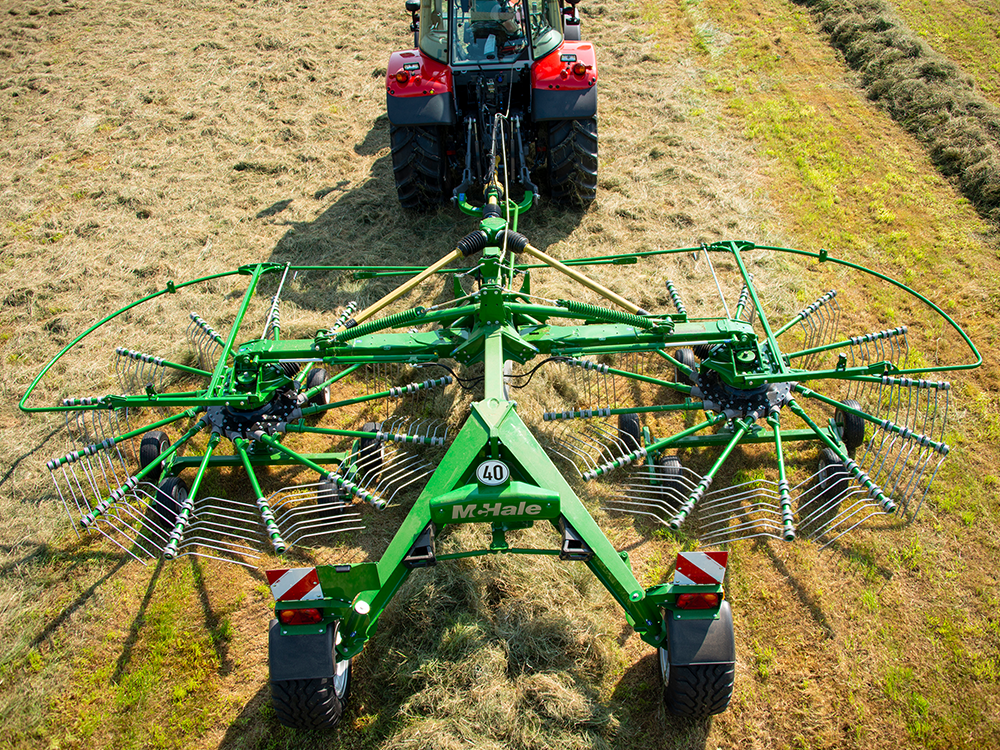

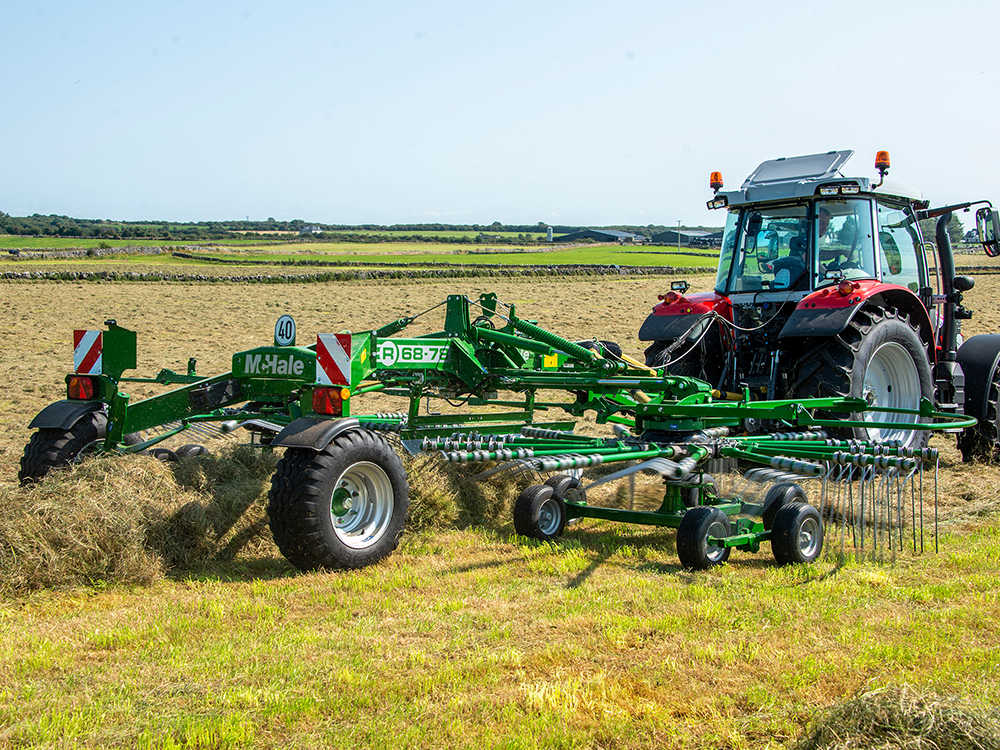

The McHale R 68-78 twin-rotor centre delivery rake offers a number of different working widths from 6.8 to 7.8 metres. The variable working width is adjusted hydraulically from the tractor seat.

Features

Low Maintenance Steering System

Features

Low Maintenance Steering System

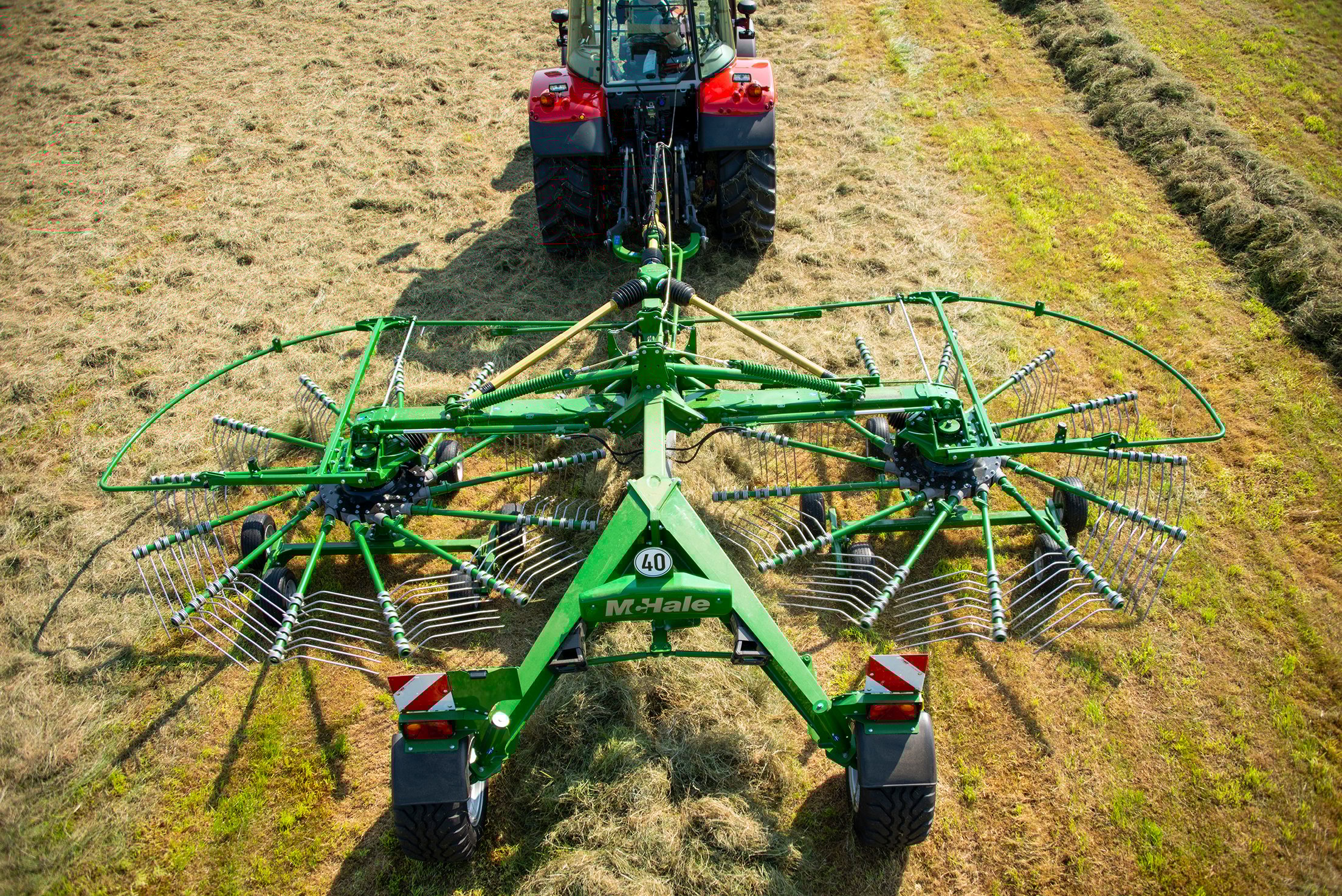

McHale rakes feature a simple and low maintenance steering system to master even the tightest of turns and give excellent road stability.

Features

Wide 380/55 - 17 tyres

Features

Wide 380/55 - 17 tyres

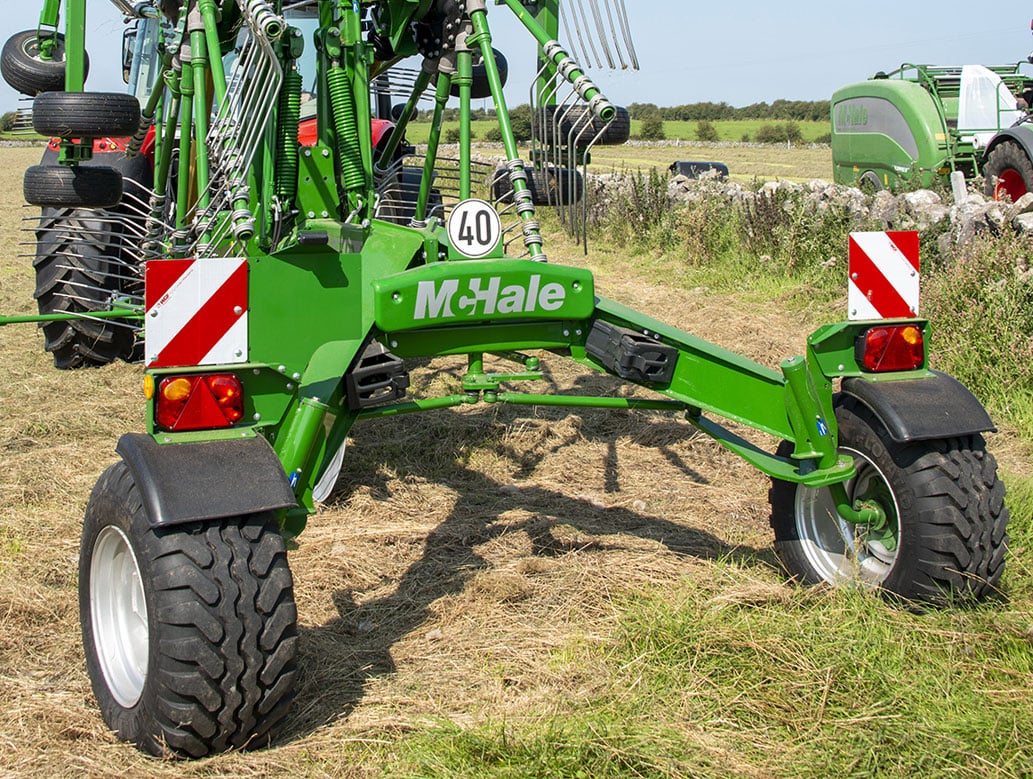

McHale rakes are equipped as standard with wide tyres to give excellent stability on the road and minimise compaction in the field.

Features

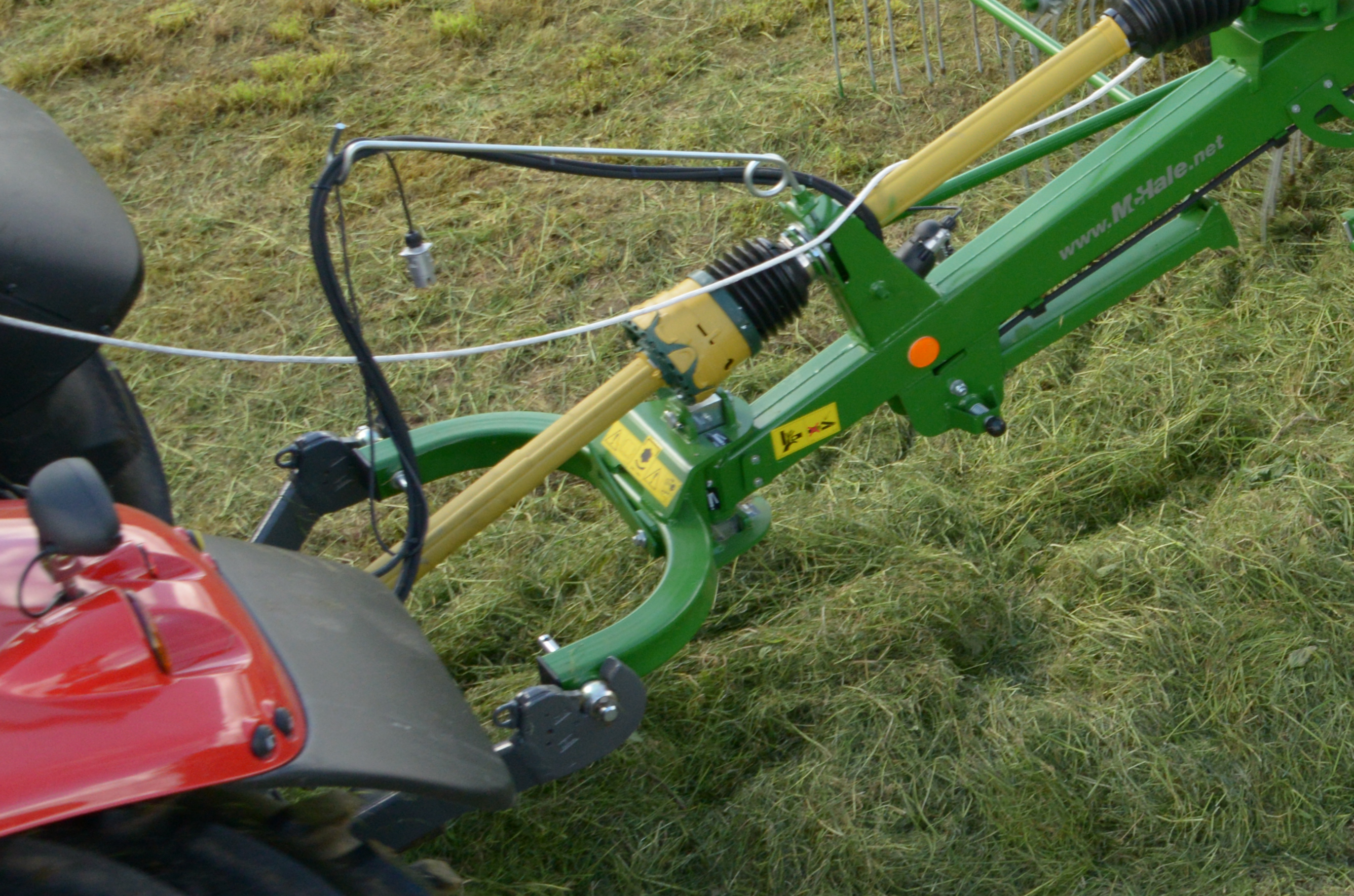

Pivoting Headstock

Features

Pivoting Headstock

The pivoting headstock of the McHale rake couples into the 2 point linkage arms. The rake is designed to deliver a tight turning movement and high work rates.

Features

Wide Angle Gearbox

Features

Wide Angle Gearbox

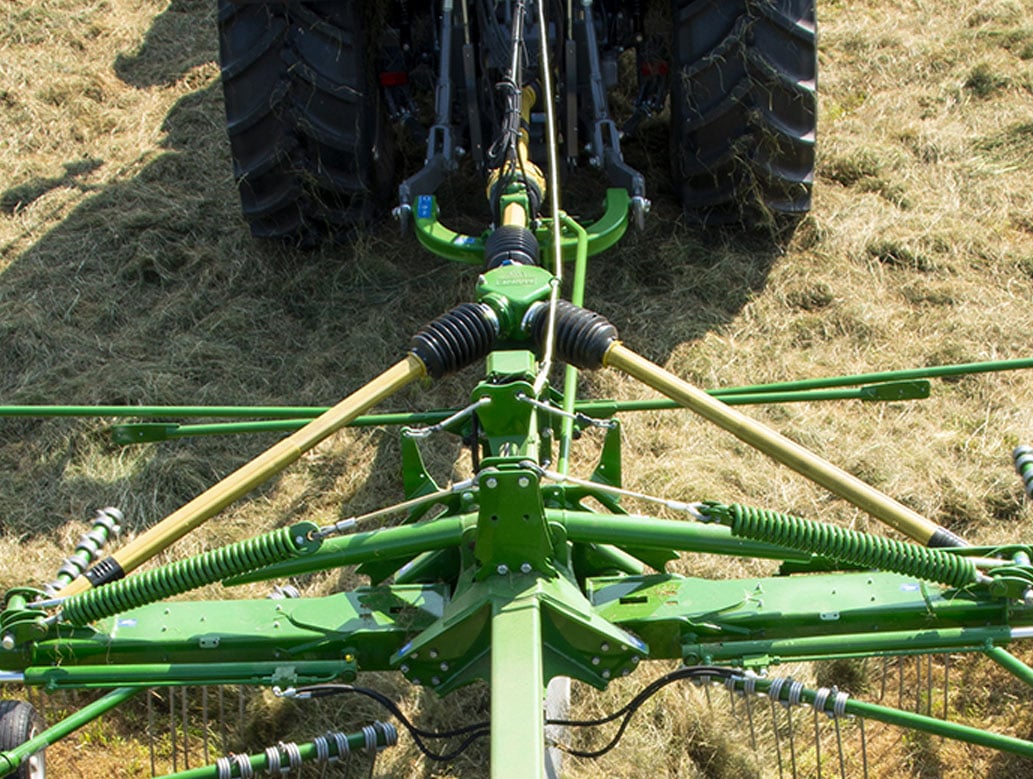

The drive power flows through a wide angle gearbox to the individual rotors.

Features

Tine Arm Cam Adjustment

Features

Tine Arm Cam Adjustment

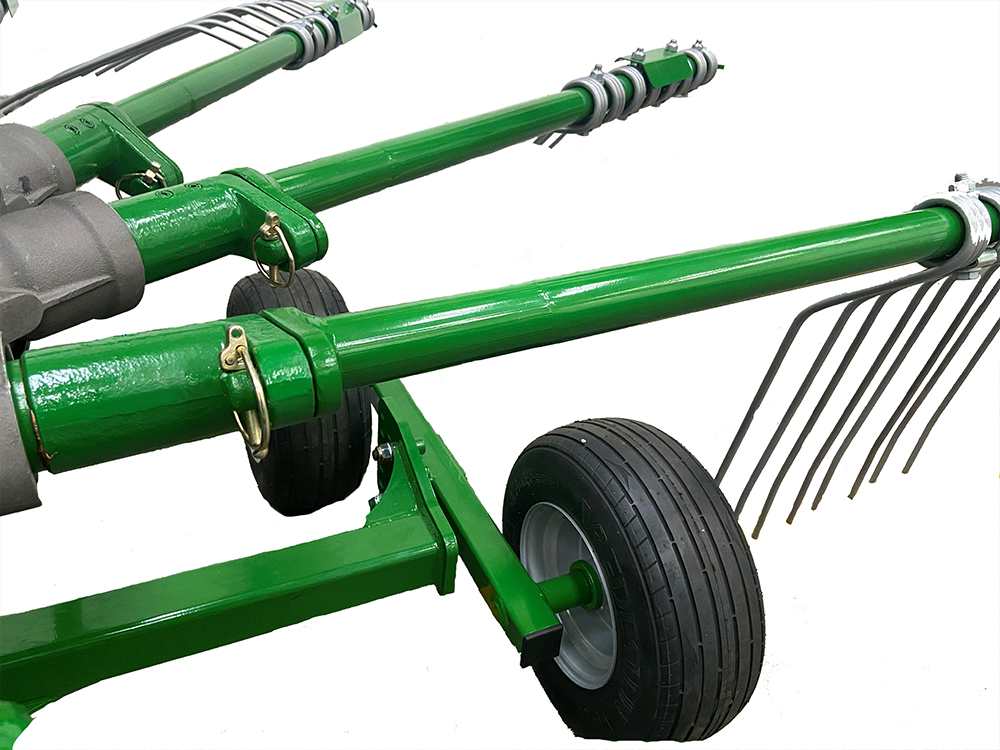

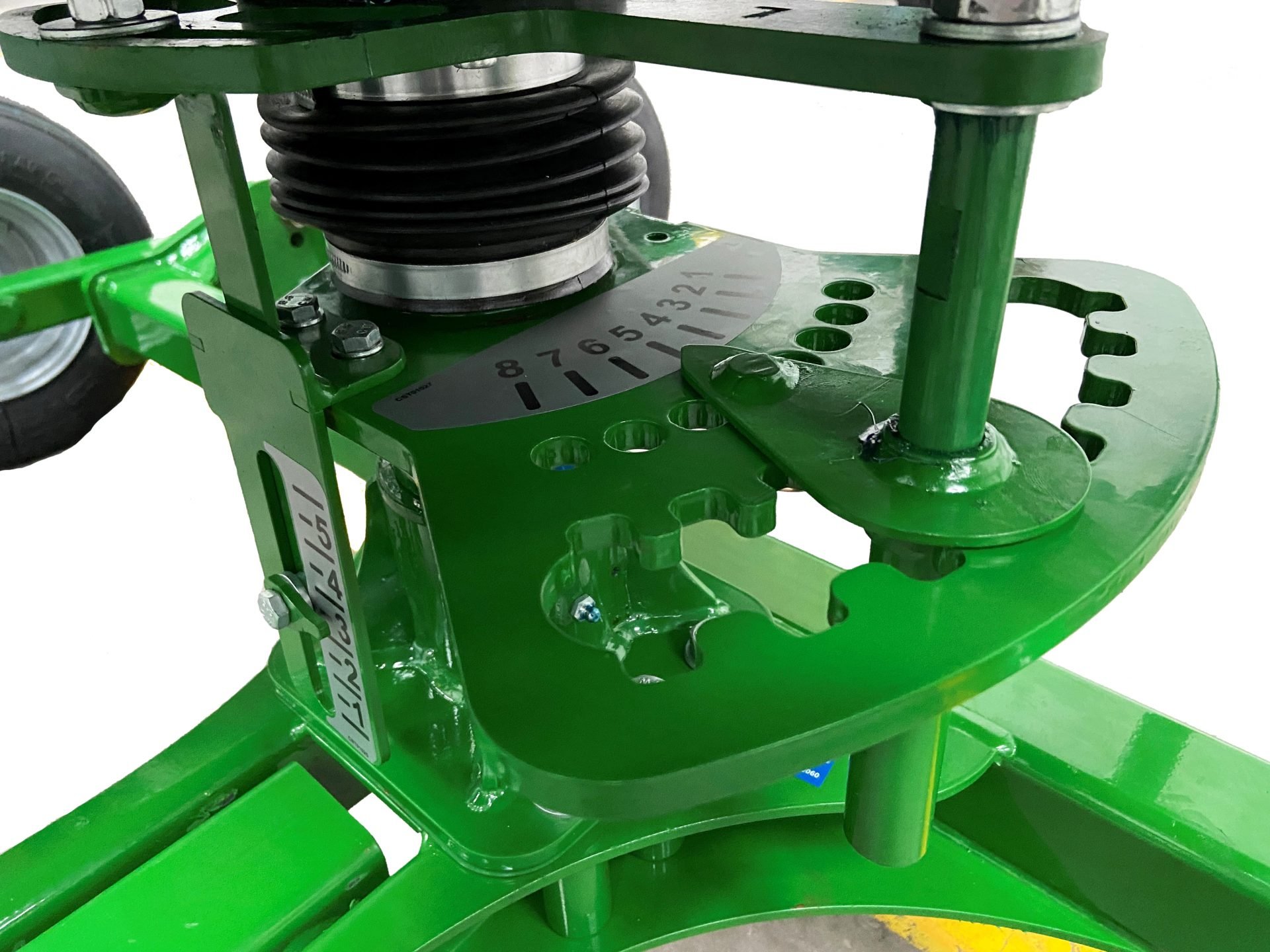

Both rotors are fitted with a Tine Arm Cam Adjustment to allow the speed at which the crop is distributed to the row to be adjusted. The cam on the tine arms can be adjusted simply to cater for all working widths and crops.

Features

Steering & Headland Clearance

Features

Steering & Headland Clearance

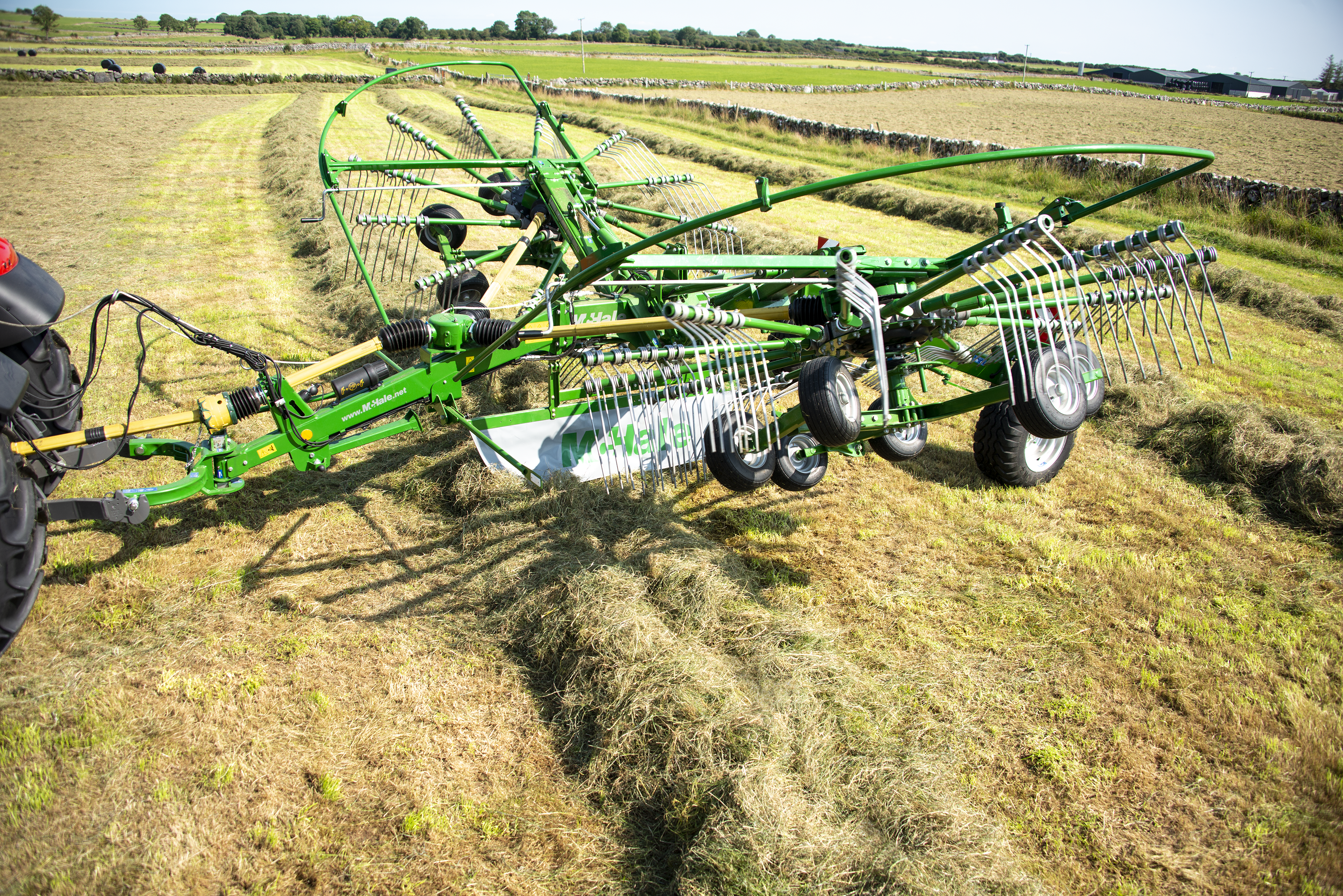

The R 68-78 is designed to deliver a tight turning movement and high output. The low-maintenance steering system is effective in even the tightest turns.

Read more
Features

Rotors & Tines

Features

Rotors & Tines

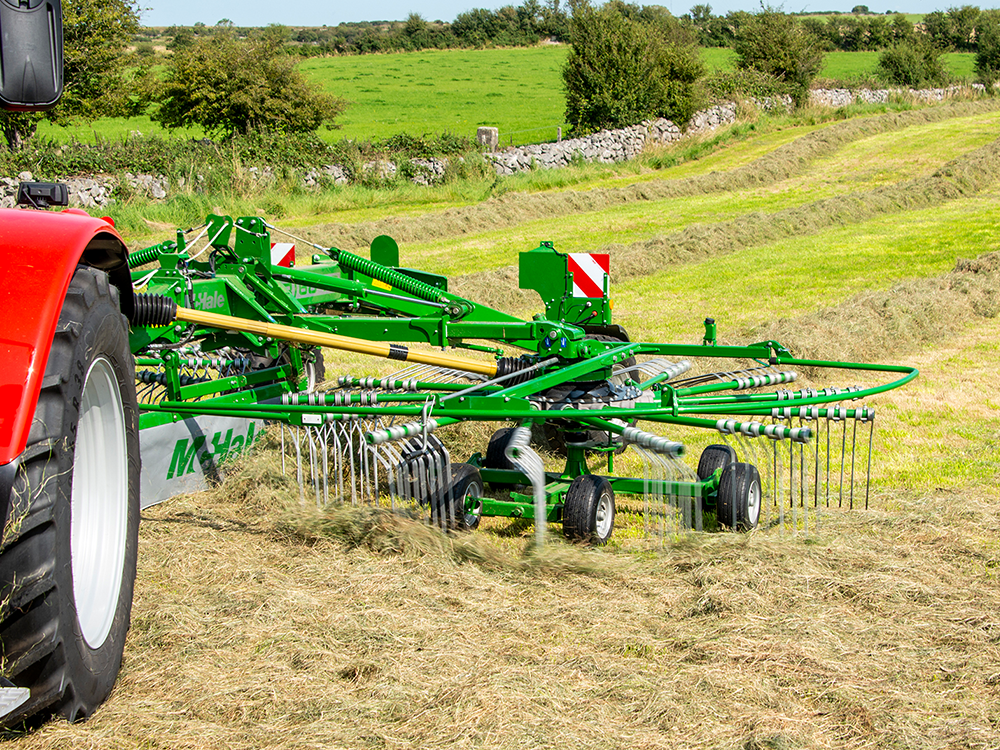

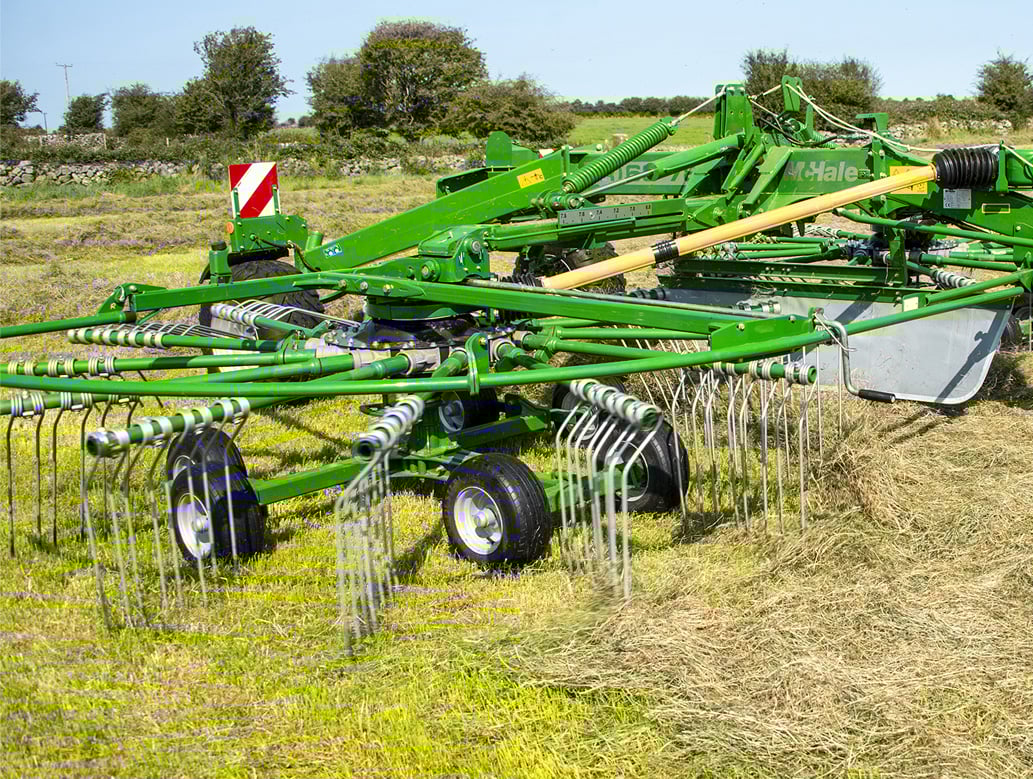

The tines on each tine arm guarantee the cleanest sweep, delivering uncontaminated fodder into the aerated swath. The tine cam adjustment, allows the operator to adjust when the tines release the crop.

Features

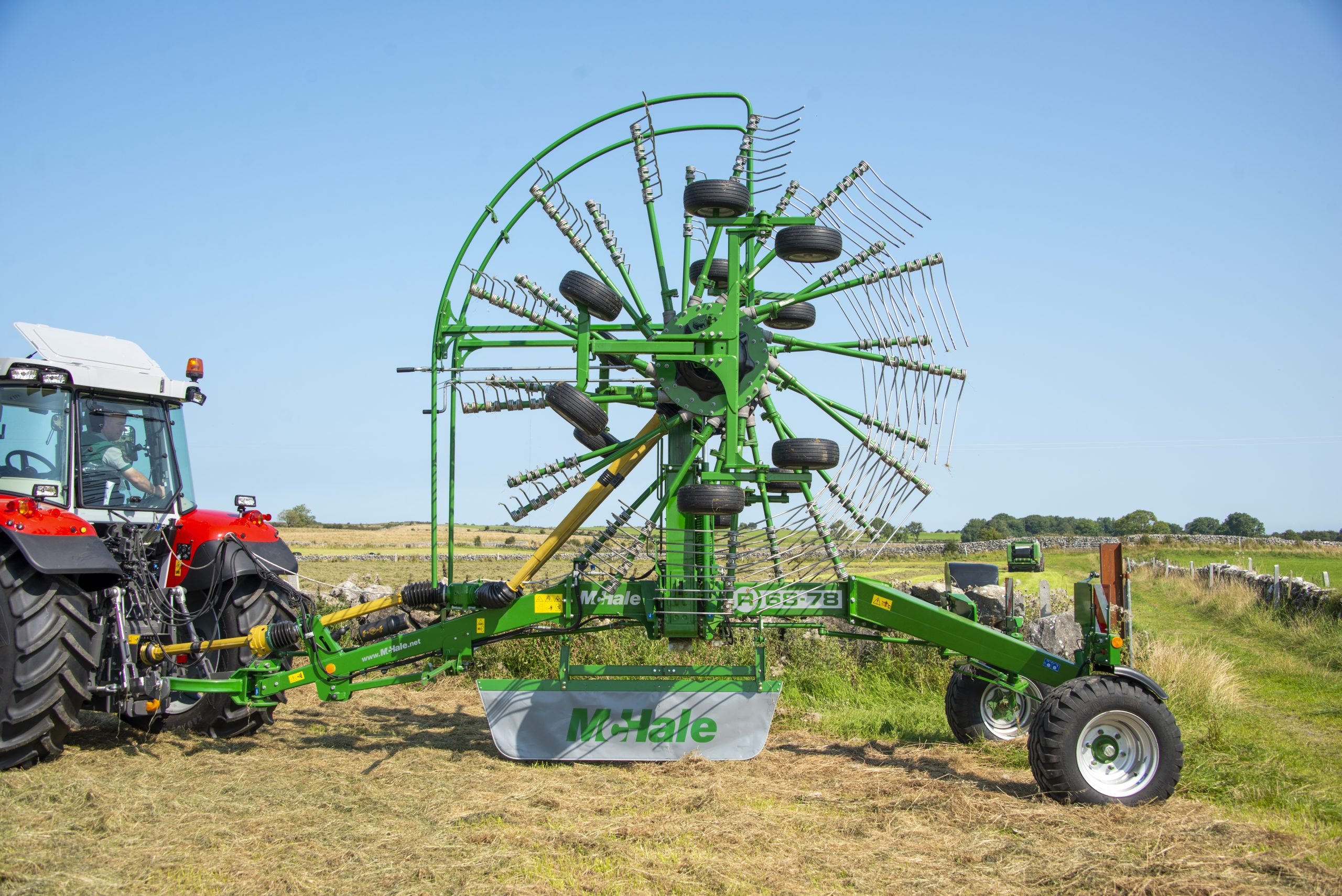

Transport

Features

Transport

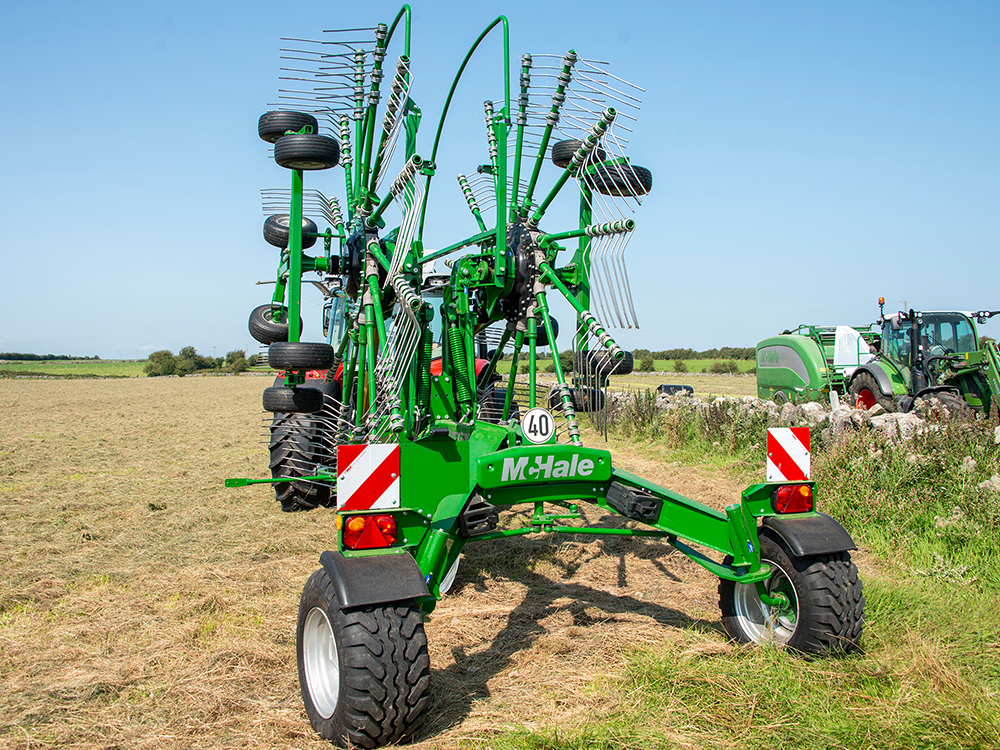

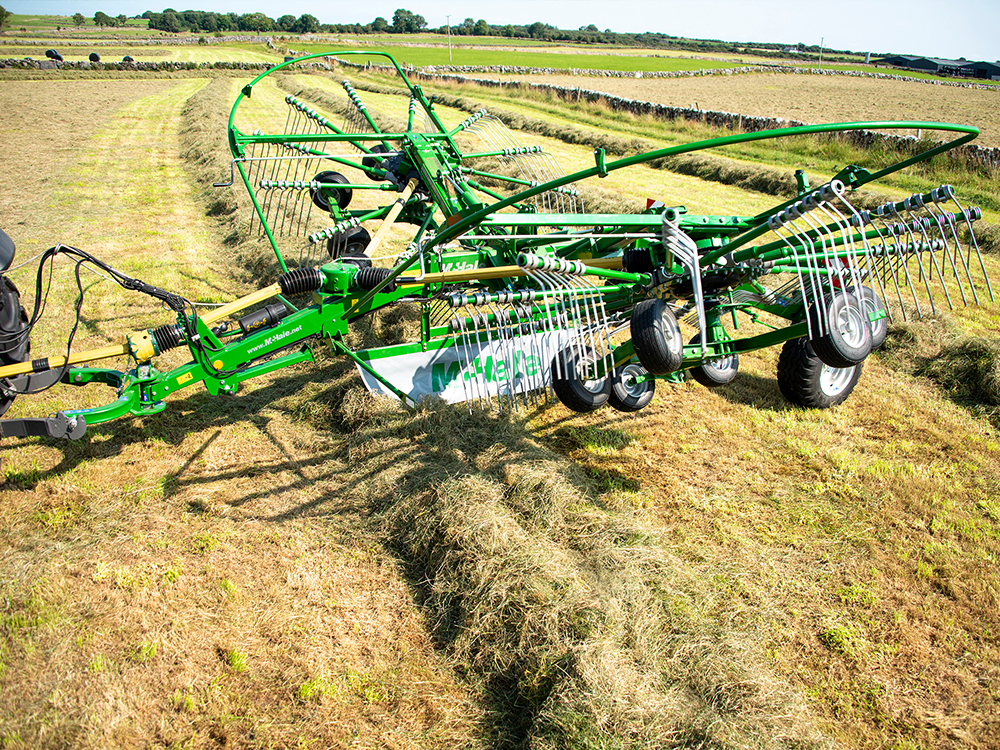

For transport, when the rotors are folded up, they move down into a locking position, which delivers a transport height under 4 metres. As a result, tine arms do not need to be removed for transport.

Read more

    McHale R 68-78 Centre Delivery Rake Videos

    The McHale R 68-78 can be used to combine multiple mower rows or to row up grass, which is left on the flat. McHale centre delivery rakes are powerful but gentle on the crop, delivering the perfect swath preparation. The rotors on the McHale centre delivery rakes are suspended centrally and both rotors operate at equal ground pressure across the adjustable working width to deliver the perfect swath.

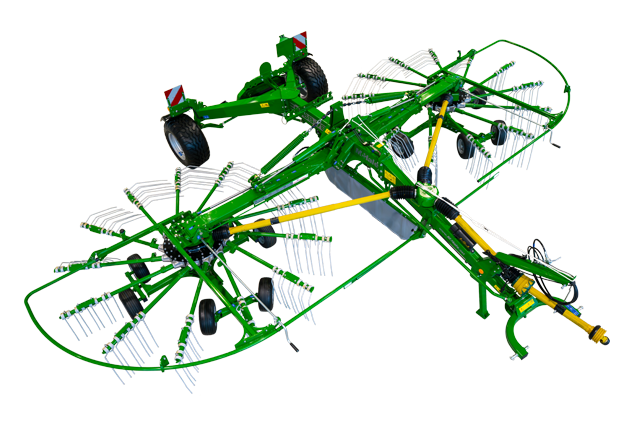

      Technical Specification

      3 Metre Swath Gathering 3 Swaths
      Mounting Type 2 Point Linkage
      Mounting Category Cat I & Cat II
      Incab Adjustable Working Width (m/ ft) 6.8m – 7.8m (22’ 4” – 25’ 7”)
      Number of Rotors & Rotor Wheels 2 rotors / 6 wheels per rotor
      Rotor Diameter (m/ ft) 3.2 m ( 10’ 6”)
      Number of Arms 13
      Number of Tines Per Arm 4
      Tine Diameter (mm) 10mm / 3 Coil
      PTO Shaft Speed (rpm) 540 RPM
      PTO Driveline Y Gearbox
      Hydraulic Requirements 1 x Single Acting &1 x Double Acting
      Main Greasing Grease Nipples
      Axle & Wheels 6 stud – 380/55/17
      Transport Width 2.84 m (9’ 4”)
      Transport Height 3.99 m (13’ 1”)
      Length 6.05 m (19’ 8”)
      Weight 2100 kg (4630 lbs)
      Options

      Adapted for Multipurpose

      The McHale R 68-78 twin-rotor centre delivery rake offers a number of different working widths from 6.8 to 7.8 metres. The variable working width is adjusted hydraulically from the tractor seat.

      Learn more
