ProPel M6-770 Tedder

McHale ProPel M6-770 Tedder

McHale have developed a reputation for providing high-output machinery with excellent reliability, operator comfort and a top resale value. Building on their comprehensive range of grass machinery, McHale now introduce their new range of ProPel tedders.

Download Product PDF

Overview

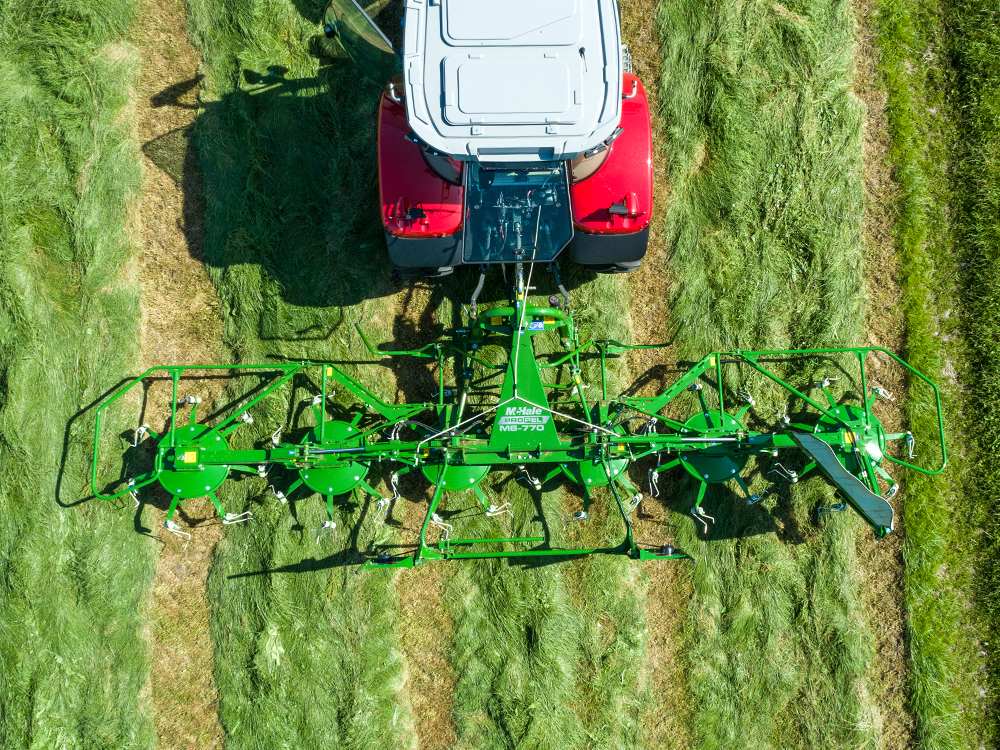

The McHale PROPEL M6-770 is an easily maneuvered, 6-rotor, linkage tedder with a working width of 7.7M. Superb ground contouring and stability on the most uneven terrain provides effective tedding throughout the crop. 7 double-hooked tines on each rotor grip the crop to clean the ground before spreading it evenly, high and far behind the machine to obtain the best drying possible.




Standard Features:

WORKING WIDTH
7.7m(25′ 3″)
NO. OF ROTORS
6
ROTOR DIAMETER
1.58m (62″)
TINE ARMS PER ROTOR
7
POWER REQUIREMENT
45 kW (60 HP)
ATTACHMENT
3 Point Linkage (CAT II)






Features

Headstock

Features

Headstock

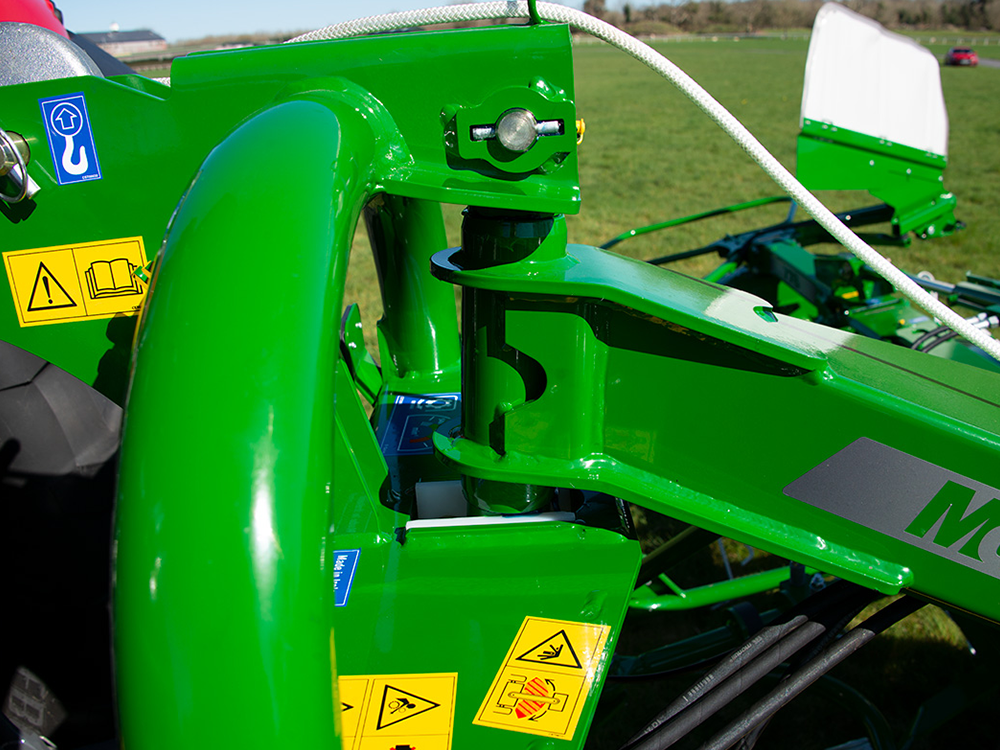

The McHale ProPel range of tedders are equipped with a headstock designed for strength and maneuverability. A central pivoting point on the McHale ProPel M6-770 connects the headstock to the chassis which ensures an effective re-centring on slopes and reduces the machine overhang. The pivoting of the machine behind the headstock also allows for easy maneuverability and increased stability when in transport and field operation.

Features

Driveline

Features

Driveline

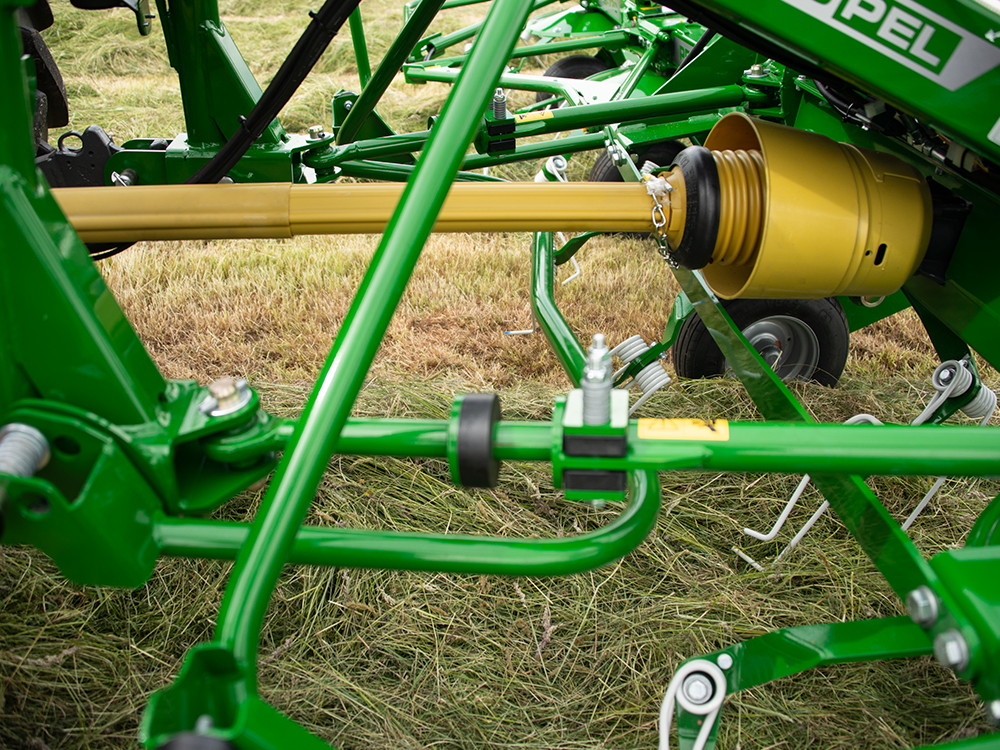

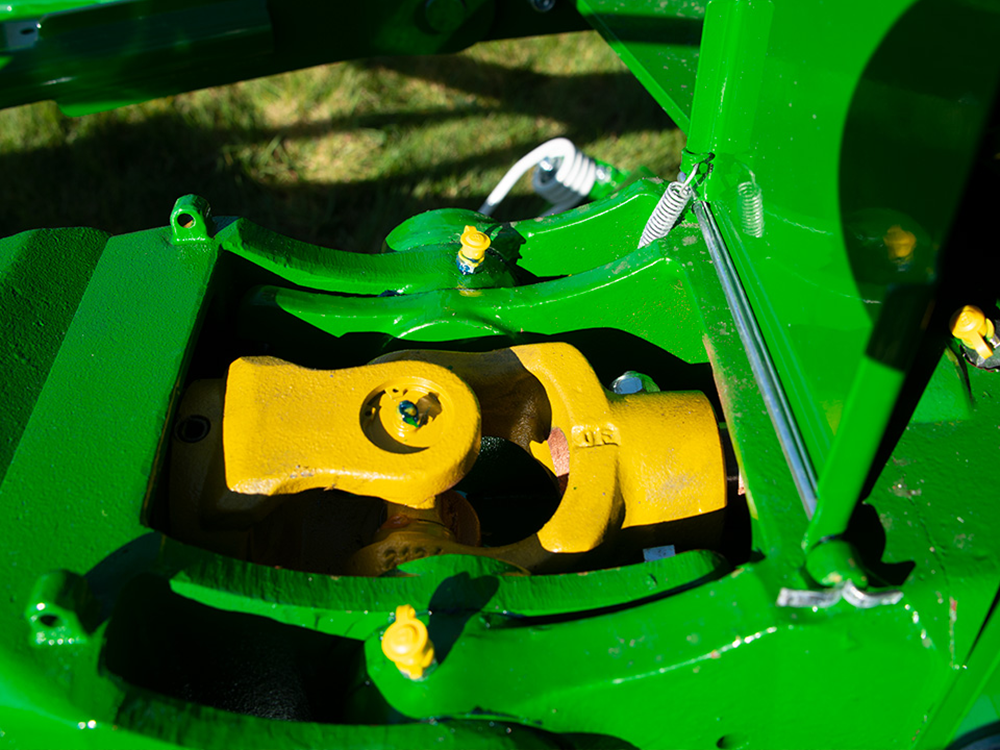

A heavy-duty driveline is fitted as standard to all machines in the McHale ProPel Tedder range.

Read more
Features

Rotors

Features

Rotors

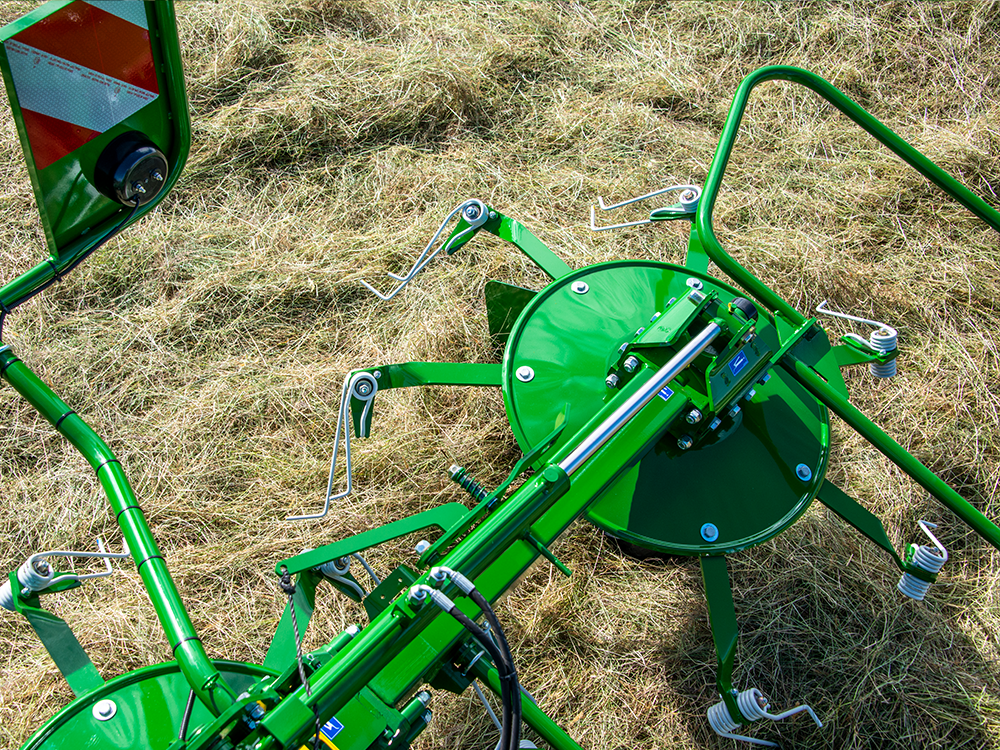

1.54m (61”) diameter rotors are fitted to all McHale tedders. Each rotor is equipped with 7 tine arms that all support a double hooked tine for the clean, even lift and distribution of crop.

Read more
Features

Tines

Features

Tines

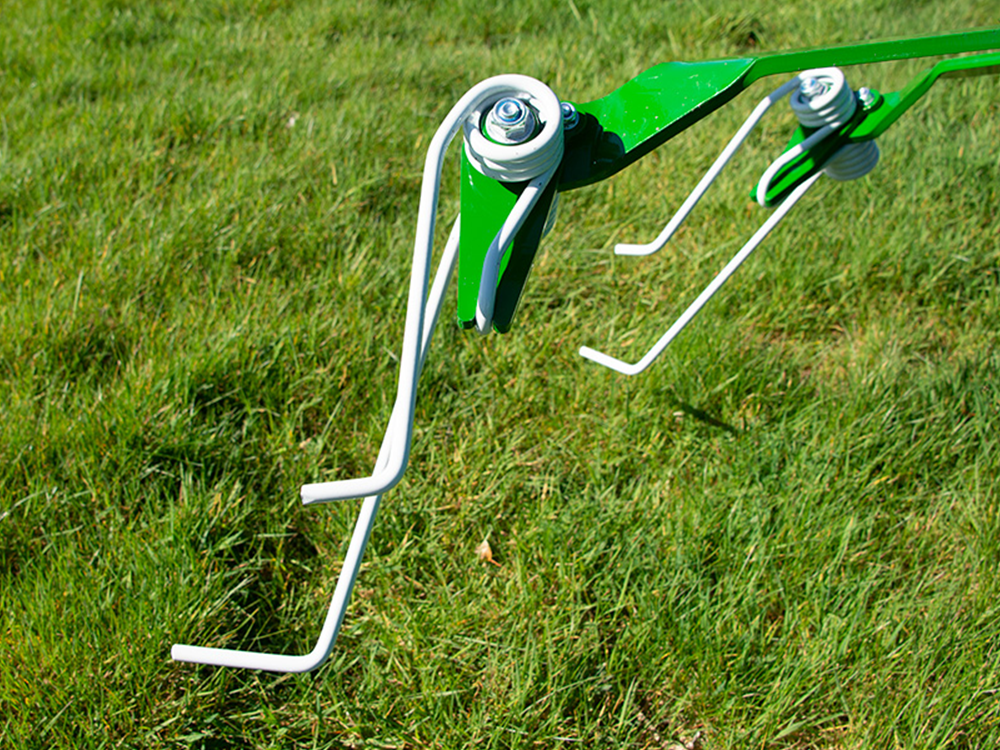

All tedders in the McHale ProPel Tedder range are equipped with a double hook tine to ensure all crop is cleanly lifted to provide a large and even spread.

Read more
Features

Chassis

Features

Chassis

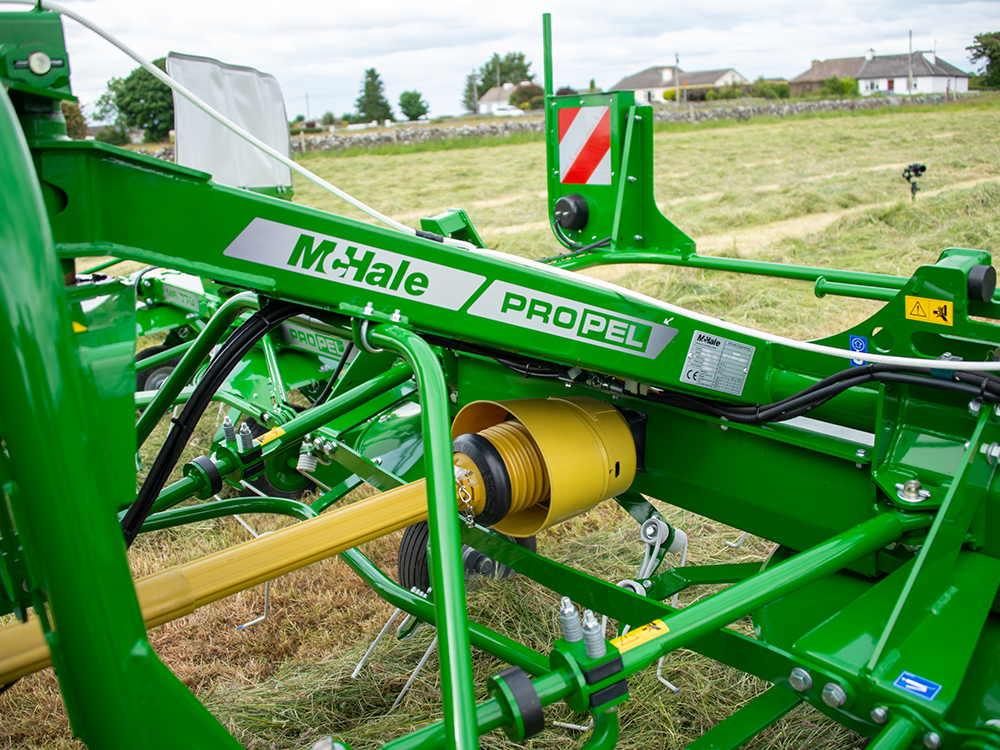

A v-shaped central chassis on all McHale mounted tedders provide a strong, stable machine when in operation and transport. This unit allows the tedder to steer when working in the field and locks automatically when lifted at the headlands or during transportation.

Features

Steering

Features

Steering

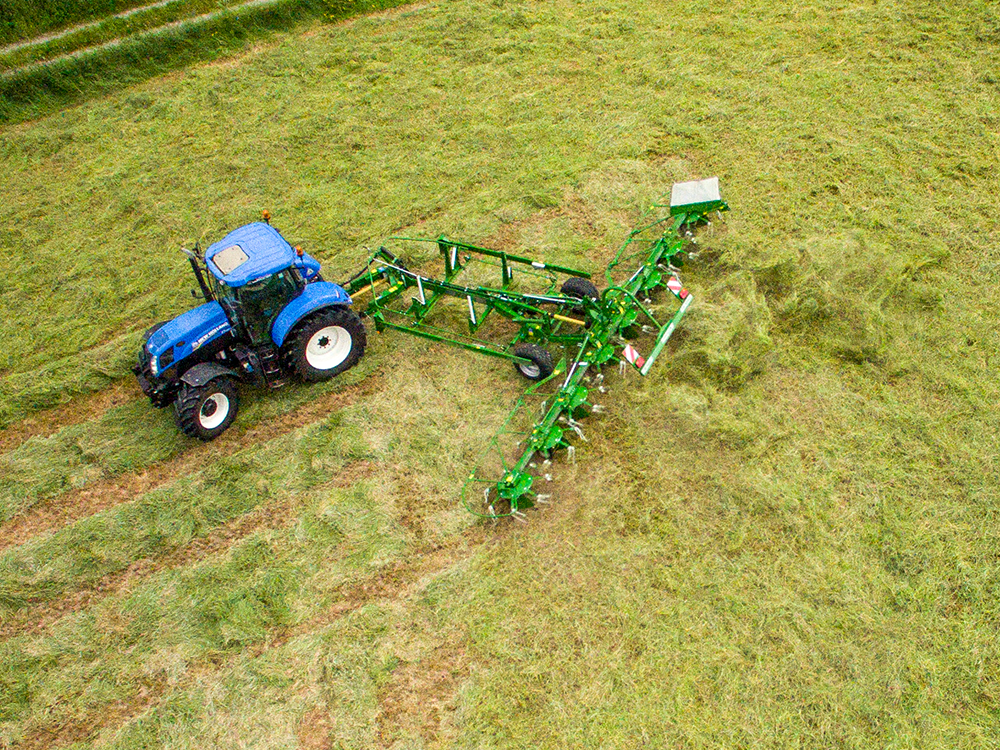

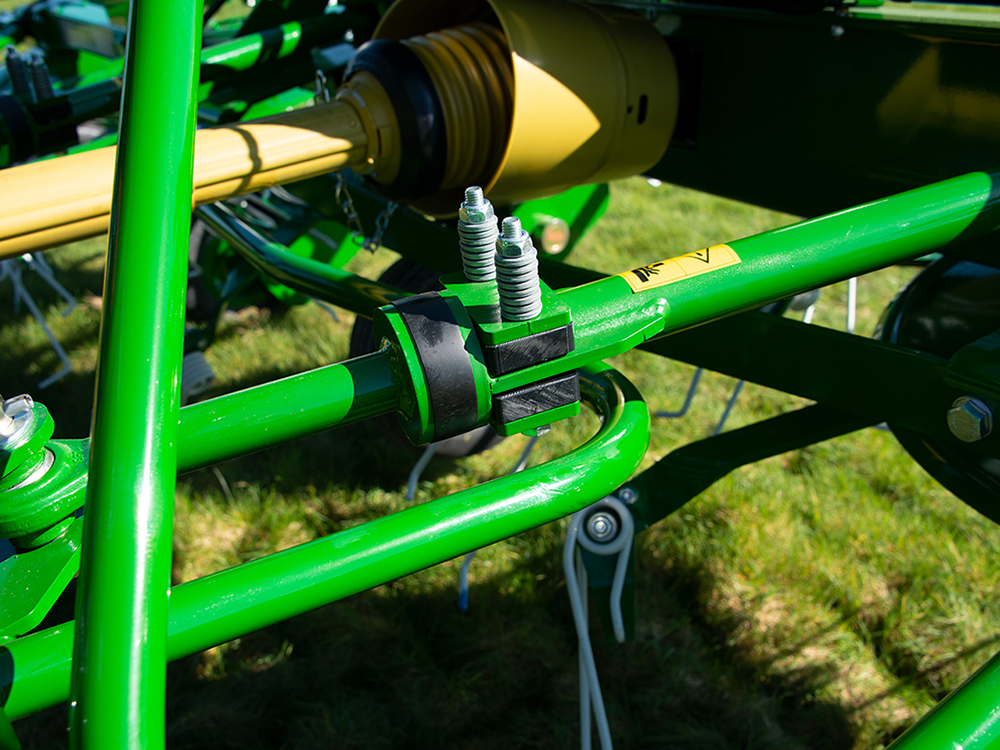

Our Tedder range is designed to provide exceptional trailing, avoid overrun on slopes and give an even, consistent tedding pattern in all directions. To achieve this, the McHale ProPel M6-770 mounted tedders are fitted with oscillating dampers and a robust steering system in order to follow the tractor around curves and ensure a stable and reliable operation during the tedding process.

Features

Transport

Features

Transport

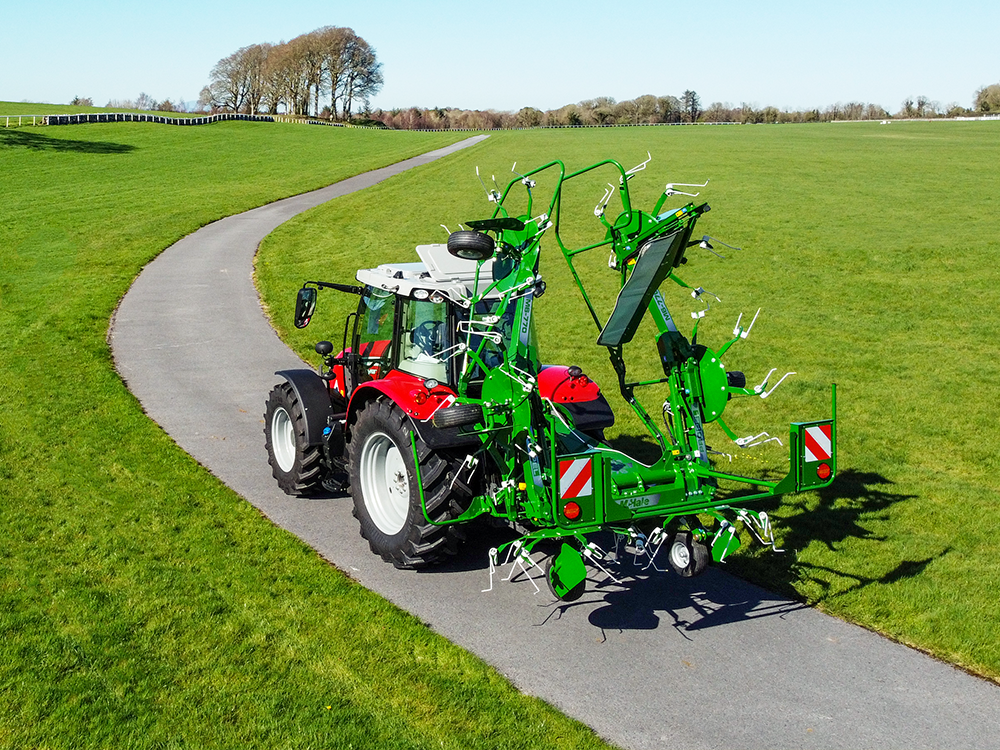

The McHale ProPel M6-770 folds vertically to a height of 3.8m, for a compact road transport position. All machines in the McHale ProPel Tedder range are equipped with road safety lights and marker board signage as standard.

Features

Headland Management System

Features

Headland Management System

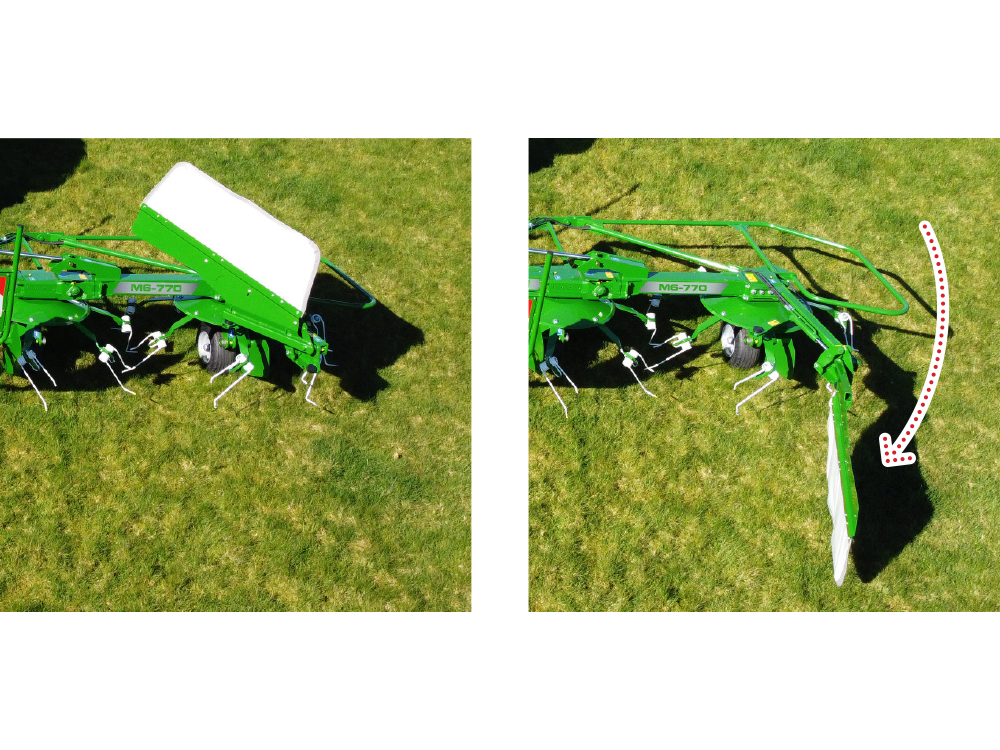

When tedding the headlands or around obstacles, the optional Headland Management System can be hydraulically folded into position by the operator in the cab. This allows the tedder to operate at full working width at all times while keeping the crop easy to rake. When operating in hay, it can also indicate which areas have already been tedded.

    ProPel M6-770 Mounted Tedder

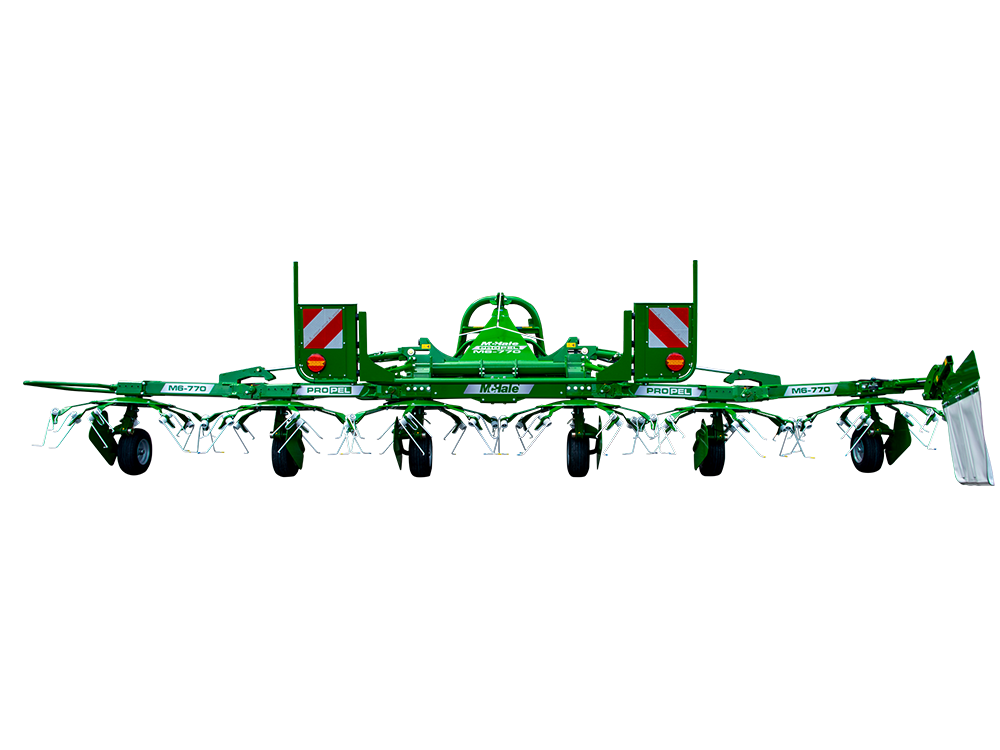

    The McHale PROPEL M6-770 is an easily maneuvered, 6-rotor, linkage tedder with a working width of 7.7M. Superb ground contouring and stability on the most uneven terrain provides effective tedding throughout the crop. 7 double-hooked tines on each rotor grip the crop to clean the ground before spreading it evenly, high and far behind the machine to obtain the best drying possible.

    Spotlight Series | McHale ProPel Tedder Range

    In this episode of our new Spotlight Series, we take a look at the new range of McHale ProPel Tedders with a particular focus on the M6-770 model.

      Technical Specifications

      Transport Length 2.55 m (8′ 4″)
      Transport Width 2.9 m (9′ 6″)
      Transport Height 3.7 m (12′ 2″)
      Weight 1,270 kg (2,800 lbs)
      Minimum Power Requirement 45 kW (60 HP)
      Attachment Mounted/ CAT II linkage
      Recommended PTO Speed 480 rpm (SAE 6 spline PTO shaft)
      Lighting 12 V / 7-pin socket
      Hydraulic Systems 2x DA hydraulic supply
      Minimum Flow Rate 20 l/min (4.54 gal/min)
      @ 180 bar (2,610 psi)
      Number of Rotors 6
      Rotor Diameter (including tines) 1.58 m (5′ 2″)
      Working Width 7.7 m (25’3″)
      Number of Tine Arms 7 (per rotor)
      Chassis Tyres (380/55-17)  N/A
      Rotor Tyres (170/60-8) 6 (1 per rotor)
      Spare Rotor Wheel Optional
      Headland Management System Optional
