995 TSR Square Bale Wrapper

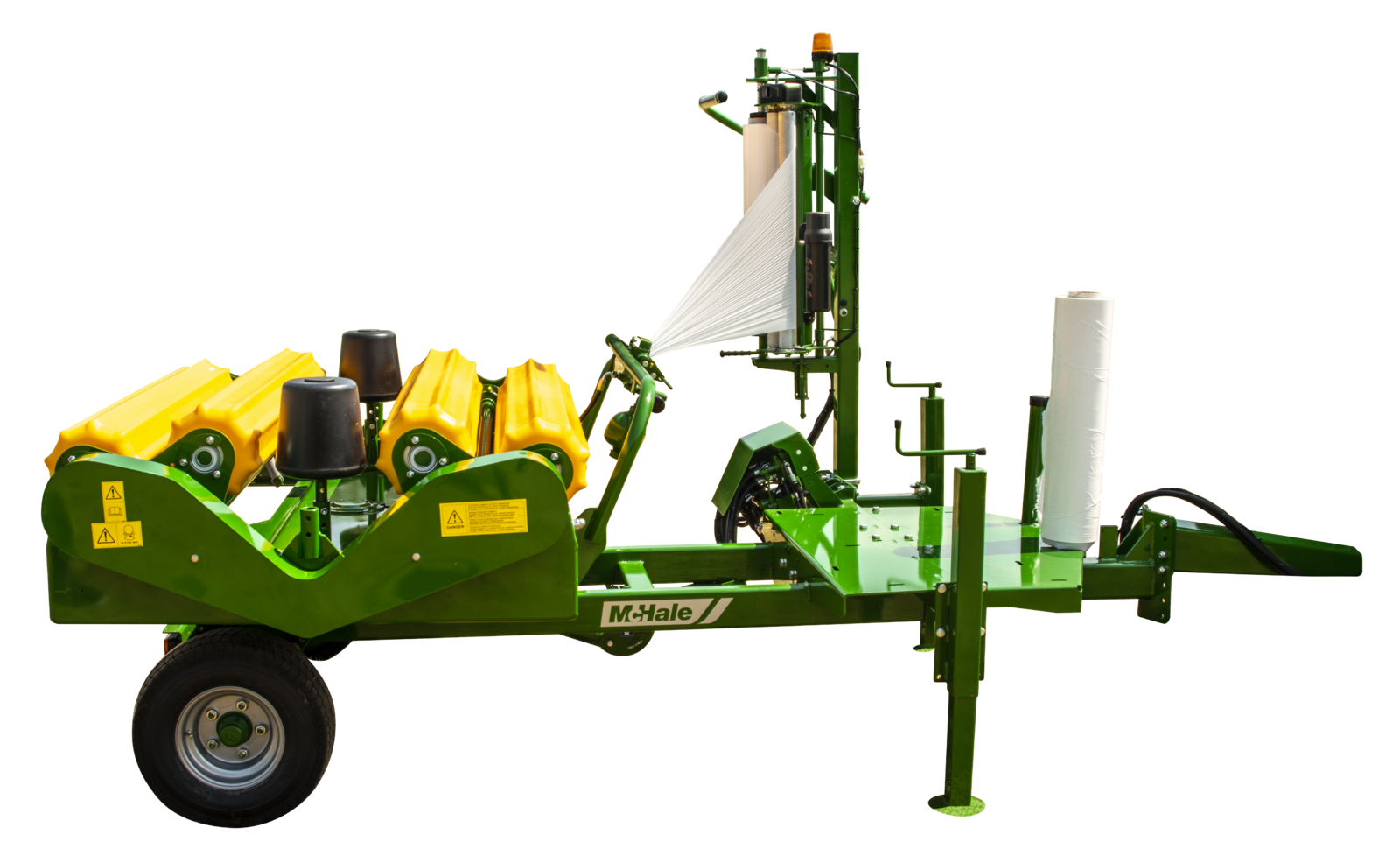

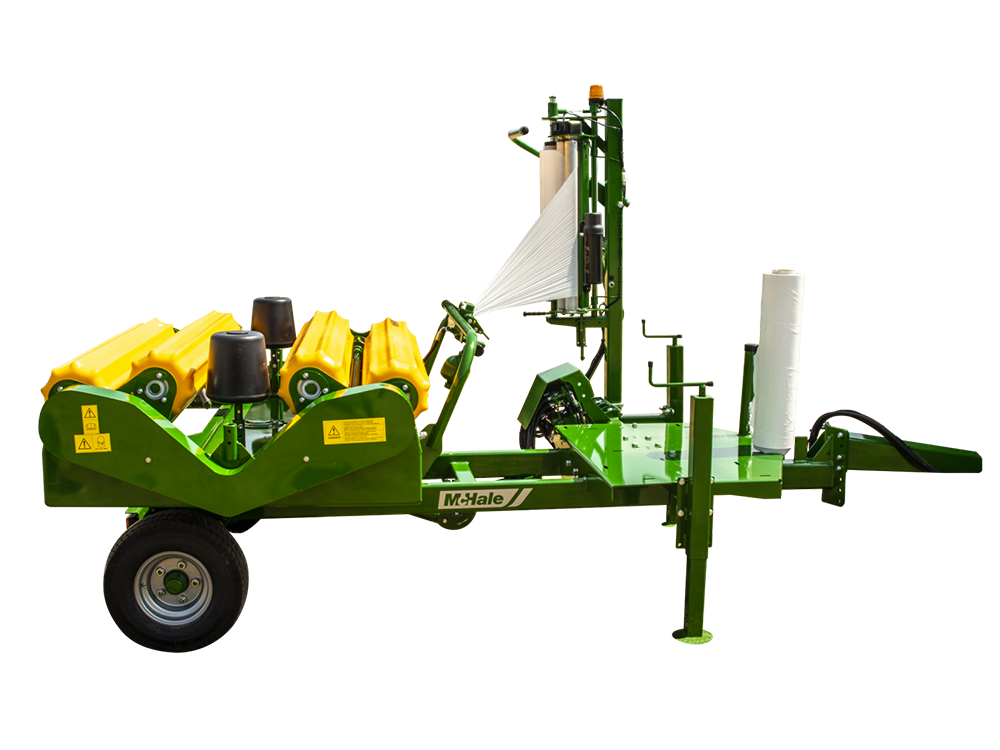

The McHale 995 TSR is a trailed, single dispenser, fully automatic remote control square bale wrapper range which is a practical and versatile solution for wrapping large square bales.

With the usual McHale common sense design, quality components and precision engineering the 995 TSR square bale wrapper is the trusted choice for farmers who want high output and consistent performance for use in static locations.

Download Product PDF

Overview

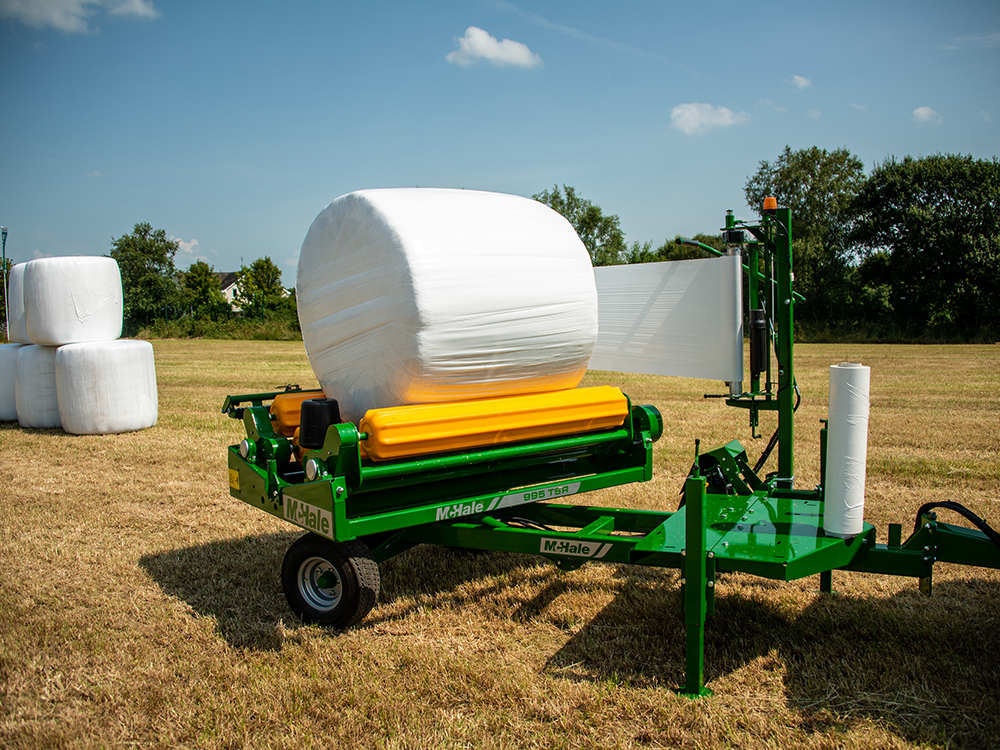

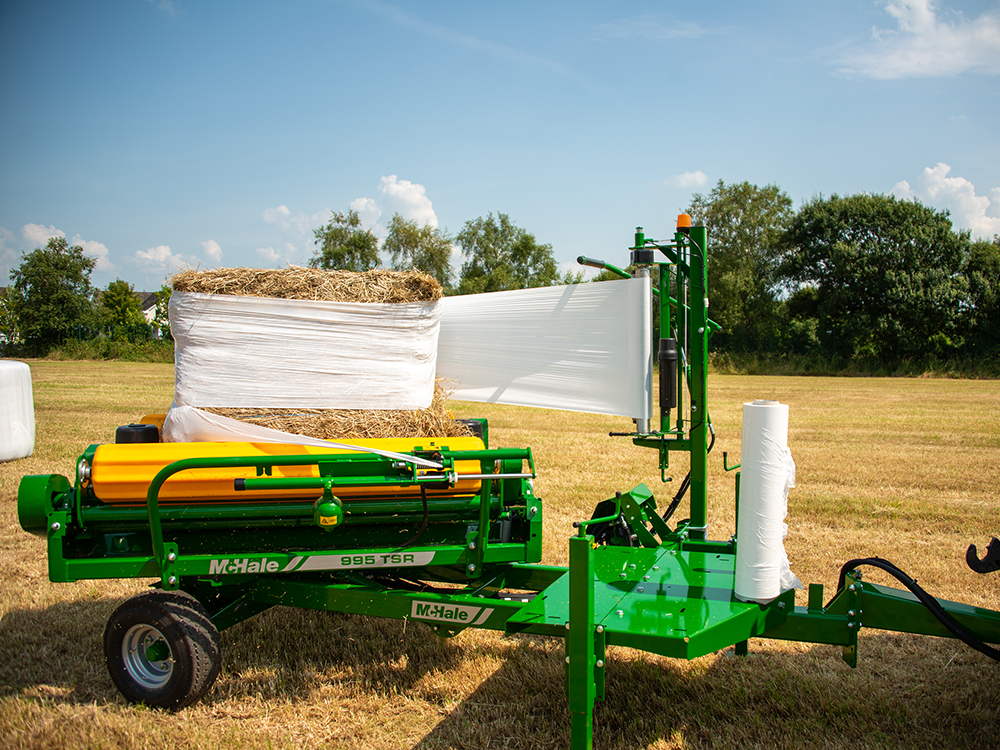

On the McHale 995 TSR square bale wrapper, the rotating rollers ensure an even rotation of the bale and the efficient application of the film. With a simple adjustment the 995 TSR will equally and efficiently wrap large round bales.

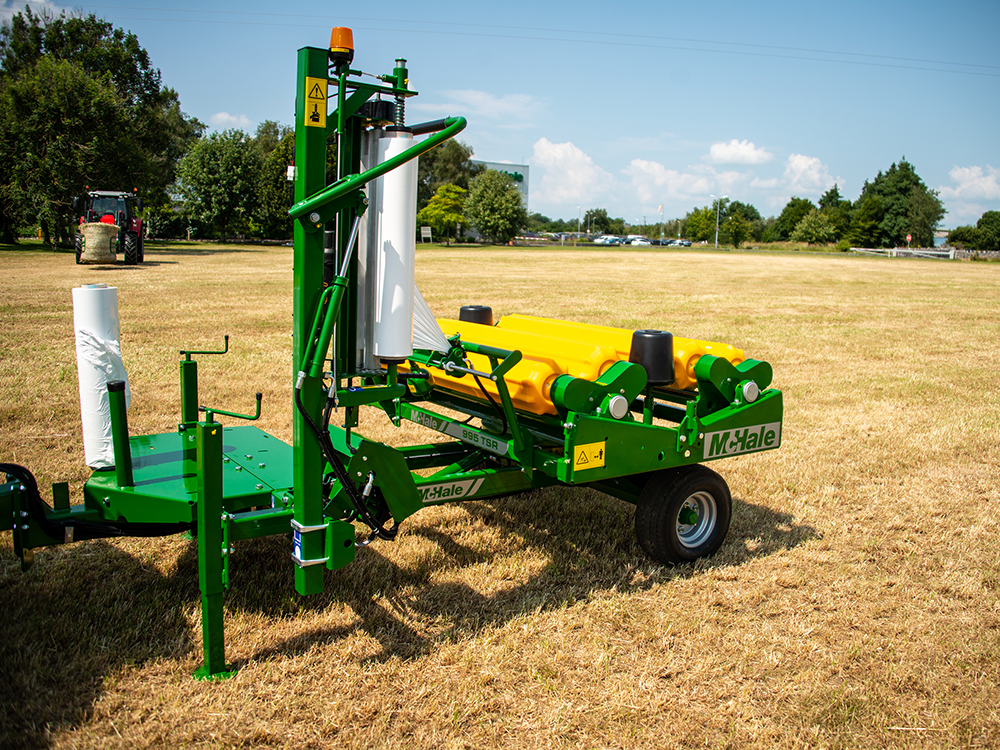

The 995 TSR square bale wrapper provides an operator with the flexibility to mount a hydraulic power pack on the front of the machine for transportation and operation. The 995 TSR also features a trailed drawbar and transportation wheels. The 995 TSR can also be operated from the loading tractor by remote control, allowing for one man operation of the loading, wrapping and stacking functions.

Like all McHale square bale wrappers, the high output 995 TSR square bale wrapper will give you a tightly wrapped bale that contains all the natural juices for increased nutritional value while improving environmental protection.




Standard Features:

Ability to wrap round or square bales Max round bale size 150cm x150cm ( 5′ x 5′) Radio Remote Control
Hydraulic Cut & Hold Quick Fit 750mm Dispensers Working table speed of up to 30 rotations/minute
Oscillating Rollers Adjustable bobbins for different size bales Spare Film Roll Holders
Can be used by a tractor or powerpack

Features

Machine Operation

Features

Machine Operation

The 995 TSR square bale wrapper is fully automatic and can be controlled by a remote control from the loading tractor. The 995 TSR has a specifically adapted chassis which can be used for transportation and mounting of a hydraulic power pack.

Read more
Features

Patented Oscillating Rollers

Features

Patented Oscillating Rollers

On the 995 TSR the patented oscillating rollers cradle the square bale between the rollers as it is being wrapped. These oscillating rollers rotate the bale at a uniform pace ensuring that the bale receives the correct overlap, ensuring a tight seal and high quality finish.

Features

Dispenser

Features

Dispenser

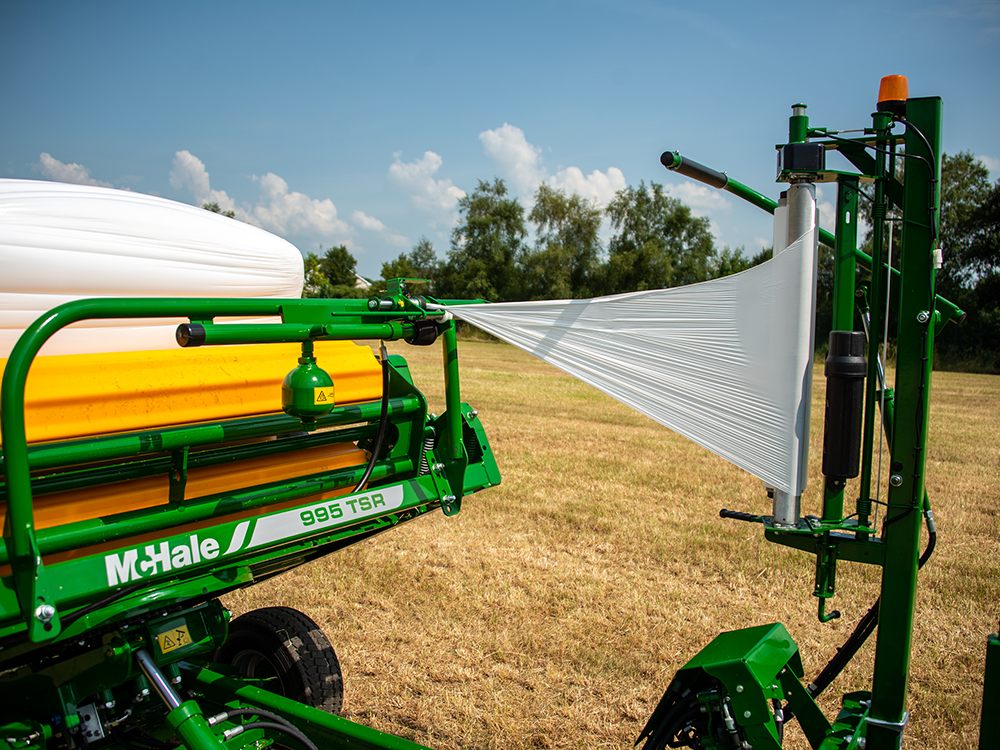

The dispenser unit on the 995 TSR is noted for its ability to maintain a consistent stretch. It consists of two aluminum rollers geared to each other with robust steel gears of different ratio which maximises film usage.

Features

Quick Fit Plastic Loading

Features

Quick Fit Plastic Loading

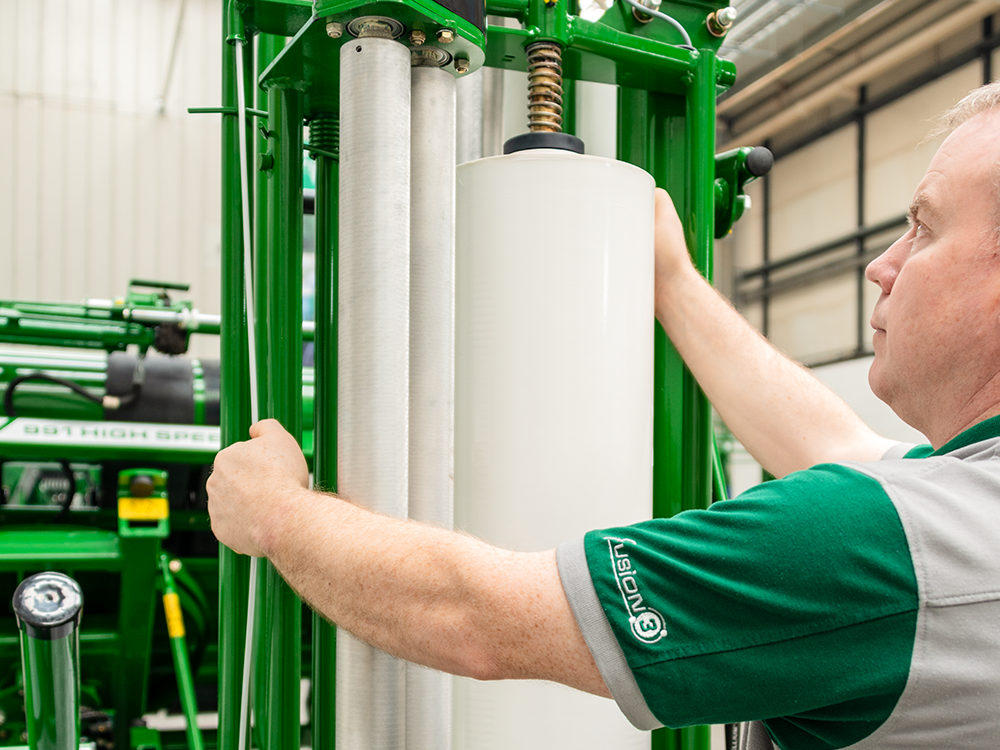

On the 995 TSR the dispenser lock and load system simplifies film loading. When removing the core of the used roll the dispenser bobbin locks in place. When a new roll is loaded it can be locked in place by simply pulling the cord.

Features

Cut and Hold

Features

Cut and Hold

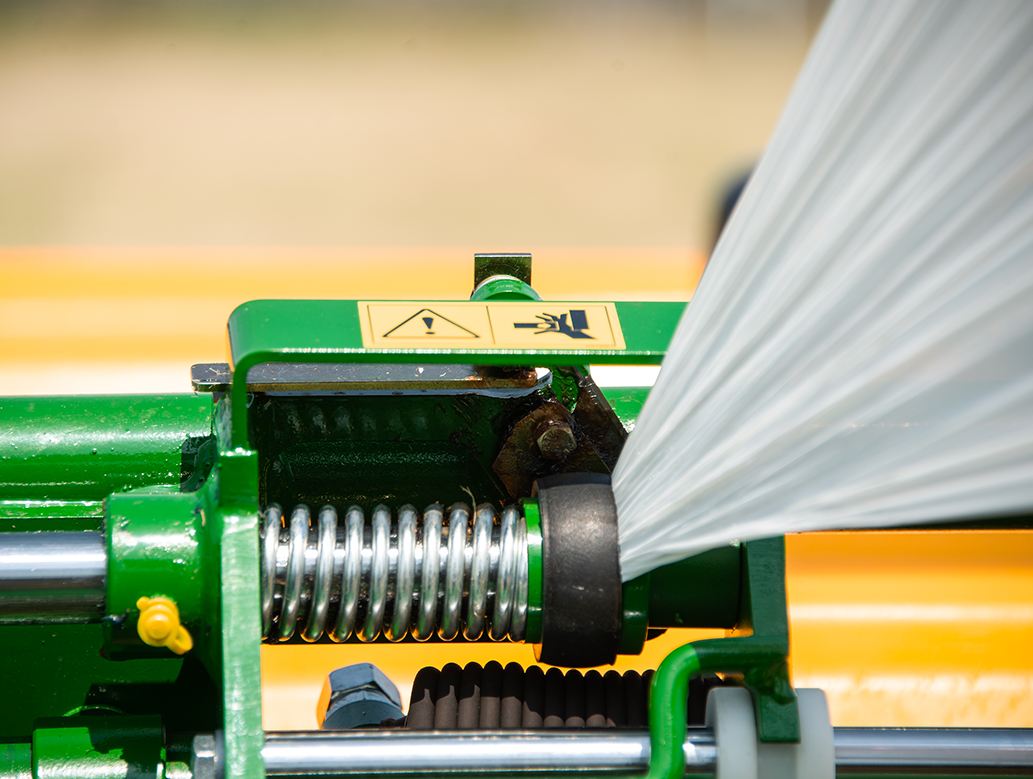

The McHale 995 TSR features a hydraulically operated cut and hold system, which cuts and holds the film in position ready to wrap the next square or round bale.

Read more
Features

Film Break Sensors

Features

Film Break Sensors

The McHale 995 TSR has automatic film break sensors that monitor the plastic as it leaves the dispenser rollers. If plastic breaks or runs out, the machine will notify the operator via the control console.

Features

Expert Control Console

Features

Expert Control Console

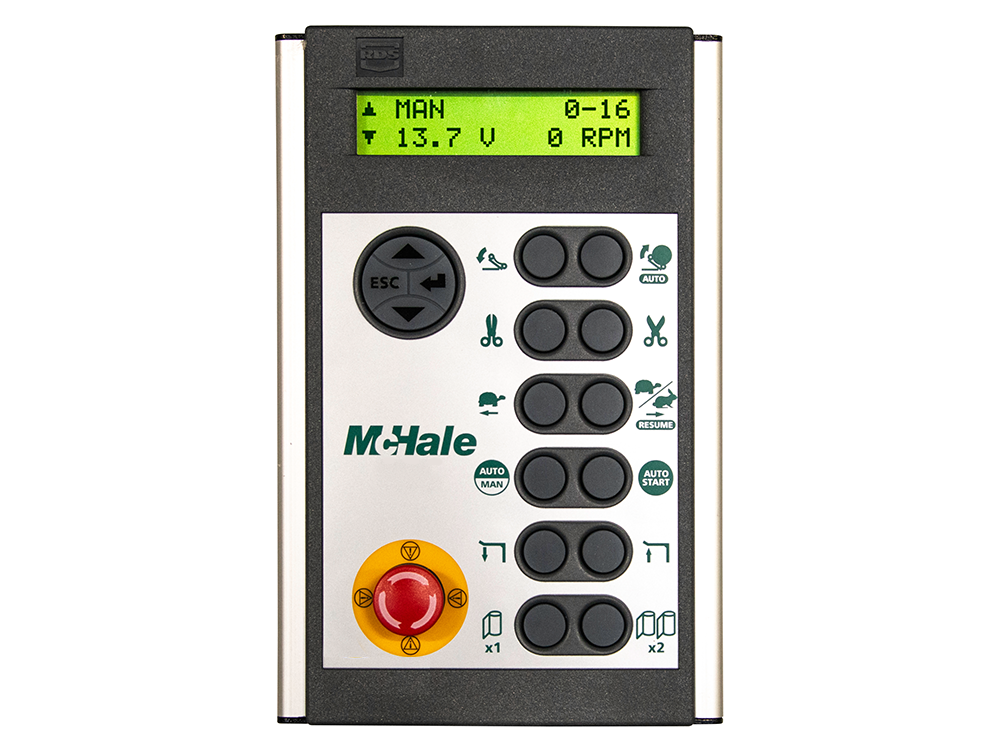

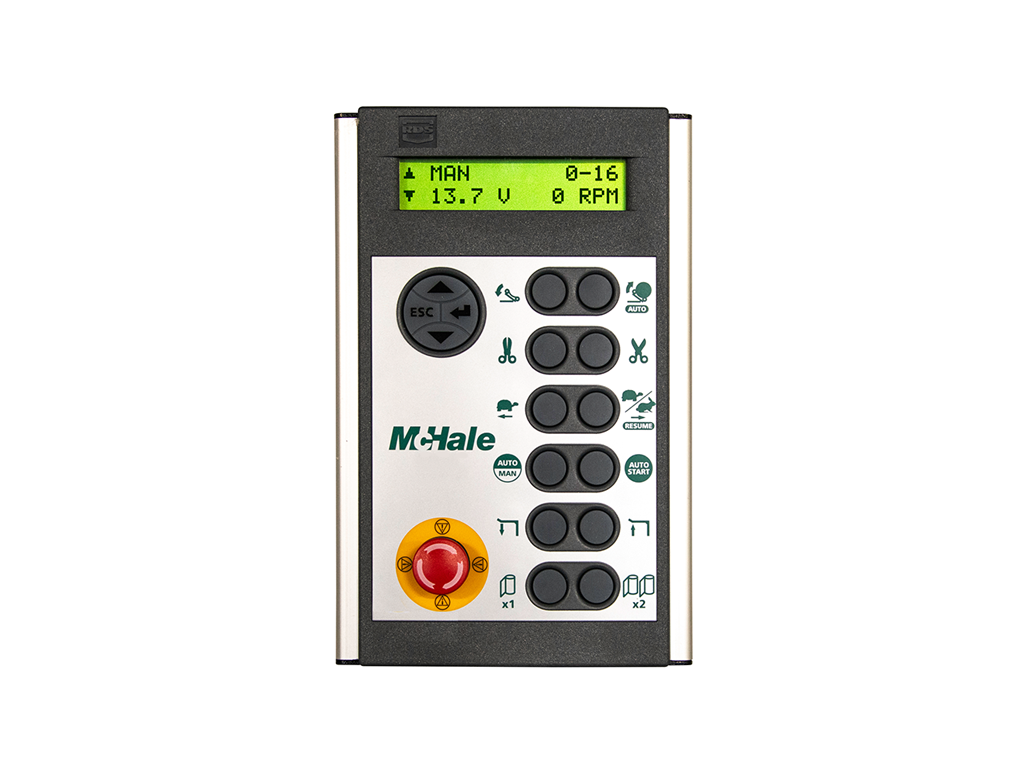

The Expert Control Console unit on the 995 TSR square bale wrapper enables the operator to change the bale size and select the desired number of film layers. When set, one touch of the auto start button operates the complete cycle from start to finish.

Features

Radio Remote Control

Features

Radio Remote Control

The 995 TSR square bale wrapper is fully automatic and can be controlled by a remote control from the loading tractor.

Read more

    995 TSR – Square Bale Wrapper

    Watch the video for the McHale 995 TSR square bale wrapper, whose rotating rollers ensure an even rotation of the bale and the efficient application of the film. With a simple adjustment the 995 TSR will equally and efficiently wrap large round bales. It also provides an operator with the flexibility to mount a hydraulic power pack and can be operated from the loading tractor by remote control, allowing for one man operation of the loading, wrapping and stacking functions.







      Technical Specification

      Total Length 3.1 m / 10’2”
      Transport Width 1.73 m / 5’8”
      Height to top of rollers 0.97 m / 3’2”
      Weight (unladen) 1100 kg / 2200 lbs
      Max bale weight 1000kg / 2000 lbs
      Min oil req. litres per minute 18 l/min @ 150 bar
      Electrical Requirement 12v from Battery or EuroPlug
      Working speed-table (up to) 30 rotations/min
      Film Holders 2
      Protection Mechanism Shear Bolt/ Roll Pin
      Dispenser 750/ 500mm @ 70% (55% optional)
      Cut & Tie Standard
      Attachment to Tractor Towbar
      Control Expert Plus

      Radio Remote Control

      Round bales Max. Width 150 cm / 5’
      Round bales Max. Diameter 150 cm / 5’
      Square Bales Sizes



      70 cm  x 70 cm (2’ 3” x 2’ 3”)

      80 cm x 80 cm (2’ 7” x 2’ 7”)

      80 cm x 90 cm (2’ 7” x 2’ 11”)

      Max. Bale Length 180 cm / 5’10”
      Options

      The McHale 995TSR square bale wrapper features a hydraulically operated cut and hold system, which cuts and holds the film in position ready to wrap the next square or round bale. This time saving device eliminates the need to manually reattach the film on the 995TSR square bale wrapper after each bale is tipped off the bale wrapping table. Uniquely designed, this system works reliably and consistently as the 995 square bale wrapper wraps bales in all weather conditions.
