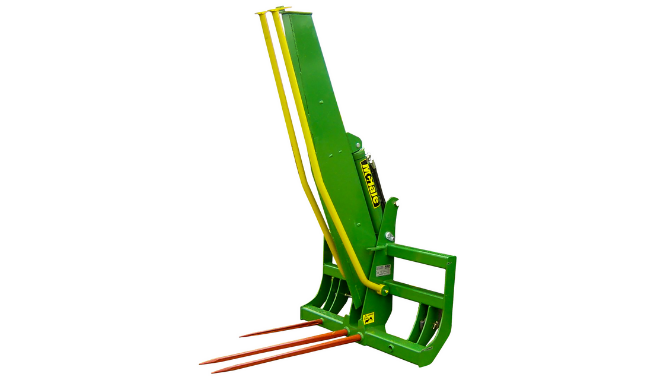

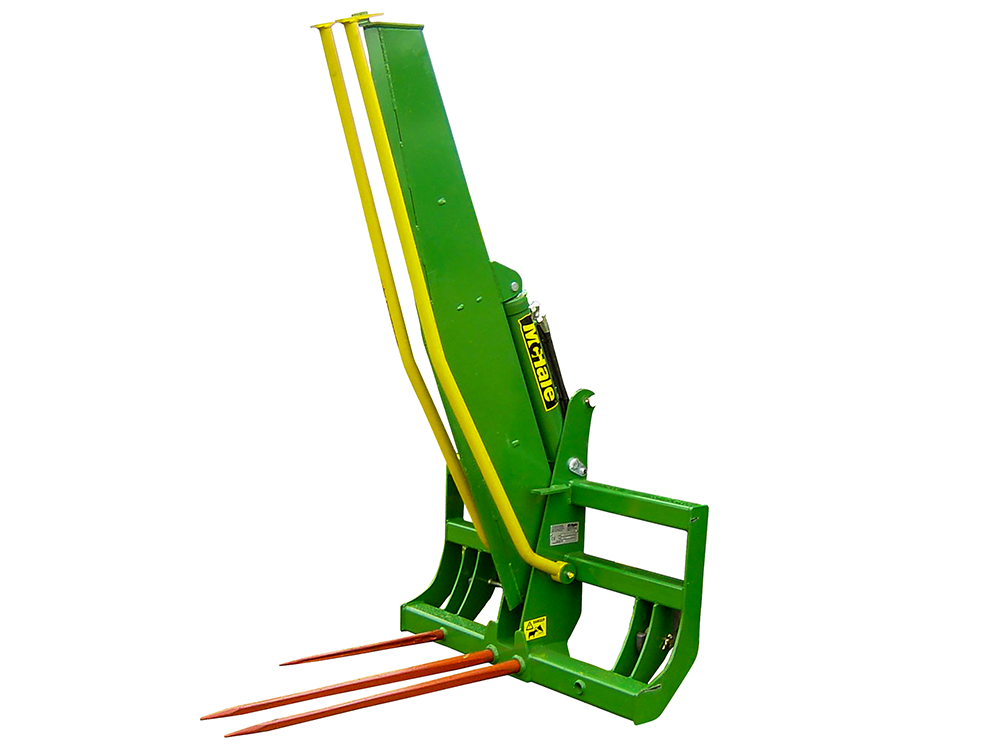

McHale 994 Bale Splitter

Combining simplicity and strength the McHale Round Bale Splitter cuts bales of silage, hay or straw, quickly, neatly and efficiently.

Download Product PDF

Overview


The McHale 994 round bale splitter is powered by one double acting hydraulic cylinder with a uniquely designed knife and will securely transport bales from the stacking site to the feeding location.

The operator simply splits the bale as desired in the feeding area or into a Feeder wagon. If the McHale 994 splits the bale in the feed out area, it can also be used to push the bale segments into the feeding location.

The McHale round bale splitter is supplied in a standard configuration as a three point linkage machine and can also be fitted to a tractor loader or industrial handler. Like all McHale products, the McHale round bale splitter incorporates common sense design, quality components and precision engineering to make round bale splitting more efficient.

Features

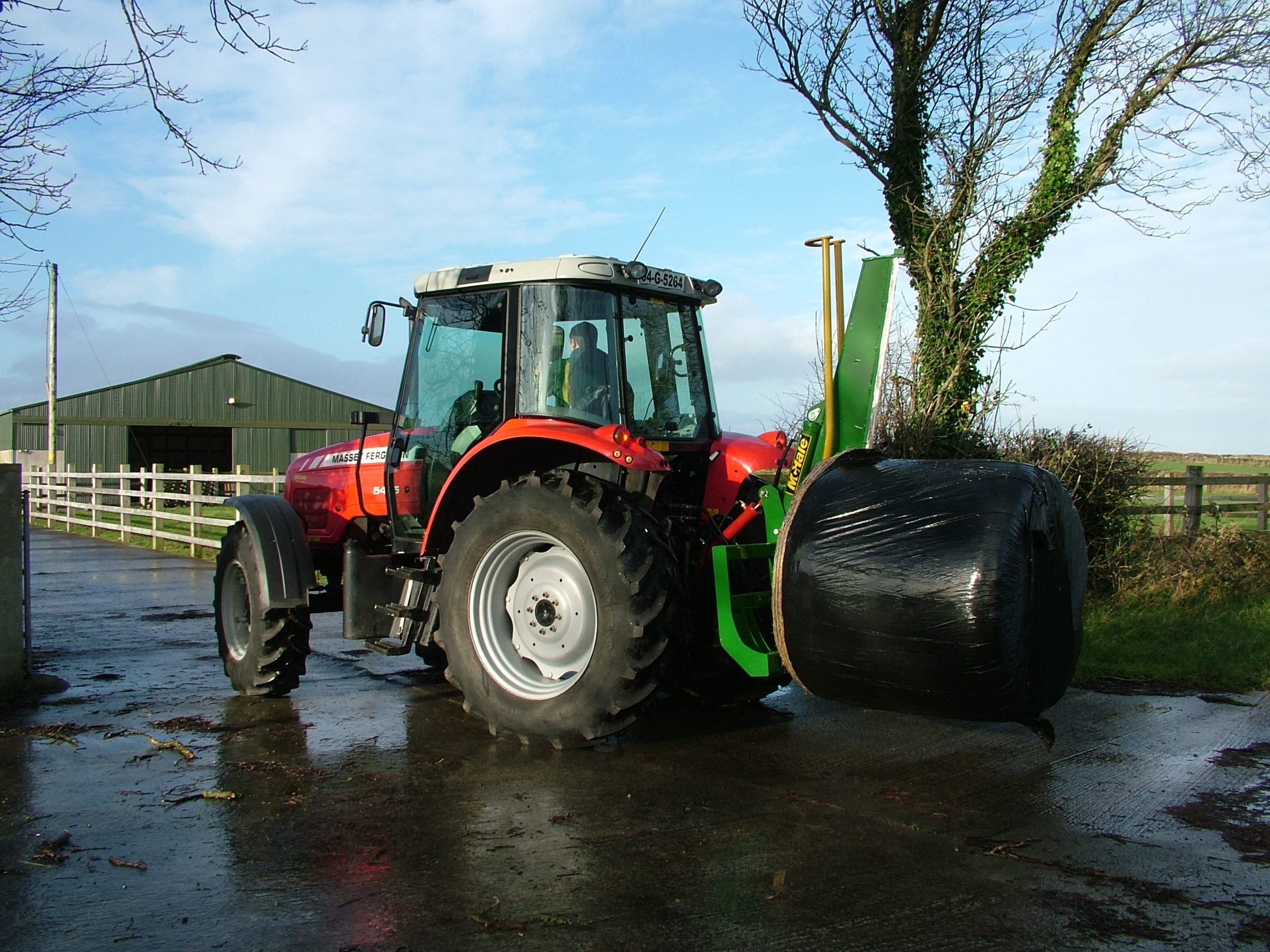

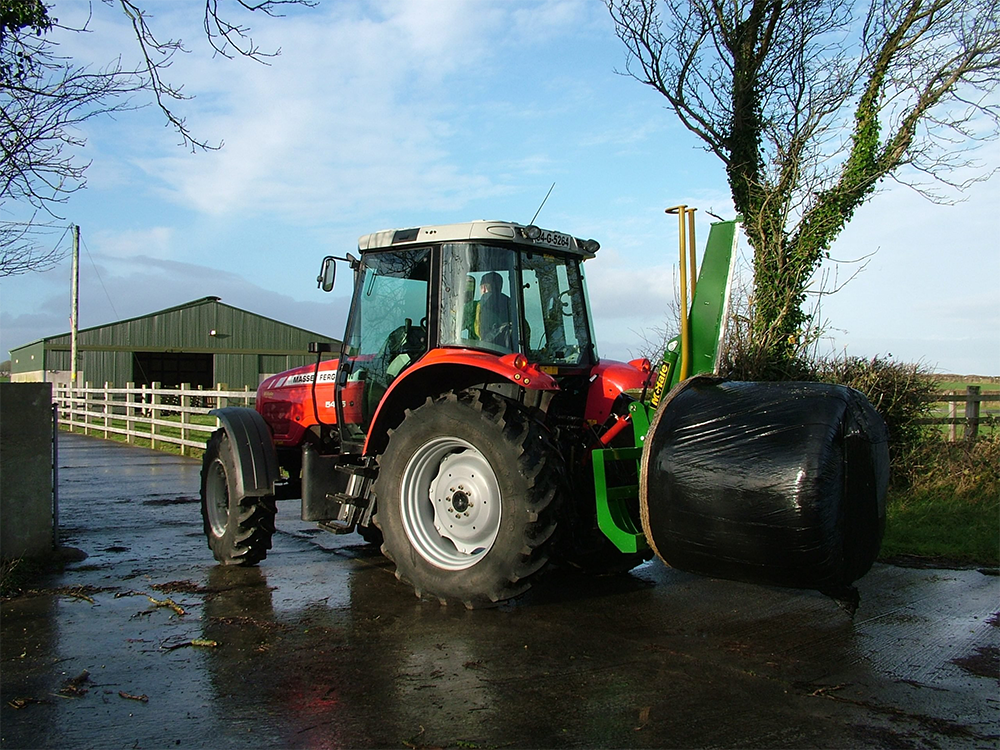

Bale Transportation

Features

Bale Transportation

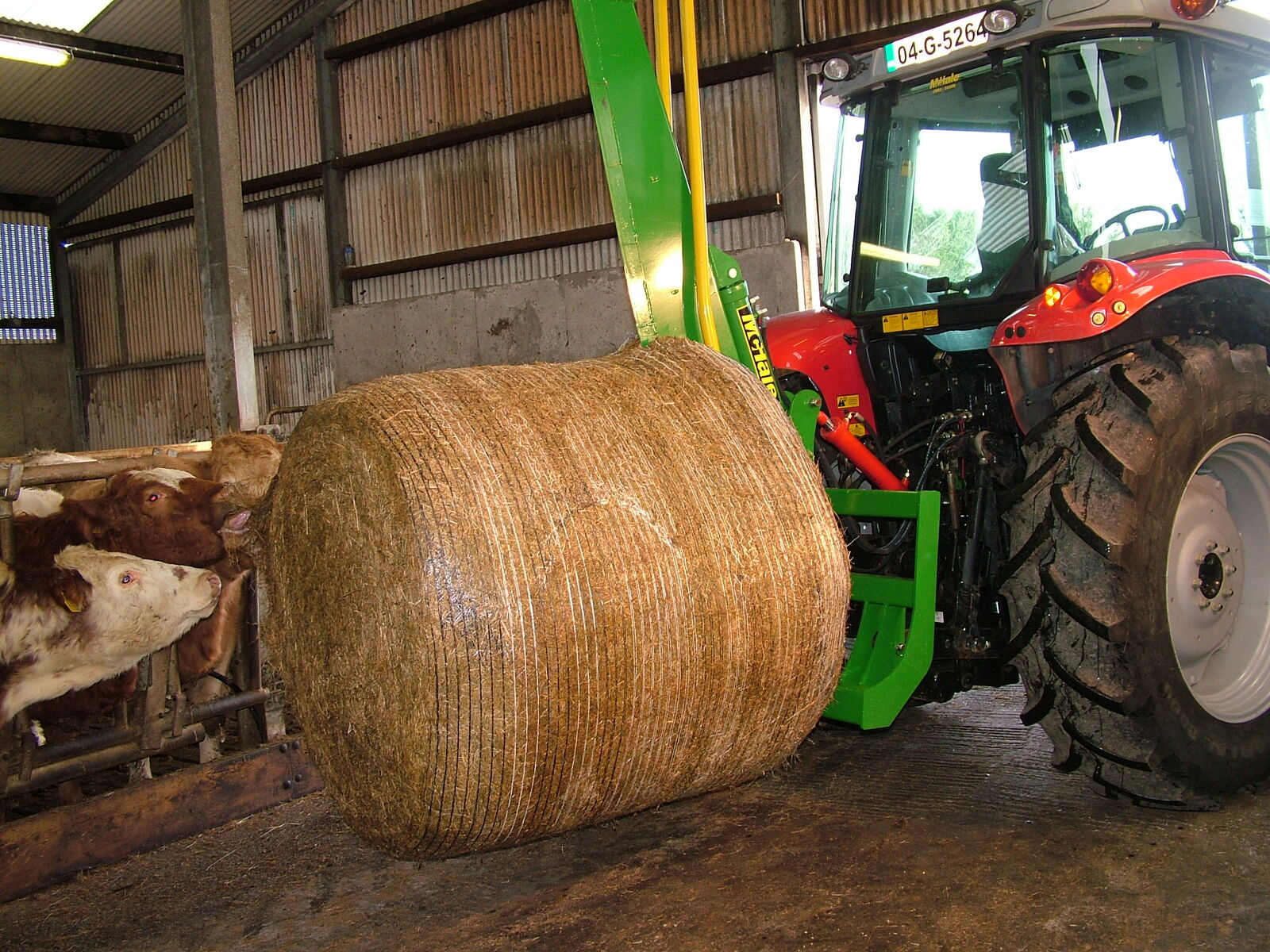

With the knife in the upper position the McHale 994 bale splitter can be used to spike the bale and transport it from the stacking area to the feeding area.

Features

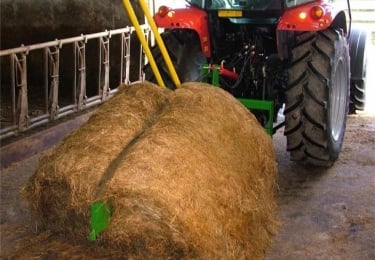

Bale Splitting

Features

Bale Splitting

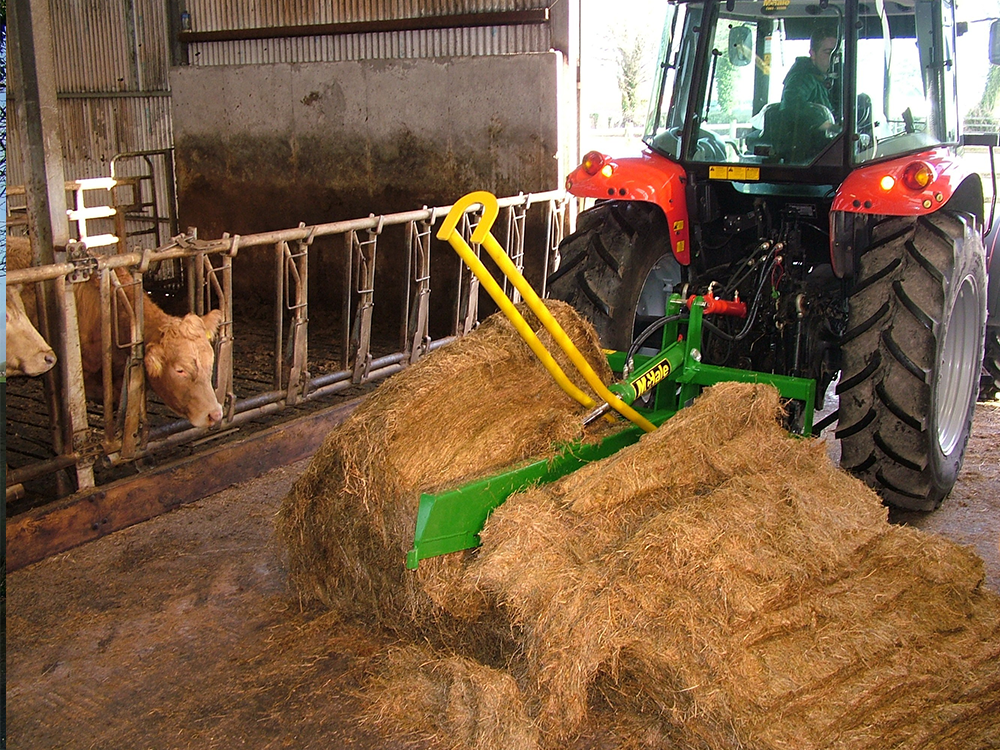

Once the bale is transported to the feeding area by the 994, the bale can be split by one simple cut of the specifically designed knife.

Features

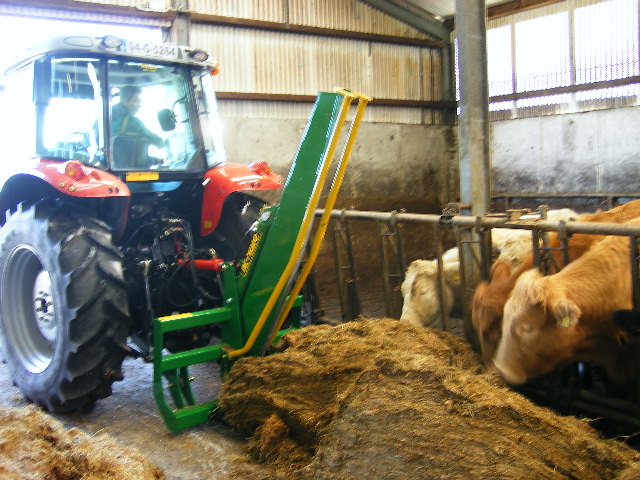

Bale Transportation After Splitting

Features

Bale Transportation After Splitting

Once the bale is split the tines can again be used to bring the different sections of the bale to different areas in the feed lot.

Features

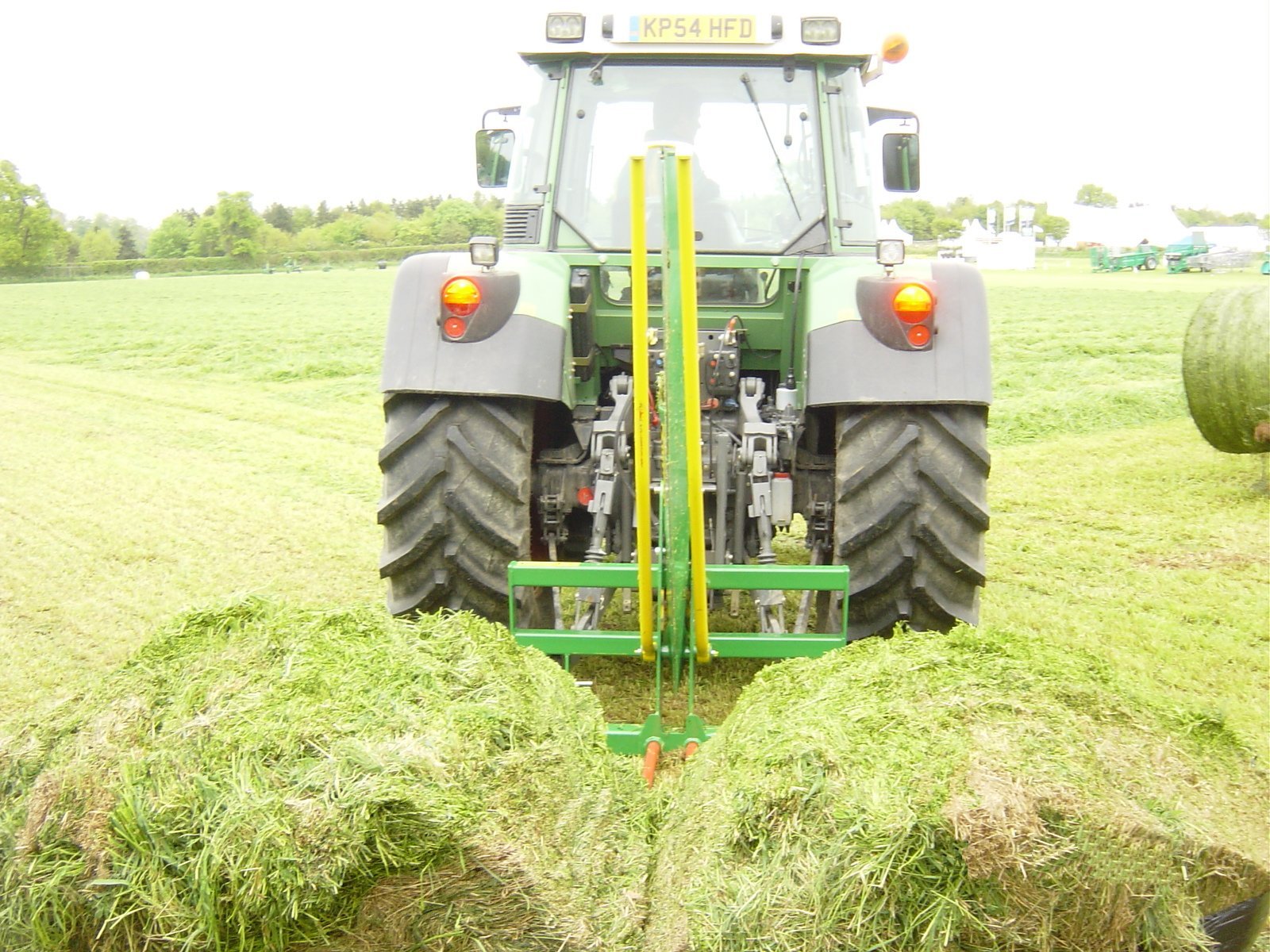

Splitting Green Chop

Features

Splitting Green Chop

The McHale 994 round bale splitter can also be used to split Green Chop.

Features

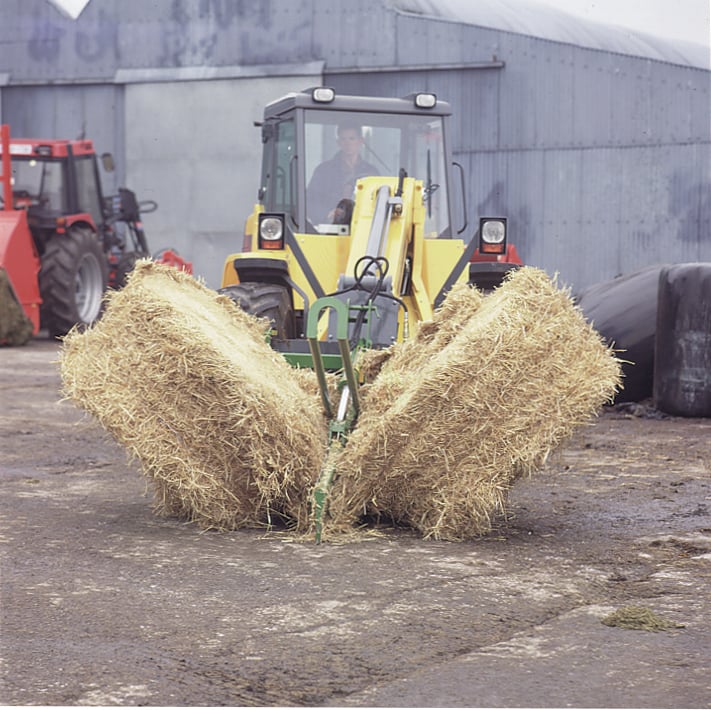

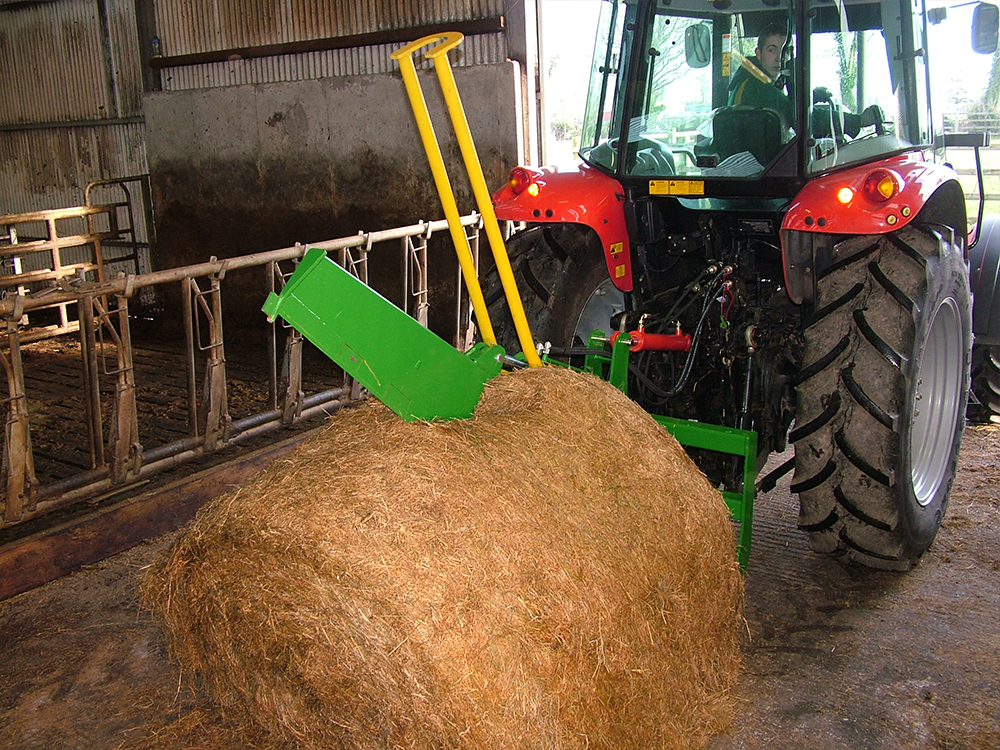

Splitting Hay or Straw

Features

Splitting Hay or Straw

The McHale 994 round bale splitter can also be used to split hay or straw.

    McHale 994 – Round Bale Splitter

    Watch the video for the McHale 994 round bale splitter powered by one double acting hydraulic cylinder with a uniquely designed knife which will securely transport bales from the stacking site to the feeding location.

      Technical Specification

      Weight 230 kg / 507 lbs
      Length (Overall) 2.05 m / 6’8”
      Width 1.25 m / 4’2”
      Height Open 2.20 m / 7’3
      Height Closed 1 m / 3’3”
      Lifting Capacity 1100 kg / 2425 lbs
      Hydraulic Requirements One Double Acting Service
      Minimum Hydraulic Pressure 150 bar/ 2250 Ibs/sq.in
      Options

      Adapted for Multipurpose

      With the knife in the upper position the McHale bale splitter can be used to spike the bale and transport it from the stacking area to the feeding area.
