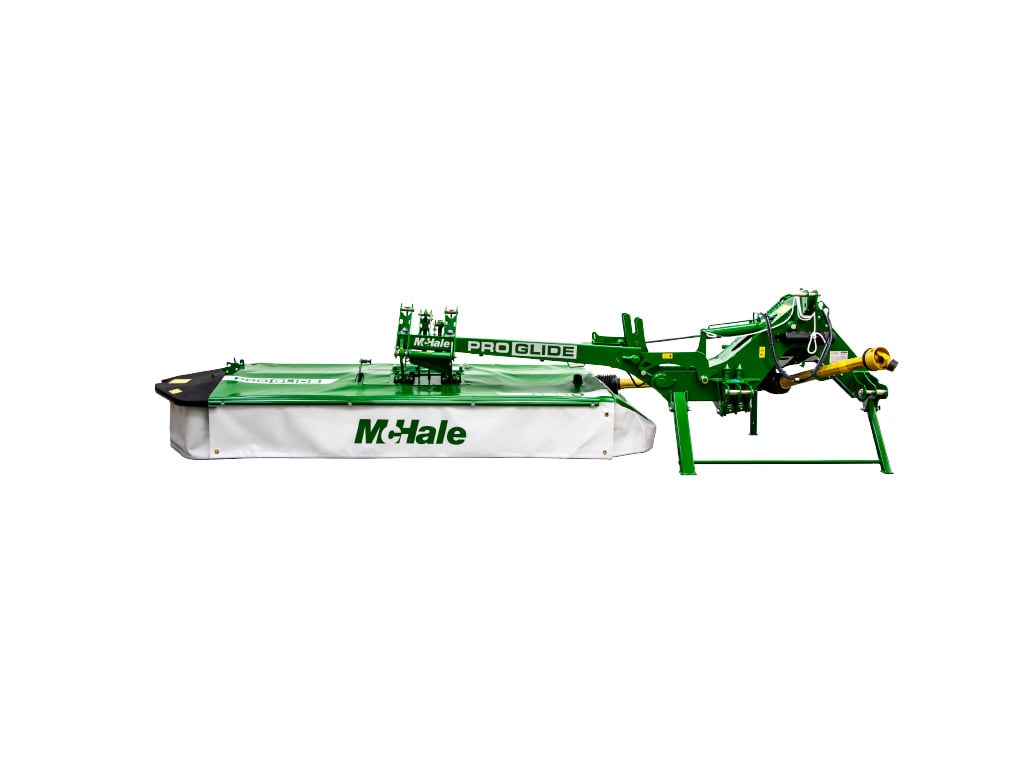

R310- Non Conditioner Mower

McHale Pro Glide R310 Non Conditioner Mower

For over 30, years the McHale range of grassland equipment has been operating on 6 continents in some of the worlds most difficult conditions. Building on their comprehensive range of mowers, McHale now introduce the McHale Pro Glide R310 non-conditioner mower. Following direct requests from the market, McHale’s design team have combined their specialist knowledge of crop harvesting, energy and technical know-how to develop the McHale Pro Glide R310 non-conditioner mower.

Download Product PDF

Overview

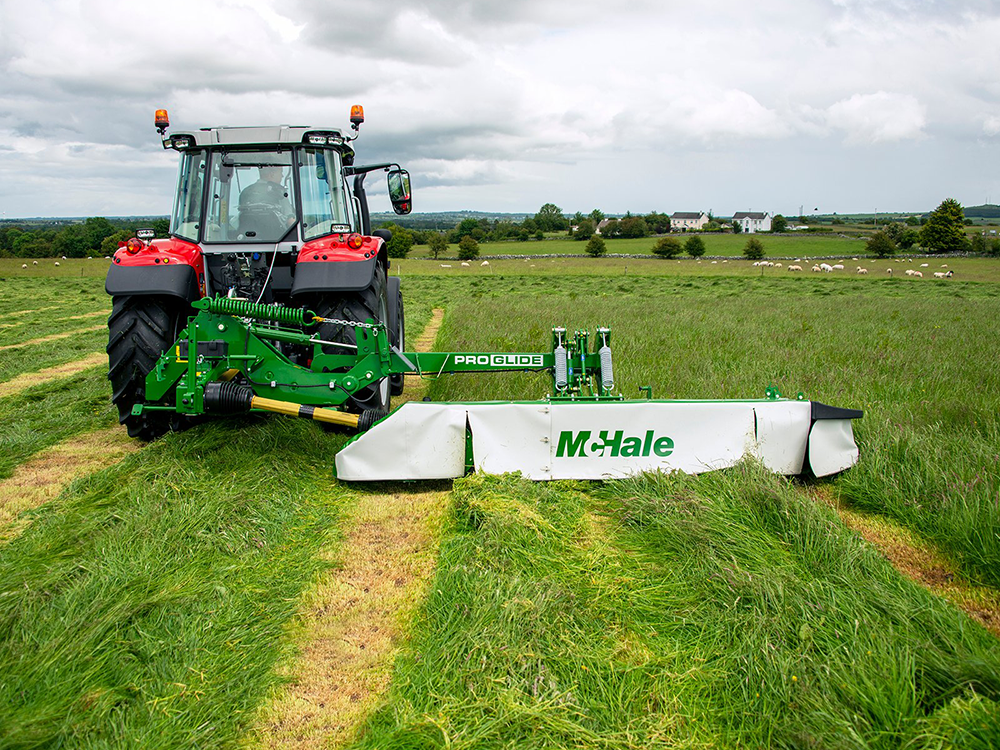

The McHale Pro Glide R310 mower has excellent ground following capabilities delivering superior floatation. The mower is fitted with a patented ground adaptation technology which delivers 3-dimensional contour tracking of the ground. This allows the mower to easily mow on rough or undulating terrain and still deliver optimal results.

Most rear mowers have a central pin which allows the mower to move left and right to adjust to changes in ground condition. The McHale Pro Glide is different in that it is fitted with a patented 3D ground tracking suspension unit, which allows the mower to:

  • Move Left and Right
  • Move Forward and Back
  • Let the cutter bar move back and up if it collides with an obstacle.

This ensures that the Pro Glide cutter bar delivers better cutting performance.


Standard Features:

3D Ground Tracking Technology Unique Forward/Back Movement of 12° Transverse  Movement of 17°
Unique Stone Protection Mechanical Break Back Protection Heavy-Duty, Fully Welded Cutter Bar
Heavy-Duty 1,000 or 540rpm Driveline Low Profile Front Edge Quick Fit Blades
25mm (1′) Thick Gears Adjustable Swathing Discs (Optional)
Features

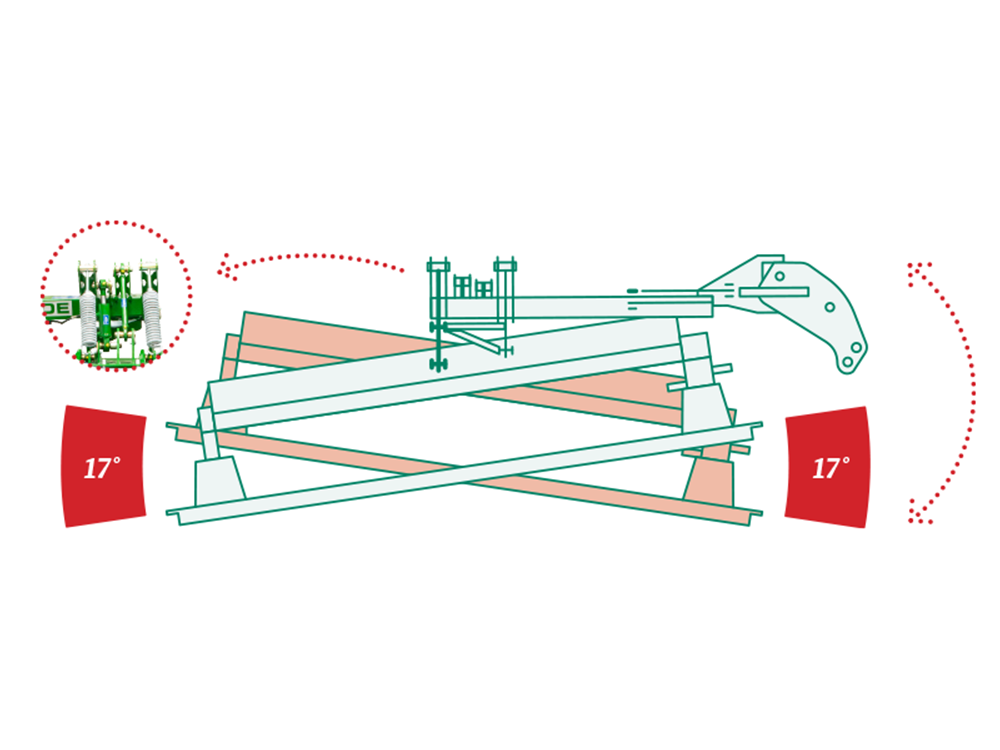

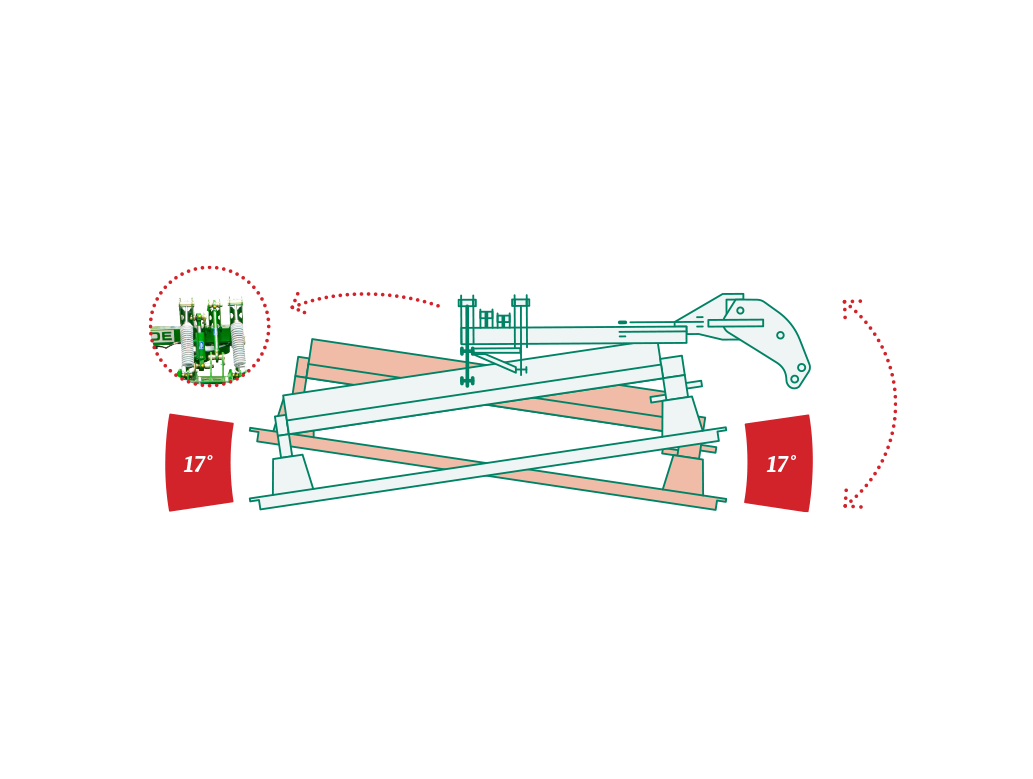

17˚ Right/ Left Movement

Features

17˚ Right/ Left Movement

The right/left transverse movement means the cutter bar maintains a clean cut as it smoothly glides over humps and hollows in the ground.

Features

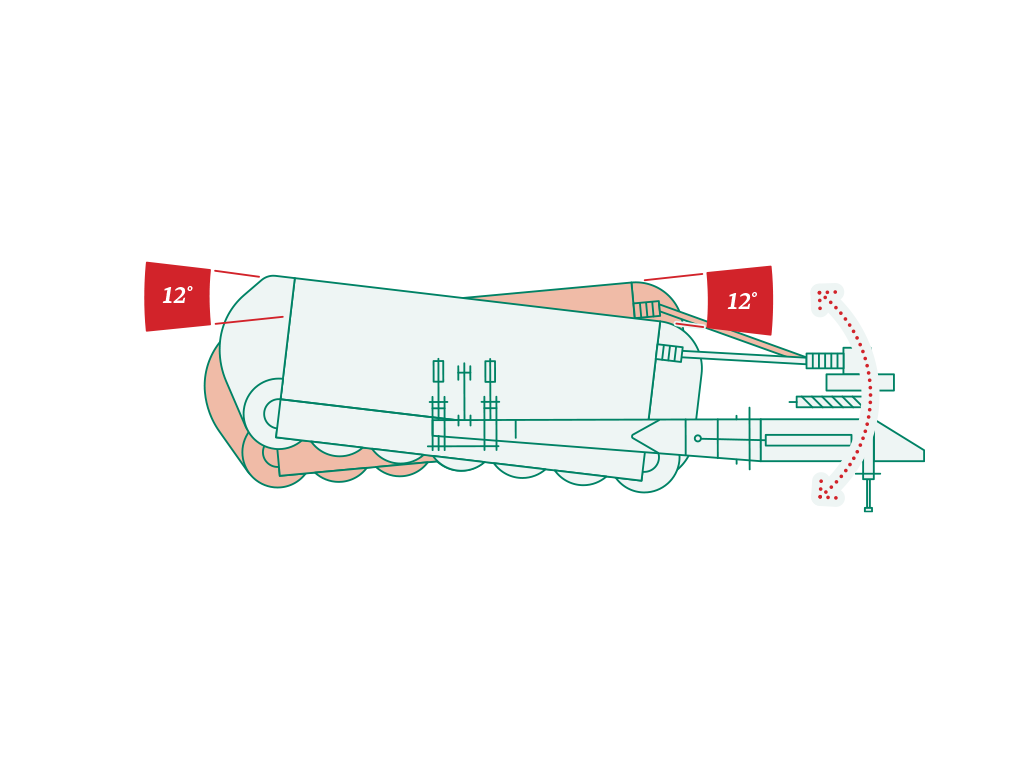

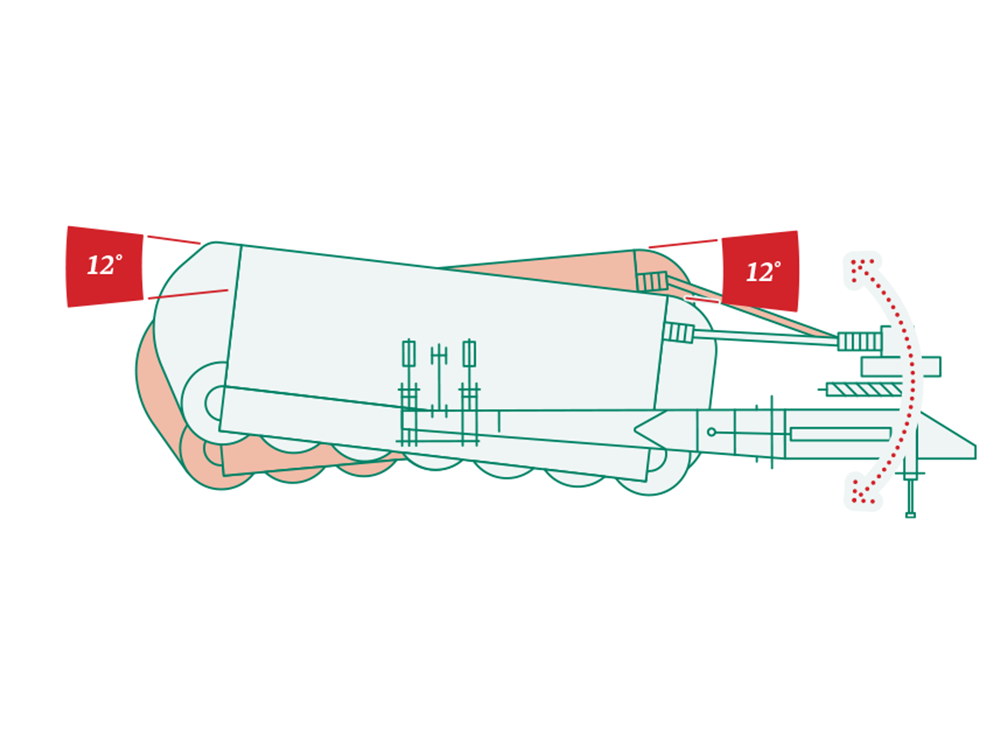

Forward / Back Movement - 12°

Features

Forward / Back Movement - 12°

This movement ensure a precision floatation of the cutter bar for a cleaner cut in all ground conditions.

Features

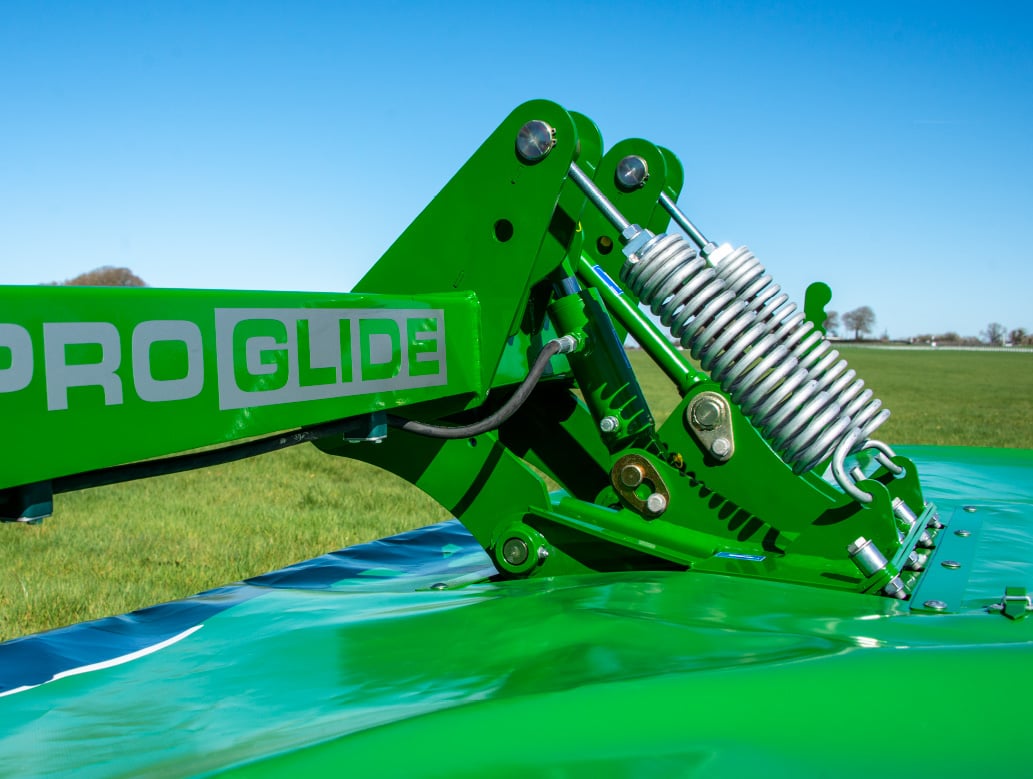

3D Ground Tracking Technology

Features

3D Ground Tracking Technology

The McHale Pro Glide R310 mower has excellent ground following capabilities delivering superior floatation. The mower is fitted with a patented ground adaptation technology which delivers 3-dimensional contour tracking of the ground. This allows the mower to easily mow on rough or undulating terrain and still deliver optimal results.

Read more
Features

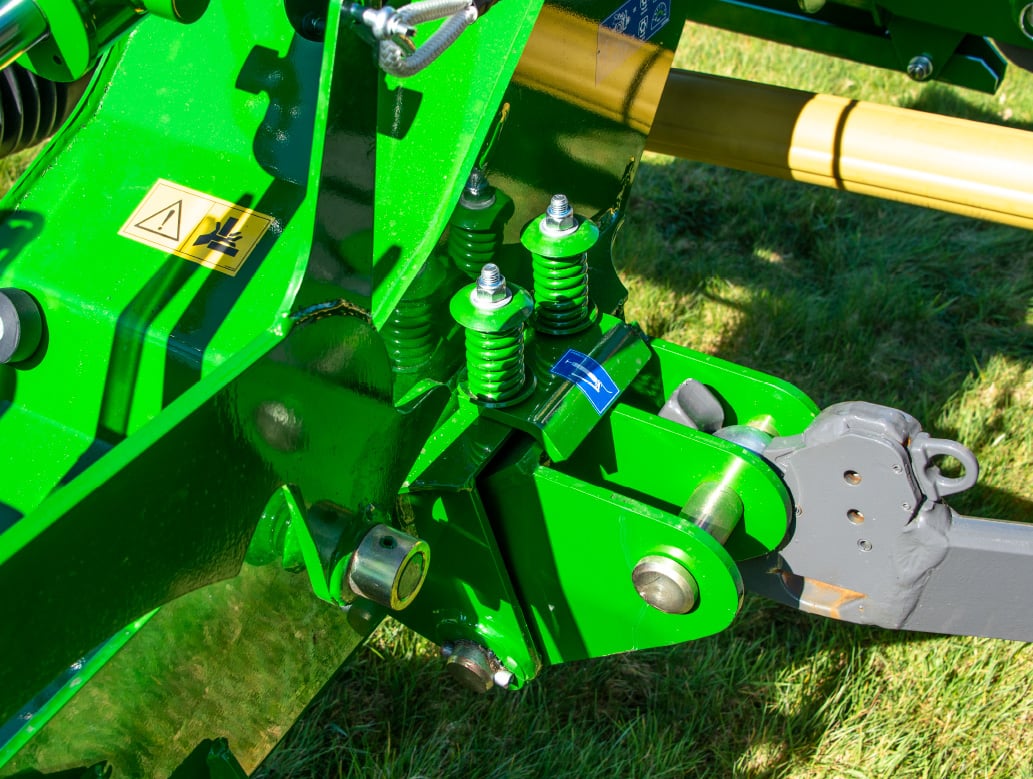

Mechanical Break-Back

Features

Mechanical Break-Back

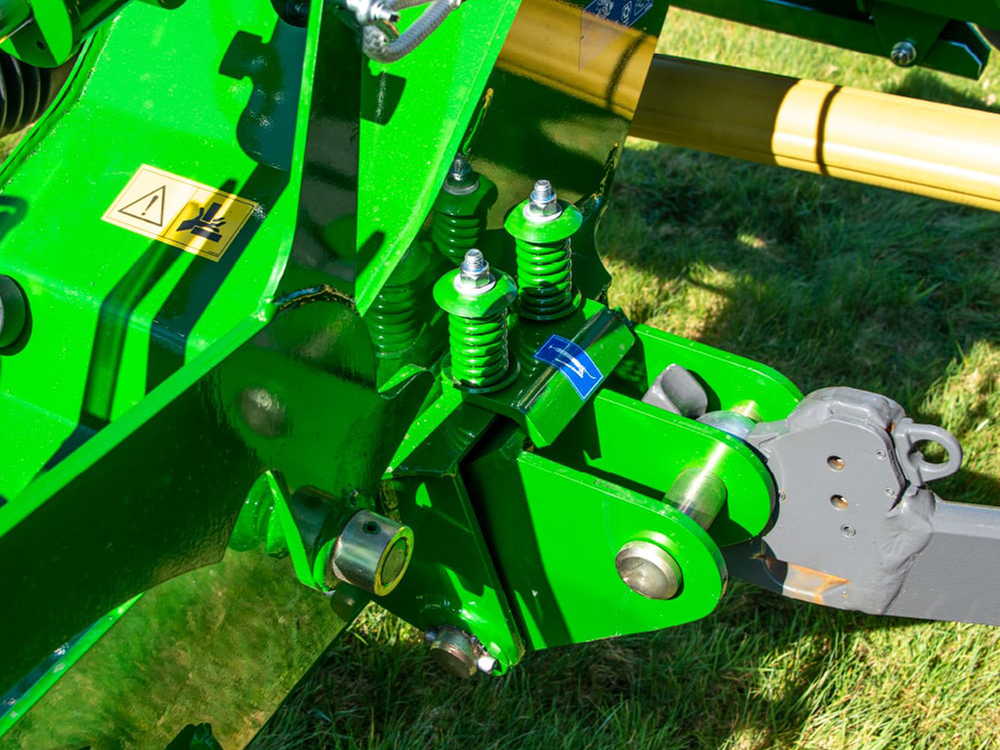

If the mower hits an immovable object, the mechanical break back will be triggered. The break back will swing the machine backwards and over the obstacle before the spring-loaded design automatically returns the cutting unit to the original working position when clear of the obstacle.

Features

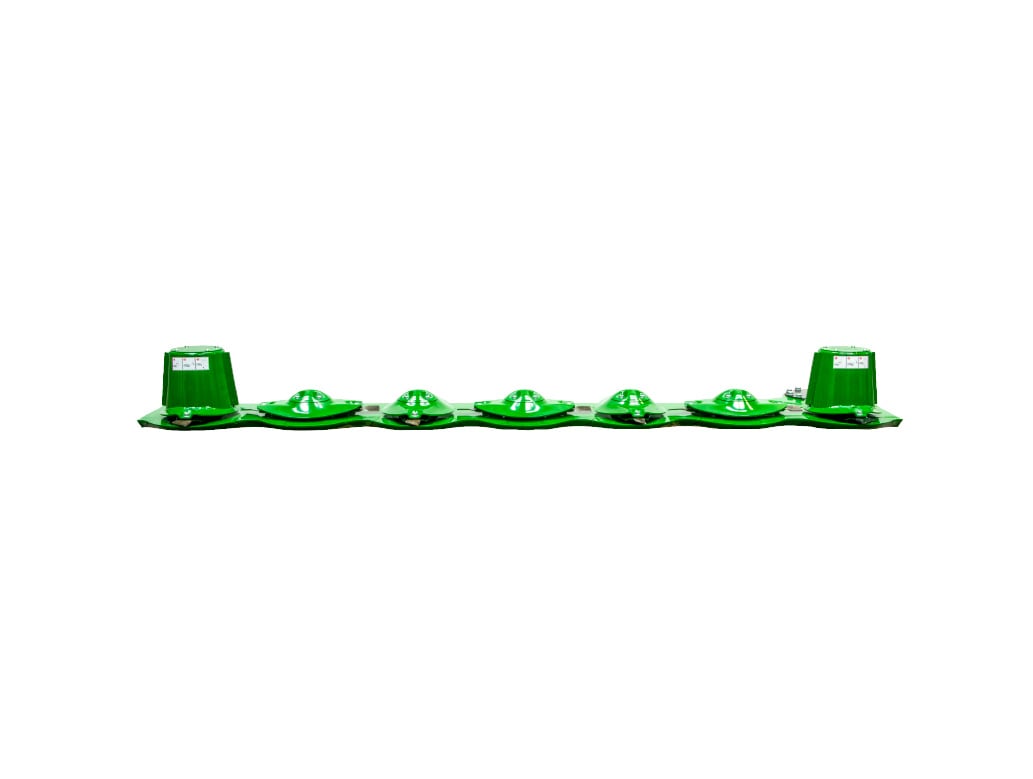

Cutter Bar Features

Features

Cutter Bar Features

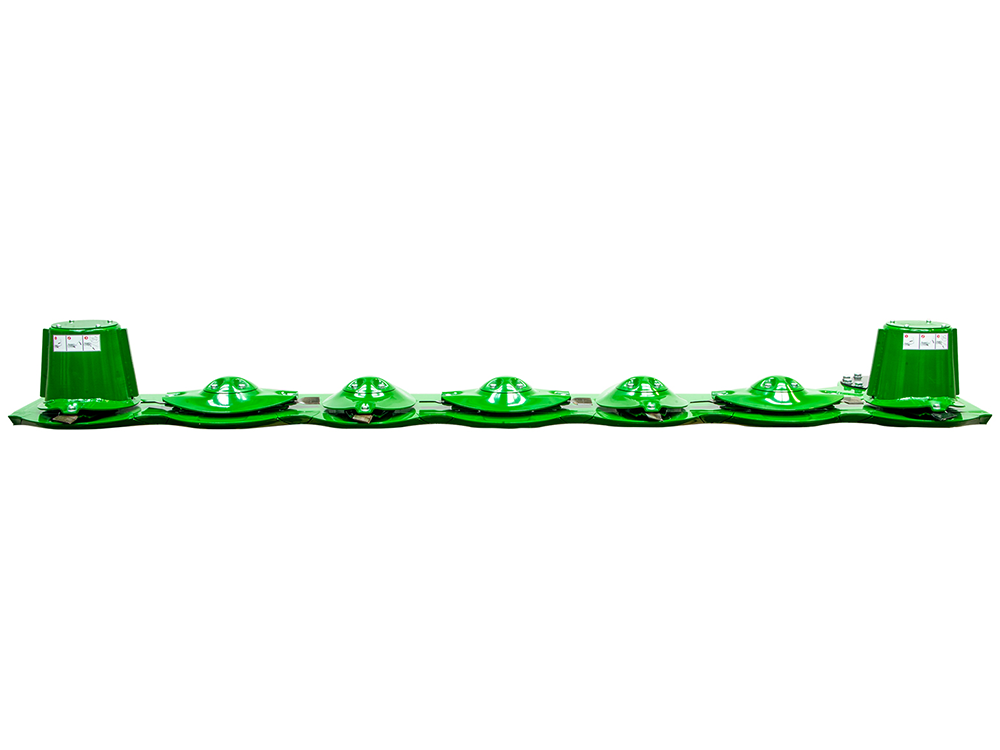

The McHale Pro Glide R310 is equipped with an extremely strong, fully welded cutter bar that houses 7 discs, which deliver a cutting width of over 3 Metres. The cutter bar possesses a number of features which include:

Read more
Features

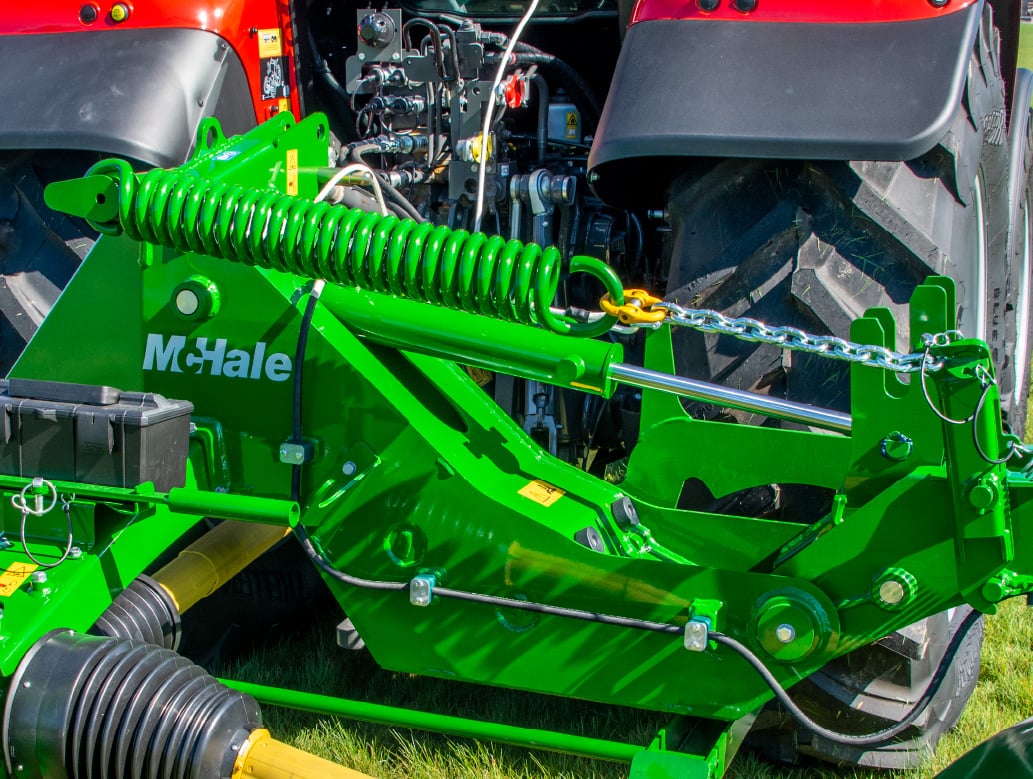

Cutter Bar Floatation

Features

Cutter Bar Floatation

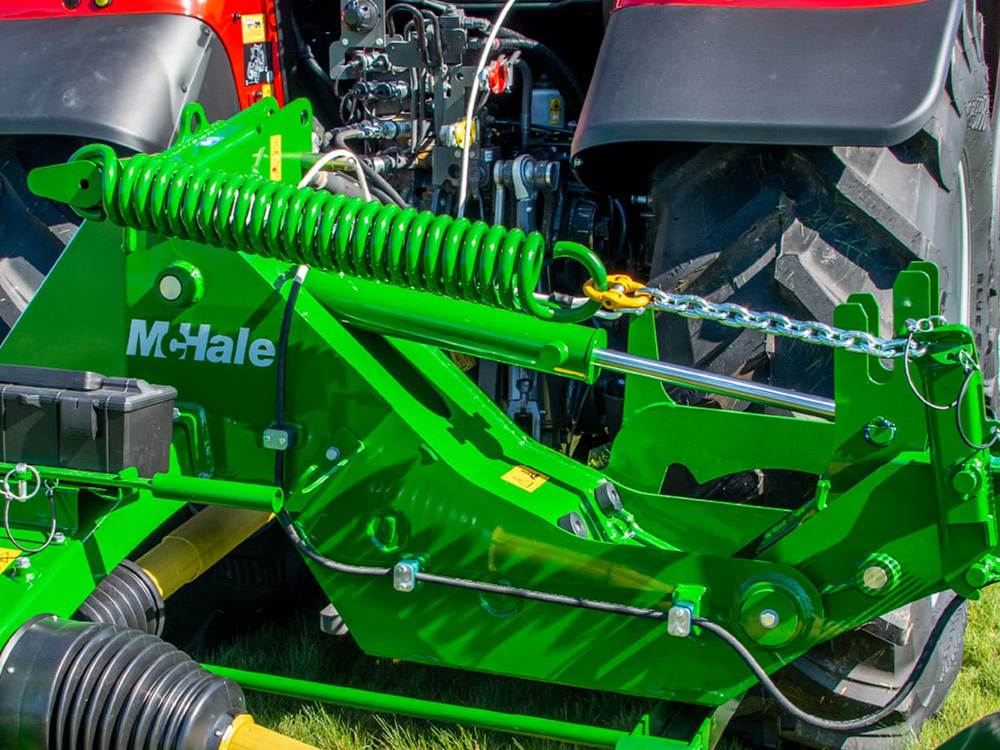

A large compensating spring provides excellent floatation across the full width of the Pro Glide R310 mower. Accompanied by McHale’s renowned 3D Ground Tracking Technology, this easily adjusted pressure system delivers superior cutting performance in a quick and simple manner.

Features

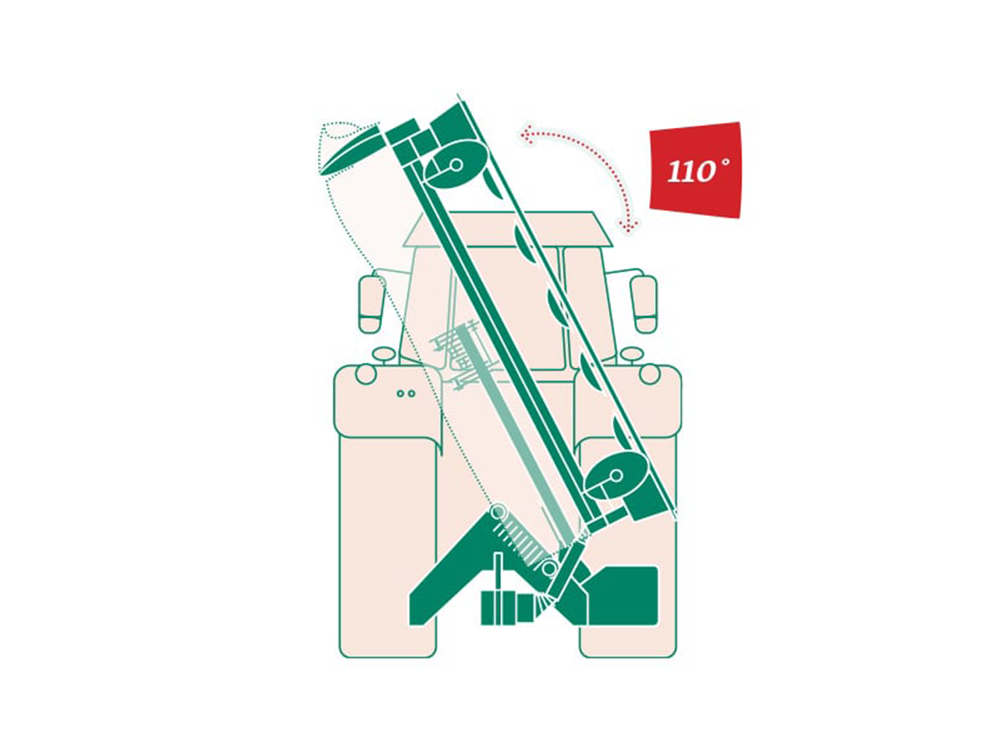

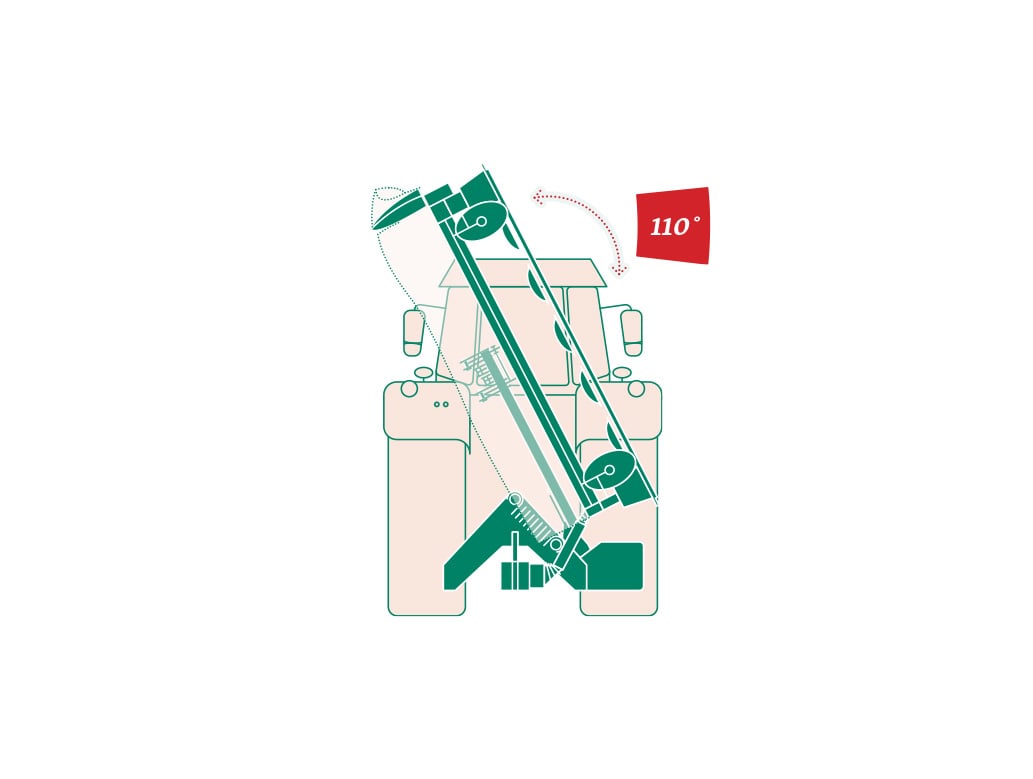

110° Transport Position

Features

110° Transport Position

For transportation, the McHale Pro Glide folds vertically to position itself behind the centre point of the tractor for safe transport. The transport height of the machine is reduced as the mower bed is at 110 degree angle.

Read more
Features

Optional Extras

Features

Optional Extras

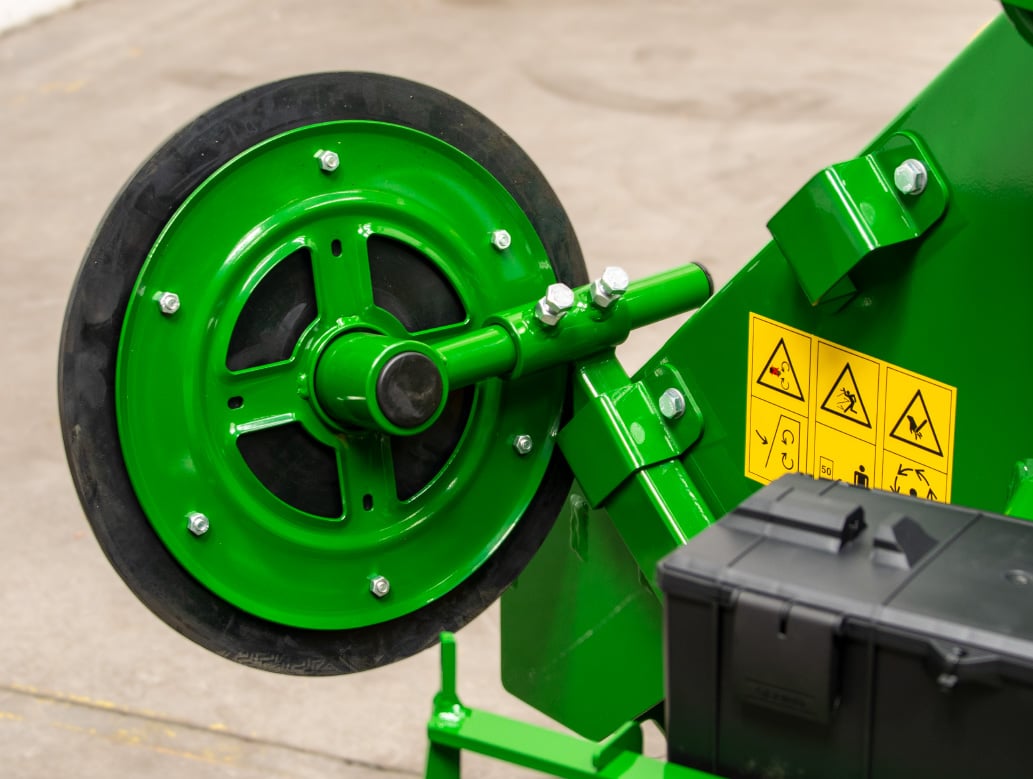

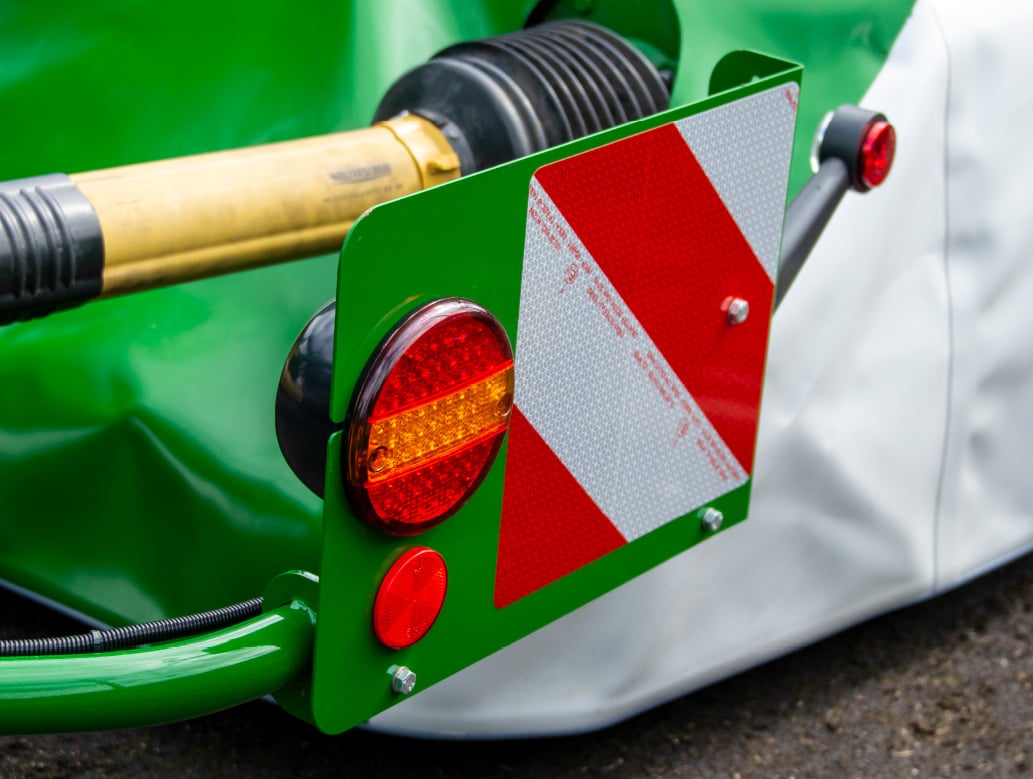

A Rear Lighting Kit and Adjustable Swathing Discs are available as optional extras

Read more

    McHale Pro Glide R310- Non Conditioner Mower

    The McHale Pro Glide R310 mower has excellent ground following capabilities delivering superior floatation. The mower is fitted with a patented ground adaptation technology which delivers 3-dimensional contour tracking of the ground. This allows the mower to easily mow on rough or undulating terrain and still deliver optimal results.

      Technical Specification

      Transport Width 1.9 m (75”)
      Transport Length 1.5 m (59”)
      Transport Height 3.7 m (146”)
      Weight 1,015 Kg (2,238 lbs)
      Cutting Width 3 m (118”)
      Swath Width 1.6 m – 2.3m (63”-91”)
      Number of Cutting Discs 7
      Total Number of Blades 14 (2 Blades per Disc)
      Cutting Height 25 mm – 75 mm

      (1” – 3”)

      Cutting Disc Speed 3,200 rpm
      Cutting Blade Quick Change

      (Double Sided)

      Adjustable Swathing Discs Optional
      Minimum Power Requirement 80 kW / 108 HP
      Linkage Attachment CAT II or CAT III (Rear) 3-Point linkage
      PTO Speed (Interchangable Gearbox) 540/ 1,000 rpm
      Rear Lighting Kit (Optional) LED Lighting: 12 V / 7- pin socket
      Hydraulic Systems Double Acting Hydraulic Supply with Float (Minimum)
      Minimum Pressure 180 bar (2,610psi)
      Minimum Hydraulic Flow Rate 20 l/min (4.54 gal/min) @ 180 bar (2,610 psi)
      Capacity 3.5 ha/h (8.5 acres/hour)
