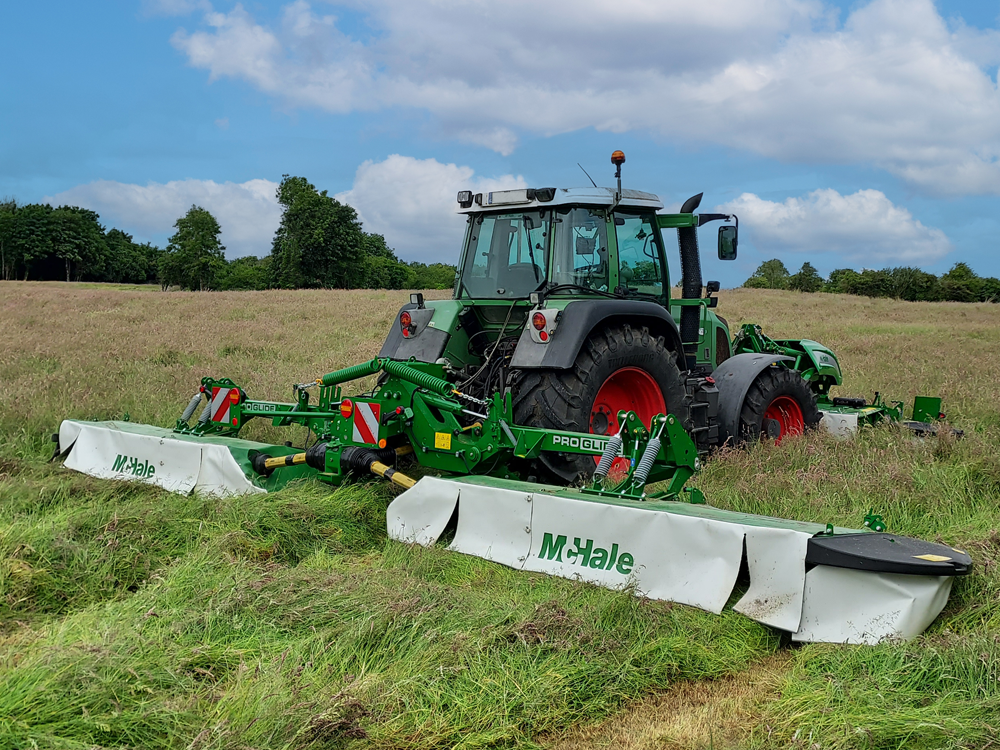

The McHale Pro Glide B910 mower has excellent ground following capabilities delivering superior floatation. The mower is fitted with a patented ground adaptation technology which delivers 3-dimensional contour tracking of the ground. This allows the mower to easily mow on rough or undulating terrain and still deliver optimal results.
Most rear mowers have a central pin which allows the mower to move left and right to adjust to changes in ground condition. The McHale Pro Glide is different in that it is fitted with a patented 3D ground tracking suspension unit, which allows the mower to:
This ensures that the Pro Glide cutter bar delivers better cutting performance.
| 3D Ground Tracking Technology | Unique Forward/Back Movement of 12° | Transverse Movement of 17° |

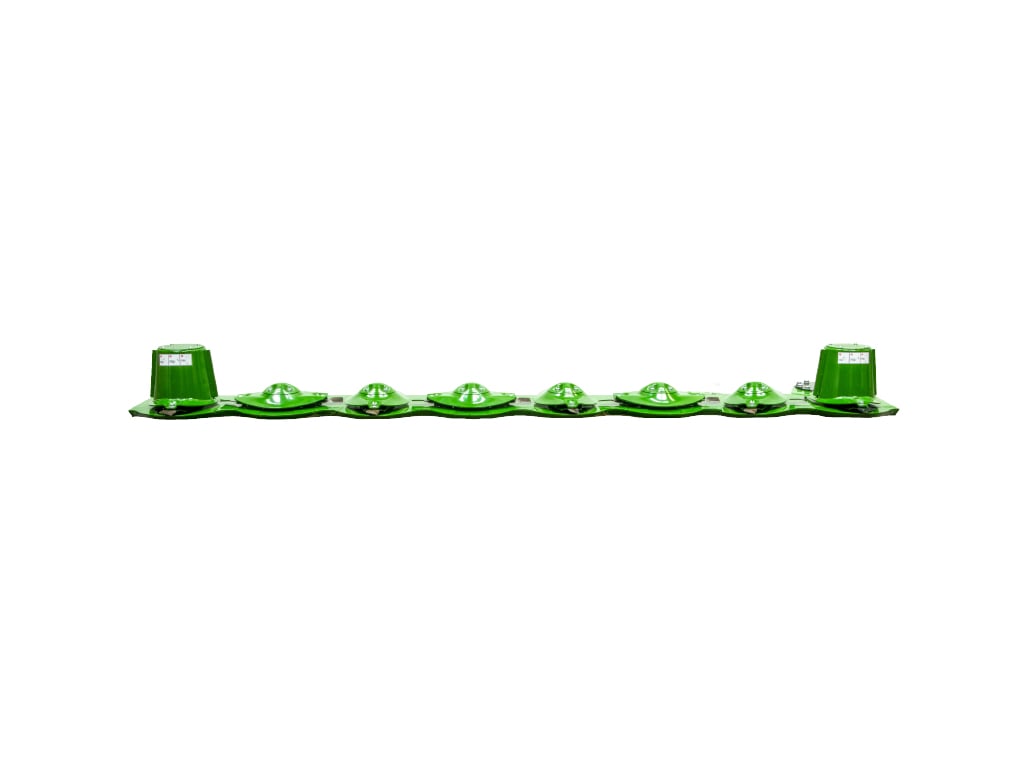

| Unique Stone Protection | Mechanical Break Back Protection | Heavy-Duty, Fully Welded Cutter Bar |
| Heavy-Duty 1,000 RPM Driveline | Low Profile Front Edge | Quick Fit Blades |
| 25mm (1″) Thick Gears | Adjustable Swathing Discs (Optional) |
|

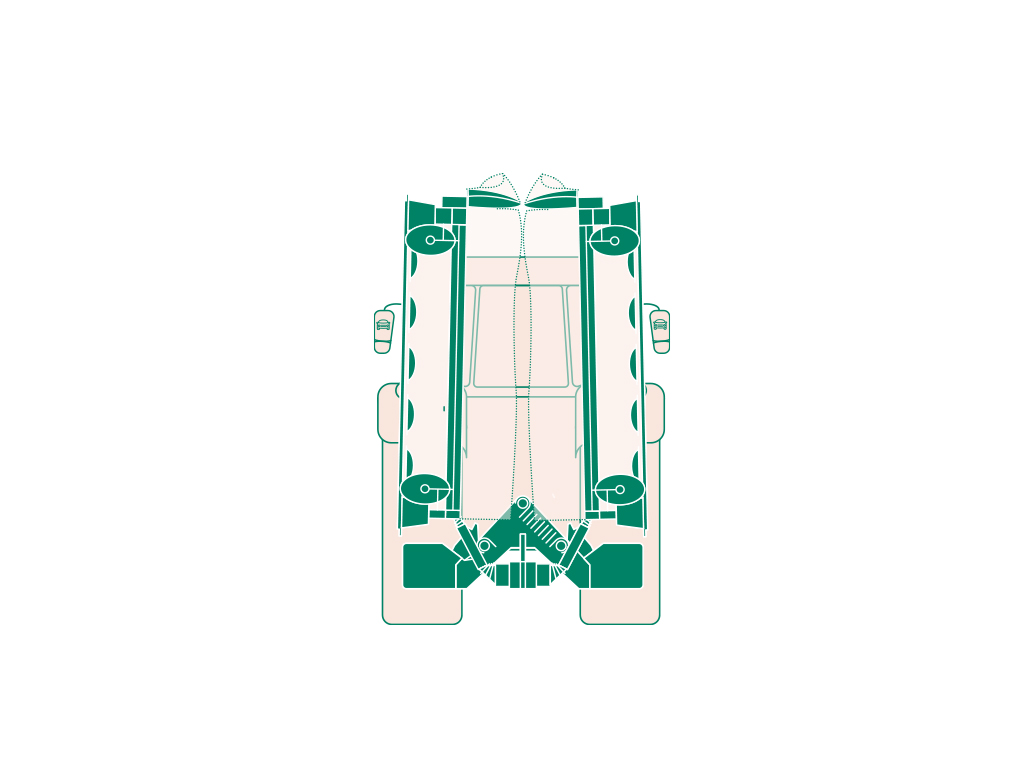

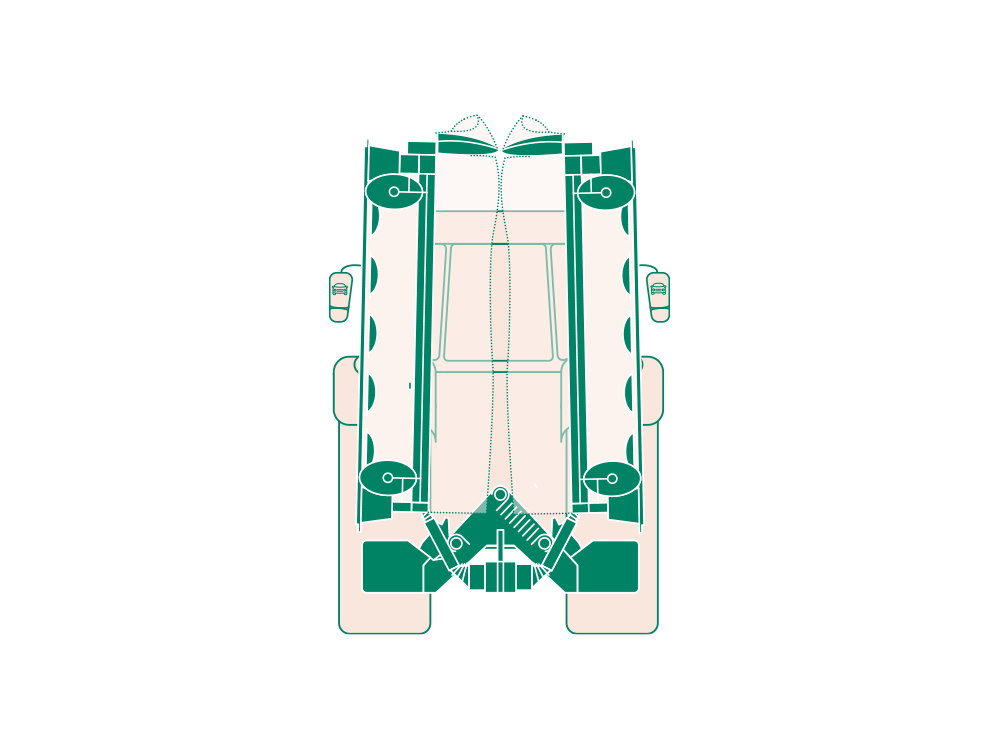

| Transport Width | 2.98m (117″) |
| Transport Length | 1.58m (62″) |
| Transport Height | 4m (158″) |
| Weight | 2,100kg (4,630bs) |

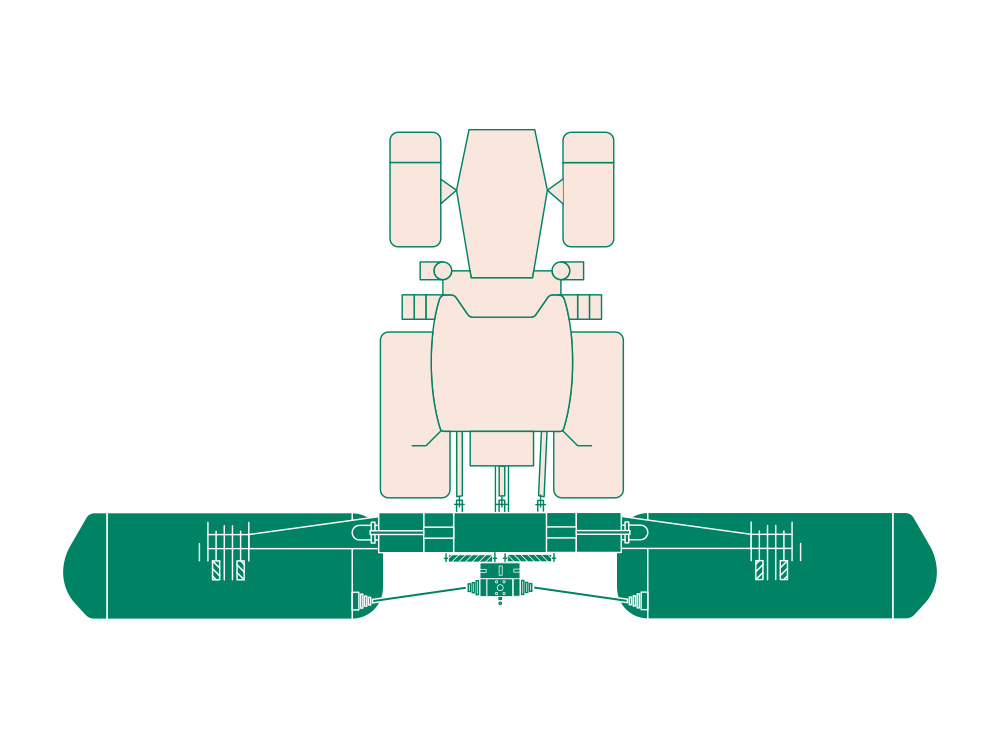

| Cutting Width | 9.1m (359″) |
| Swath Width | 1.7 m – 2.7m (67”-107”) |
| Number of Cutting Discs | 16 |
| Total Number of Blades | 32
(2 Blades per Disc) |
| Cutting Height | 25 mm – 75 mm
(1” – 3”) |
| Cutting Disc Speed | 3,200 rpm |
| Cutting Blade | Quick Change
(Double Sided) |
| Adjustable Swathing Discs | Optional |
| Minimum Power Requirement | 112 kW / 150 HP |
| Linkage Attachment | CAT II or CAT III (Rear) 3-Point linkage |
| PTO Speed (Interchangable Gearbox) | 1,000 RPM |
| Rear Lighting Kit (Optional) | LED Lighting: 12 V / 7- pin socket |
| Hydraulic Systems | 2X Double Acting Hydraulic Supply with Float (Minimum) |
| Minimum Pressure | 180 bar (2,610psi) |
| Minimum Hydraulic Flow Rate | 40 l/min (8.79 gal/min) @ 180 bar (2,610 psi) |
| Capacity | 9.5 ha/h (23.5 acres/hour) |
