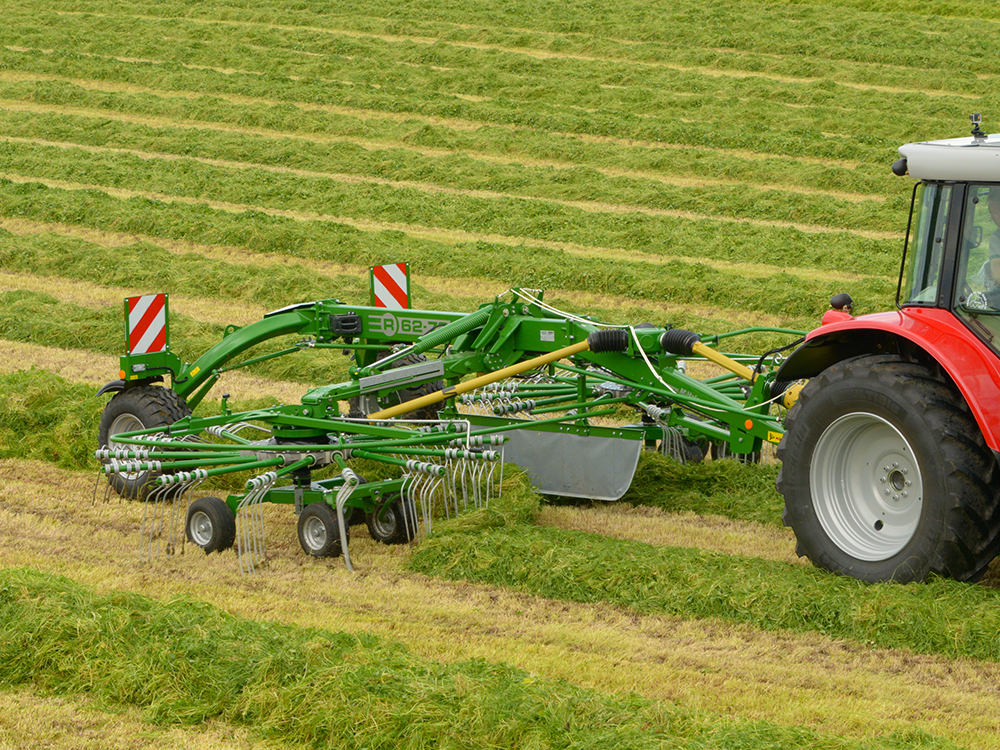

Building on their comprehensive range of grass machinery, McHale introduce their R 62-72 centre delivery rake.
McHale rakes have been tested in the world’s most difficult conditions, in order to deliver a strong and robust machine, which is efficient and reliable in all terrain. The McHale R 62-72 rake is an ideal machine for those who want to get the best quality fodder, by delivering an aerated swath. The R 62-72 delivers an ideal swath for maximum baling and harvesting output.

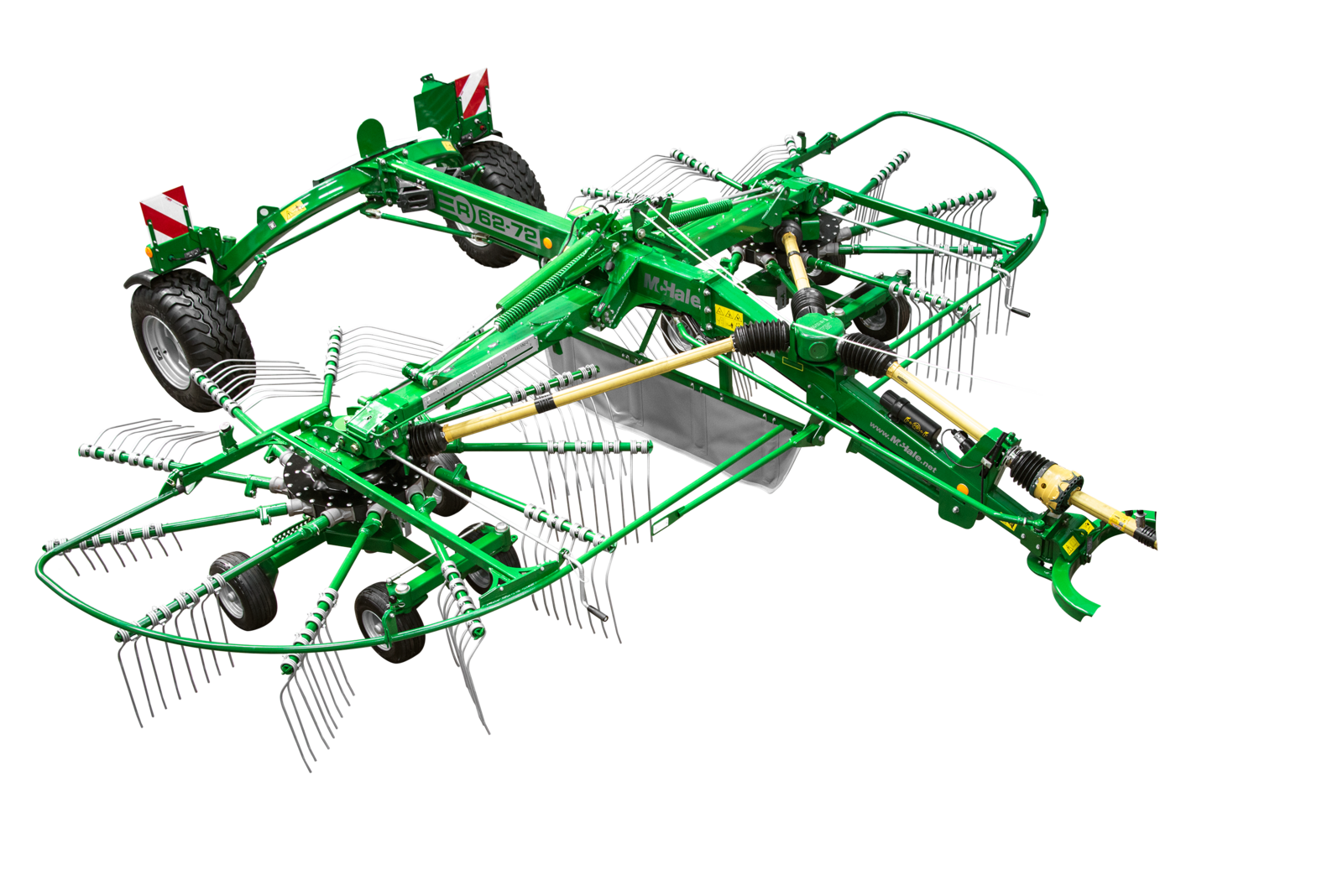

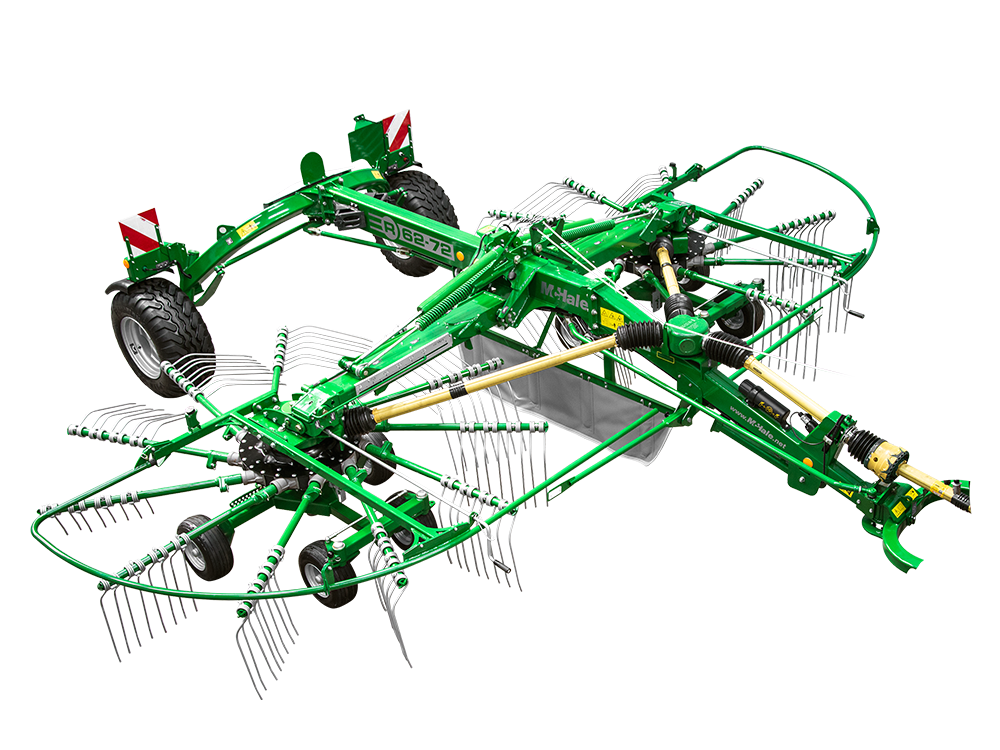

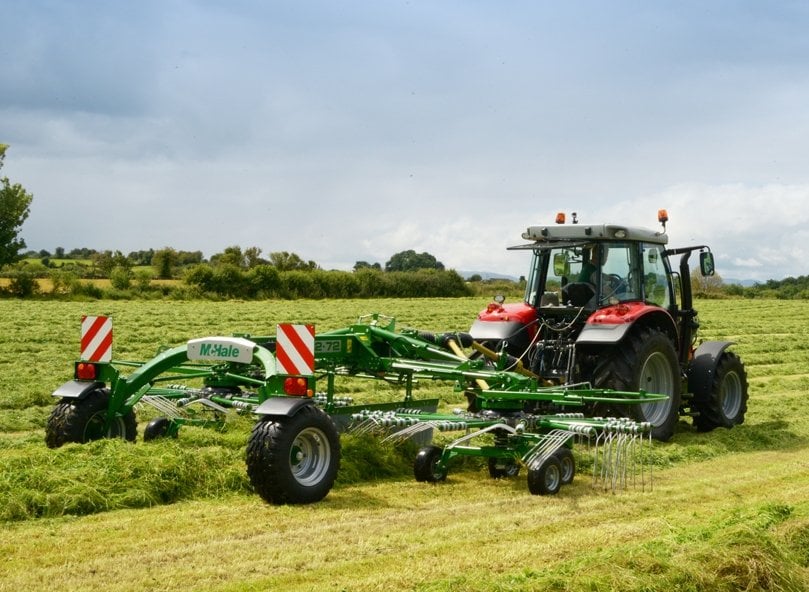

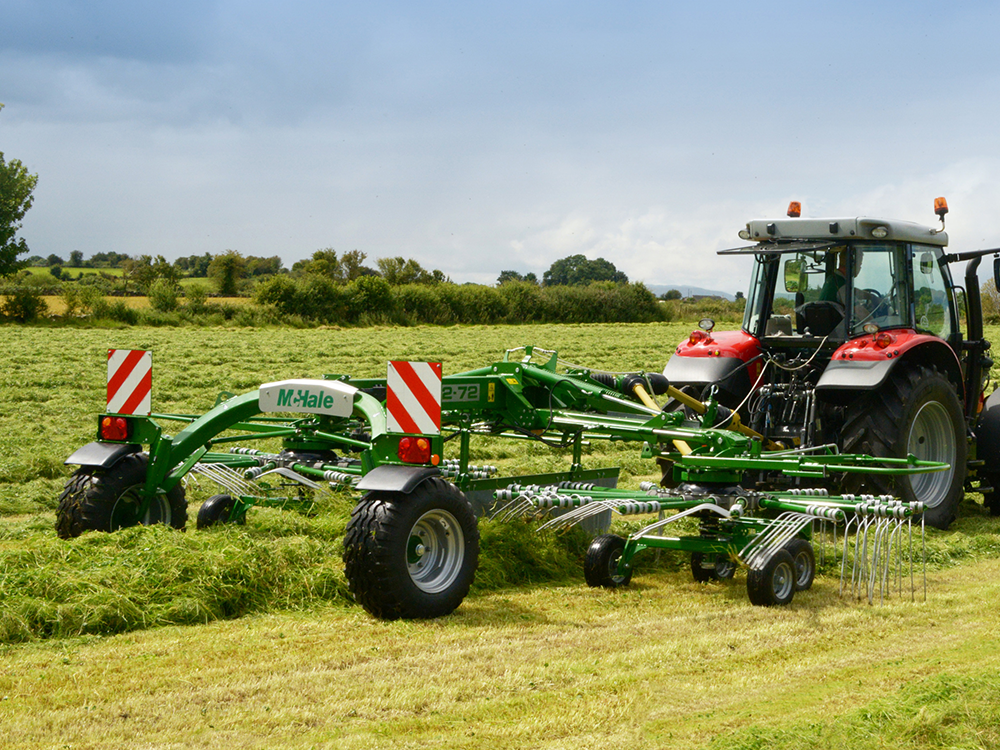

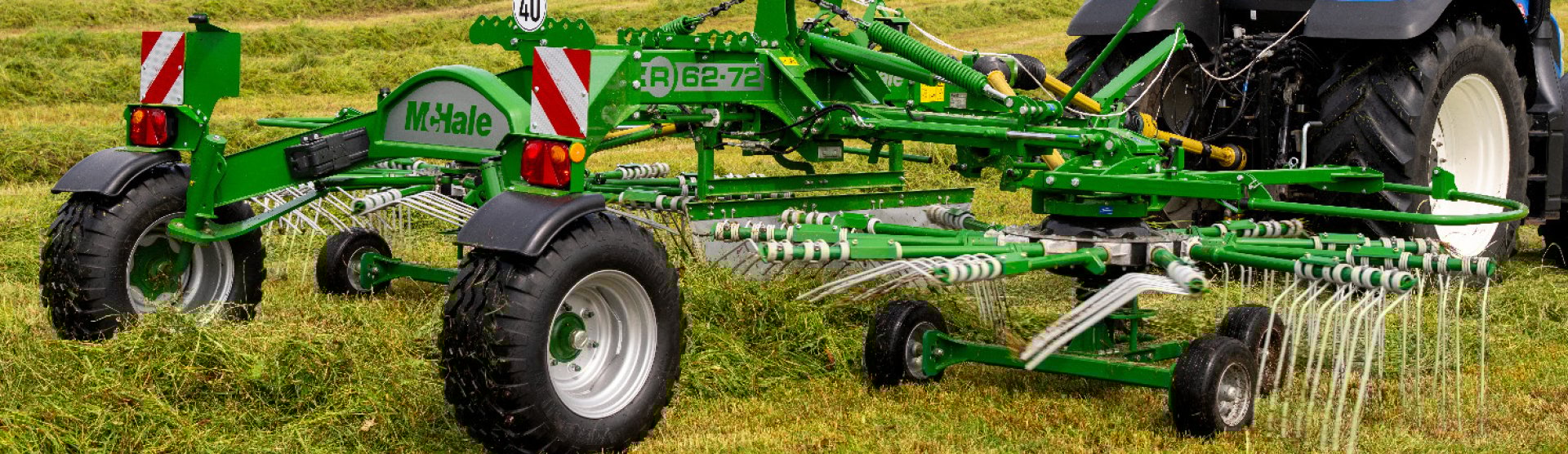

Download Product PDFThe McHale R62–72 Centre Delivery Rake is a compact rake with a working width ranging from 6.2m (20’ 4”) to 7.2m (23’ 7”). This compact rake has the ability to combine multiple rows or alternatively can form a row from grass which has been left fully spread after mowing. Built using a number of heavy-duty features as standard, the McHale R62–72 rake is equipped with 11 tines arms per rotor. The rotor bogie runs on 4 wheels to allow for smooth ground adaptation over various ground conditions.
McHale Heavy Duty Design | Incab Width Adjustment | Steering Axle |
380/55 – 17 tyres | Pivoting Headstock | Heavy Duty Wide Angle Driveline |
Tine Arm Cam Adjustment | High Speed Running Gear | Rotor Height Adjustment Indicators |
Transport Height under 4m |
The innovative engineering on all McHale centre delivery rakes is based on a high-quality, heavy-duty design.
Following testing in some of the world’s most difficult conditions, a robust and durable chassis design ensures efficient and reliable operation in all types of terrain.

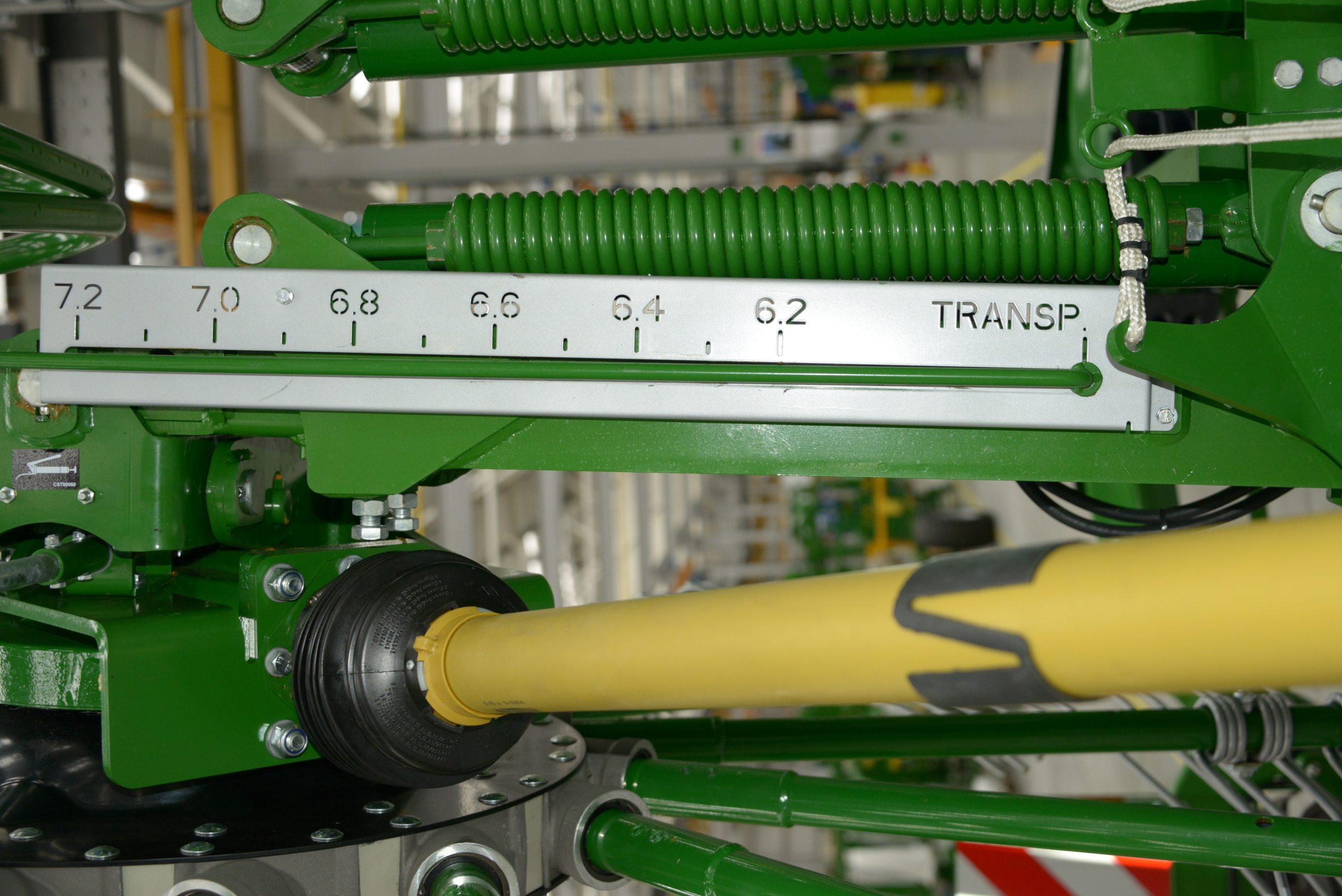

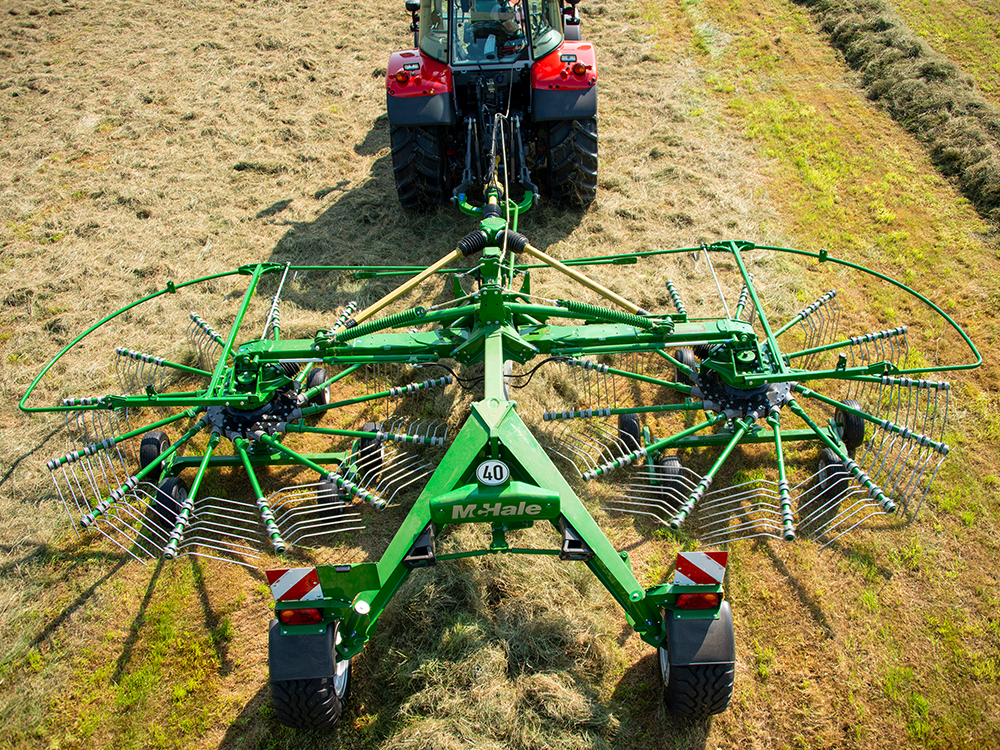

The McHale R 62-72 twin-rotor centre delivery rake offers a number of different working widths from 6.2 to 7.2 metres (20’ 4” – 23’ 7”). The variable working width is adjusted hydraulically using a spool in the tractor cab.
All McHale rakes come with Rotor Height Adjustment as standard, ensuring a clean delivery of crop to the swath. By adjusting the height of the rotors, the operator can reduce soil contamination in the swath.
Using easily adjustable winding handles on each rotor, the working height of the rotor tines can be altered. A rotor height indicator allows the operator to select a height from the 1-5 scale for accurate height adjustment on both rotors.
Read lessThe rotors on all McHale rakes are controlled by a smooth-running cam track. The grease filled cam track is a sealed unit providing a longer life and uses two high quality bearings on each tine arm. These
bearings are specially designed and sealed in order to reduce wear. If required, the rotor arms can be easily replaced by removing just three bolts.
All McHale rakes are equipped with Individual Rotor Lift as standard which is controlled using a single acting spool and in cab control box.
By simply toggling left or right, along with activating the tractor’s hydraulic spool for lifting and lowering the rotors, the operator can raise/lower each rotor individually. When the toggle switch is returned to the central position, both rotors can be lifted and lowered together. The control console can also be removed for safe keeping when not in use.
Read lessIn order to prevent damage to your baler or harvester, all McHale rakes are equipped with Tine Savers.
These ensure that if a tine does break, it will remain on the tine arm and will not fall into the swath. Tine Deflector Plates are also fitted to all tine arms to deflect tines from coming into contact with the neighbouring tine arm.

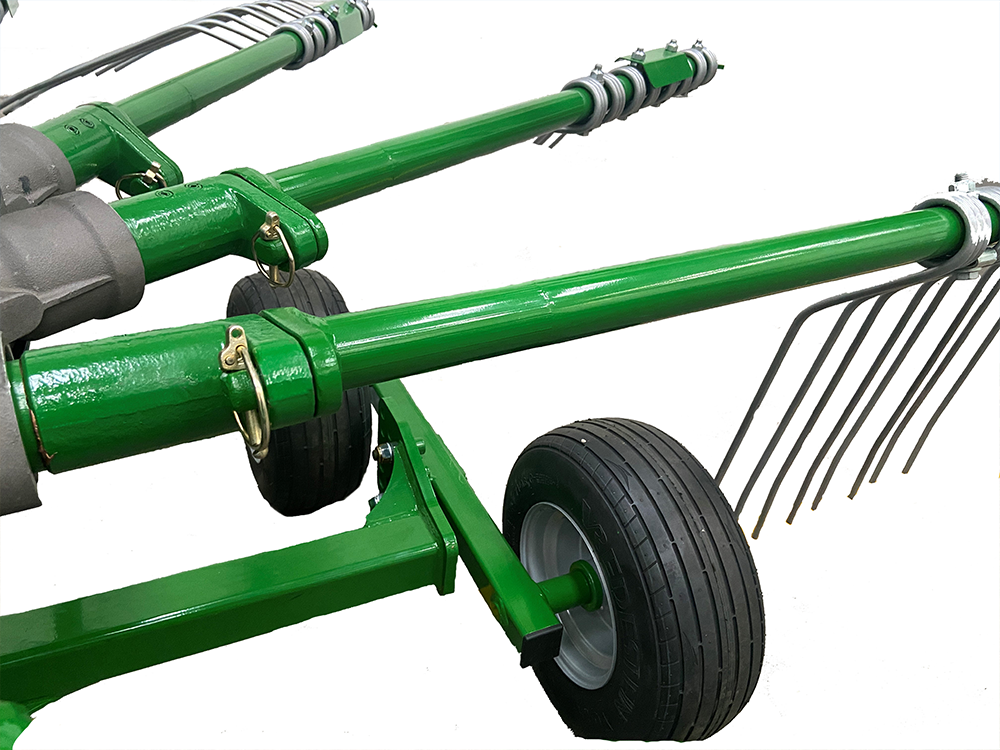

Read lessFor operator convenience, all McHale rakes are fitted with easily removable tine arms. The profile of the tine arm is designed with a
simple and positive holder which prevents twisting and bending.
The R62-72 is equipped with 11 tine arms while the R68-78 & R80-90 are fitted with 13 tine arms. Each machine has the ability to store 6 tine arms on the machine chassis.

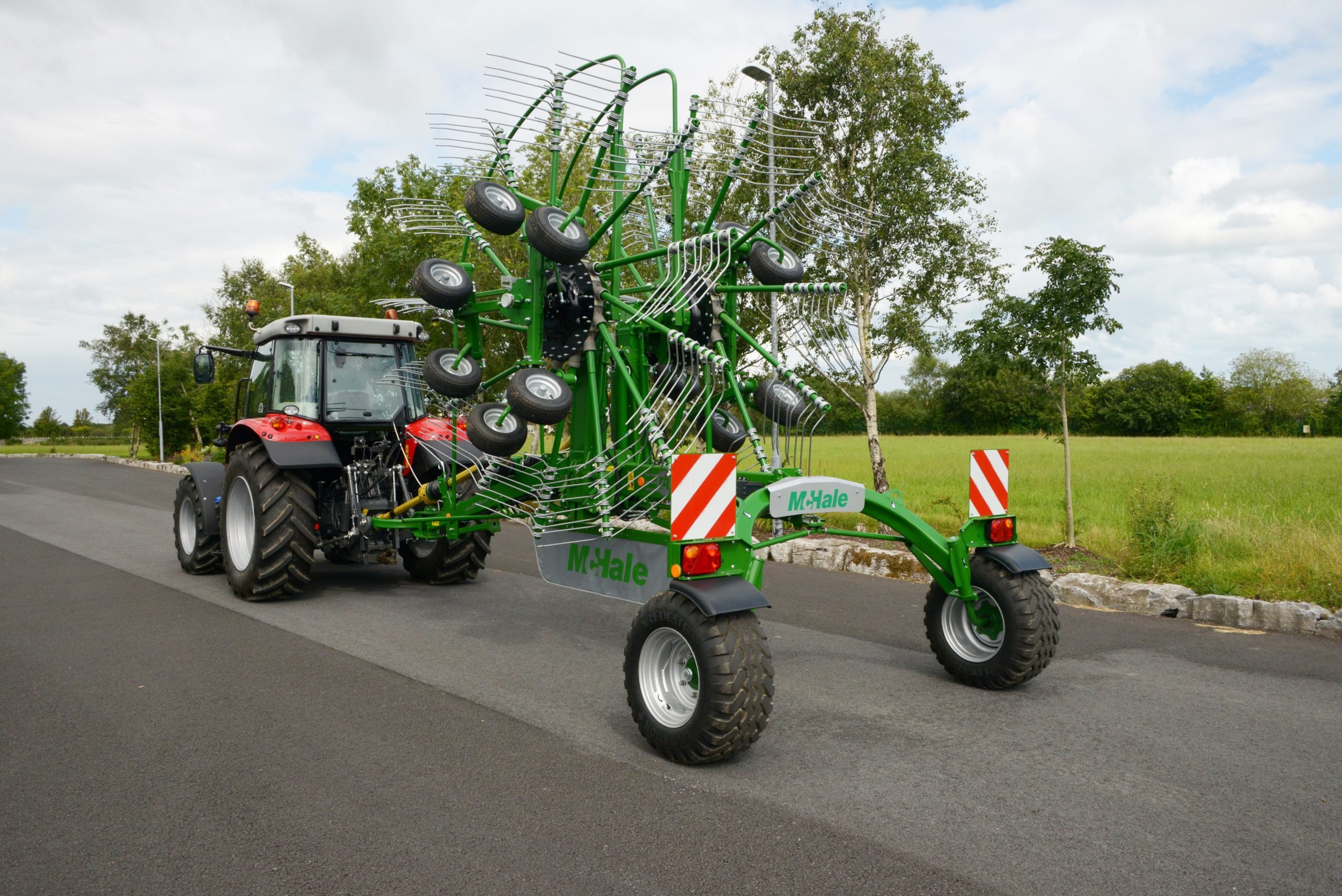

Read lessConnected to the headstock of the machine, this steering system follows perfectly behind the tractor when in transport and during field operation to leave na neat swath on corners or bends. It also allows for
even the tightest of gateways to be easily navigated upon entry or exit of the field.
McHale rakes are equipped as standard with wide tyres to give excellent stability on the road and minimise compaction in the field.
All McHale rakes are equipped with a pivoting headstock for an enhanced movement range of up to 80°, allowing easy navigation of difficult turns. The headstock also has a transverse range of movement for working on uneven terrain. The headstock is fitted with Cat II linkage mounts for easy attachment by the operator to various size tractors
The McHale rake range is fitted with a wide-angle Y-Shaped drive line which is positioned on top of the chassis. Power is transmitted through heavy-duty tubing using Walterscheid drive shafts.
The drive shaft covers allow for easy and simple access to all greasing points without the need for any untidy anti-rotation chains on the shaft guards. The use of these guards’ results in improved operator safety by delivering guards with a longer service life

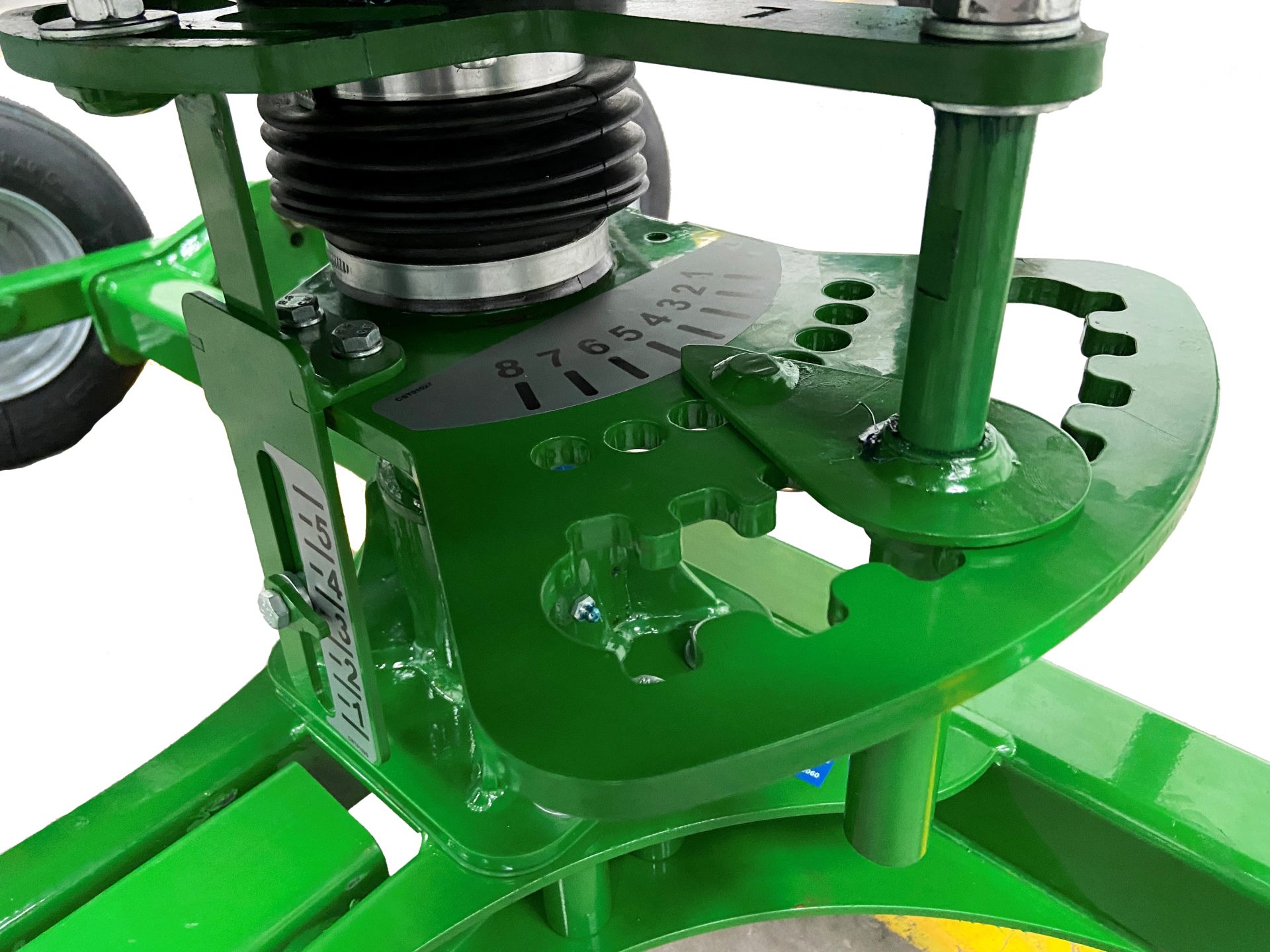

Both rotors are fitted with Tine Arm Cam Adjustment to allow the speed at which the crop is distributed to the row to be adjusted. The cam angle for the tine arms can be simply adjusted to cater for all working widths and crops. Operators can choose from 1-8 positions to determine when the crop is released to the swath.
The R 62-72 is designed to deliver a tight turning movement and high output. The low-maintenance steering system is effective in even the tightest turns.

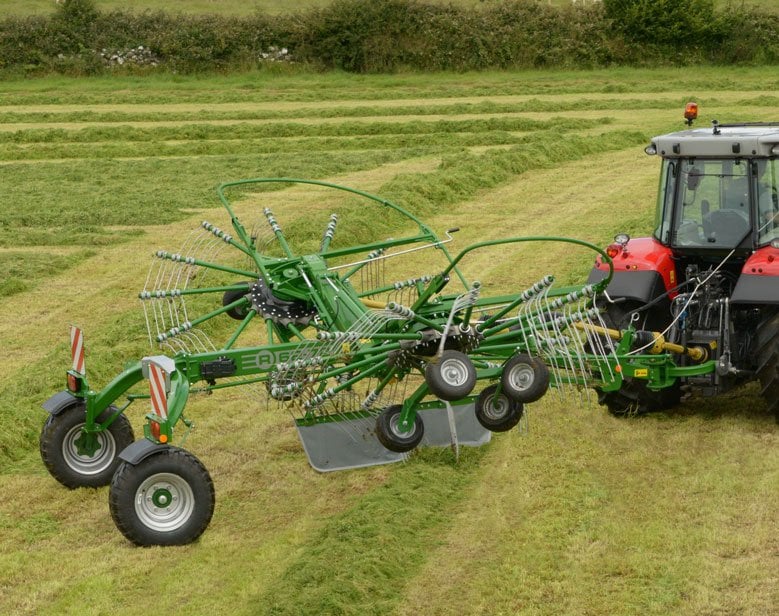

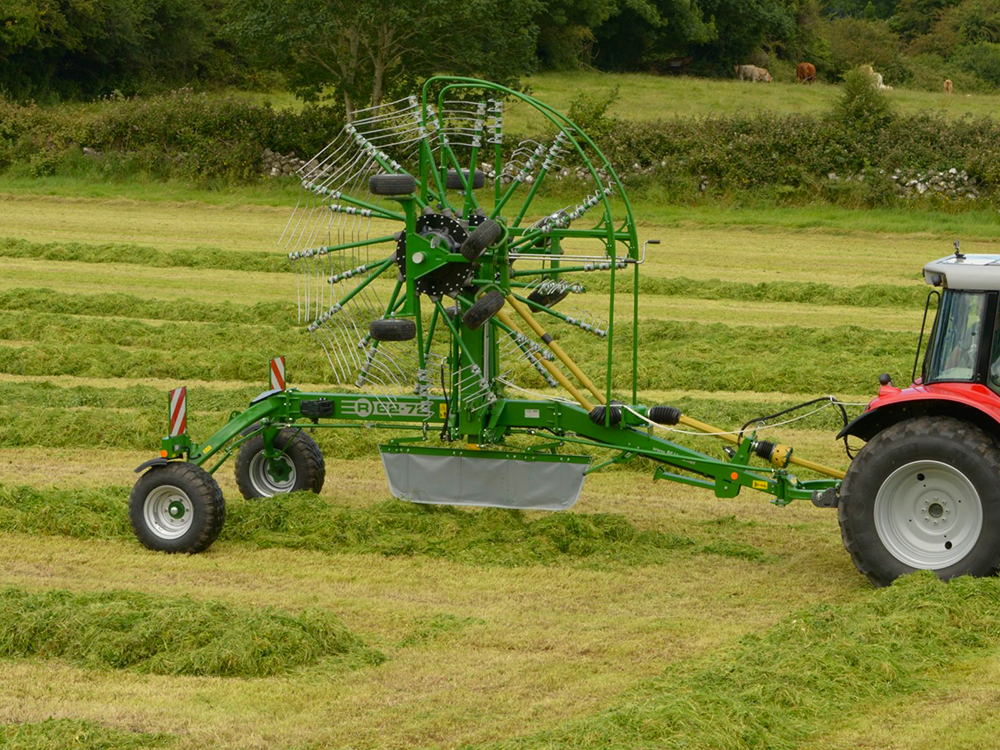

Once at the field the crop deflector moves automatically into the working position as the rake is being folded down. McHale rakes are specifically designed to deliver a high headland or swath clearance.

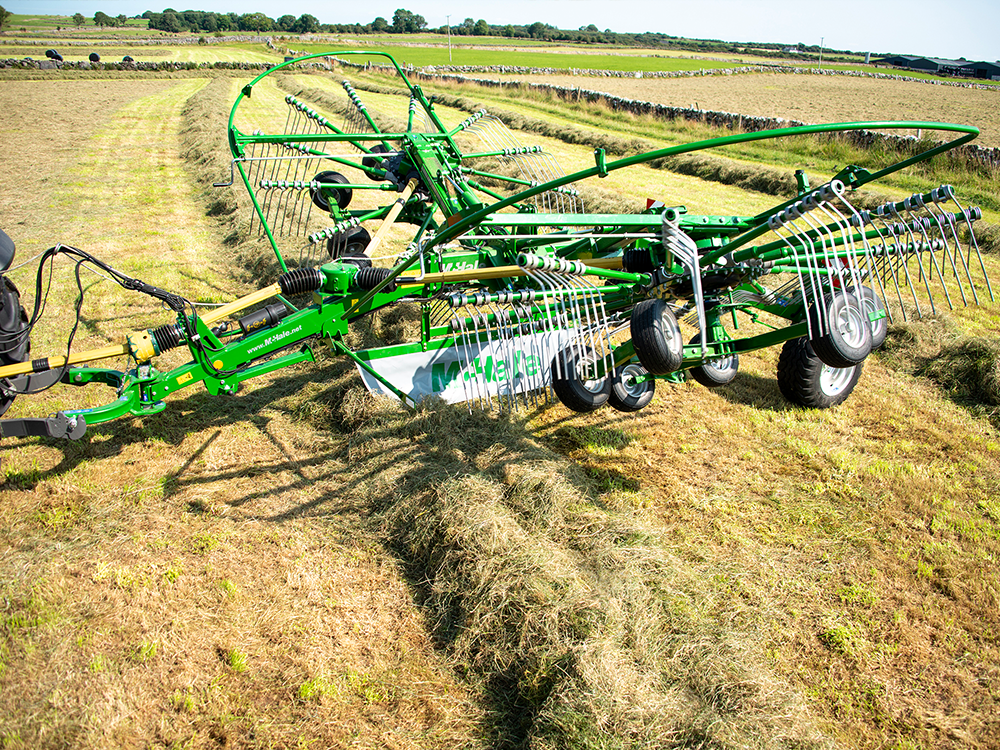

Read lessThe cranked tines on each tine arm guarantee the cleanest sweep,
delivering uncontaminated fodder into the aerated swath. All tines have a diameter of 10mm and also feature three coils, ensuring an easy flow of crop is delivered to the swath while remaining gentle on the ground.

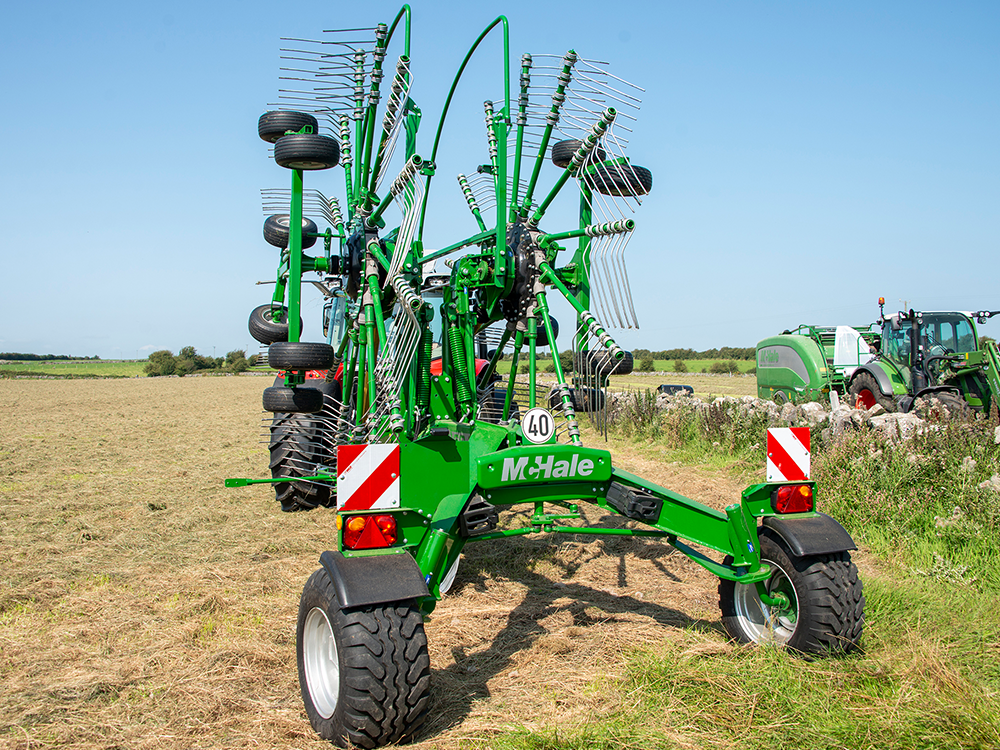

For safe transportation on the road, the rotors fold up and move down into the locking position delivering a transport height under 4m.
The width of all rakes is under 3m making the machine easily manoeuvrable even on narrow lanes. For increased safety, all rakes come fitted with mudguards, reflective marker boards and road legal lights as standard.
Read lessThe McHale R62–72 Centre Delivery Rake is a compact rake with a working width ranging from 6.2m (20’ 4”) to 7.2m (23’ 7”). This compact rake has the ability to combine multiple rows or alternatively can form a row from grass which has been left fully spread after mowing.
Tune into the first of our three part series to find out how McHale experts setup and adjust their machines to save money and obtain maximum efficiency and output.
To view the subtitles in your preferred language, please click on the settings icon in the bottom right hand corner of the video and select the required language.
Staunton Agri is a family run contracting business based in Islandeady, near Castlebar, Co. Mayo. We caught up with Stephen to hear about the business and how it has grown over the years with the help of their McHale machinery which includes two McHale F5500 balers, a 991 High Speed round bale wrapper and a R62-72 centre delivery rake.
3 Metre Swath Gathering | 2 Swaths* |
Mounting Type | 2 Point Linkage |
Mounting Category | Cat I & Cat II |
Incab Adjustable Working Width (m/ ft) | 6.2m – 7.2m (20’ 4” – 23’ 7”) |
Number of Rotors & Rotor Wheels | 2 rotors / 4 wheels per rotor |
Rotor Diameter (m/ ft) | 2.9 m ( 9’ 6”) |
Number of Arms | 11 |
Number of Tines Per Arm | 4 |
Tine Diameter (mm) | 10mm / 3 Coil |
PTO Shaft Speed (rpm) | 540 RPM |
PTO Driveline | Y Gearbox |
Hydraulic Requirements | 1 x Single Acting &1 x Double Acting |
Main Greasing | Grease Nipples |
Axle & Wheels | 6 stud – 380/55/17 |
Transport Width | 2.84 m (9’ 4”) |
Transport Height | 3.75 m (12’ 4”) |
Length | 6.05 m (19’ 8”) |
Weight | 1890 kg (4167 lbs) |
*Maximum raking width will be determined by the operator, based on crop conditions, field conditions and the finished swath width required. The R62-72 rake when adjusted above 6.8m is designed to leave a wider row for a harvester |
