991 LBER Single Dispenser

991 LBER Single Dispenser Linkage Wrapper

McHale’s round bale wrapper range has been designed with the demands of today’s farmer and contractor in mind. This common-sense approach to design ensures that each machine’s operation is kept simple and user friendly.

Farmers and contractors all over the world are under pressure to reduce costs and increase output. To help with this, McHale concentrate on features like the patented hydraulic ground supported bale damper system, patented high-speed transfer system, patented tip rollers, hydraulically operated cut & hold system, 750mm dispensers and high specification components.

These features ensure long working life, reliability and a machine rugged enough to handle the toughest crops, heaviest bales and roughest ground conditions.

Download Product PDF

Overview

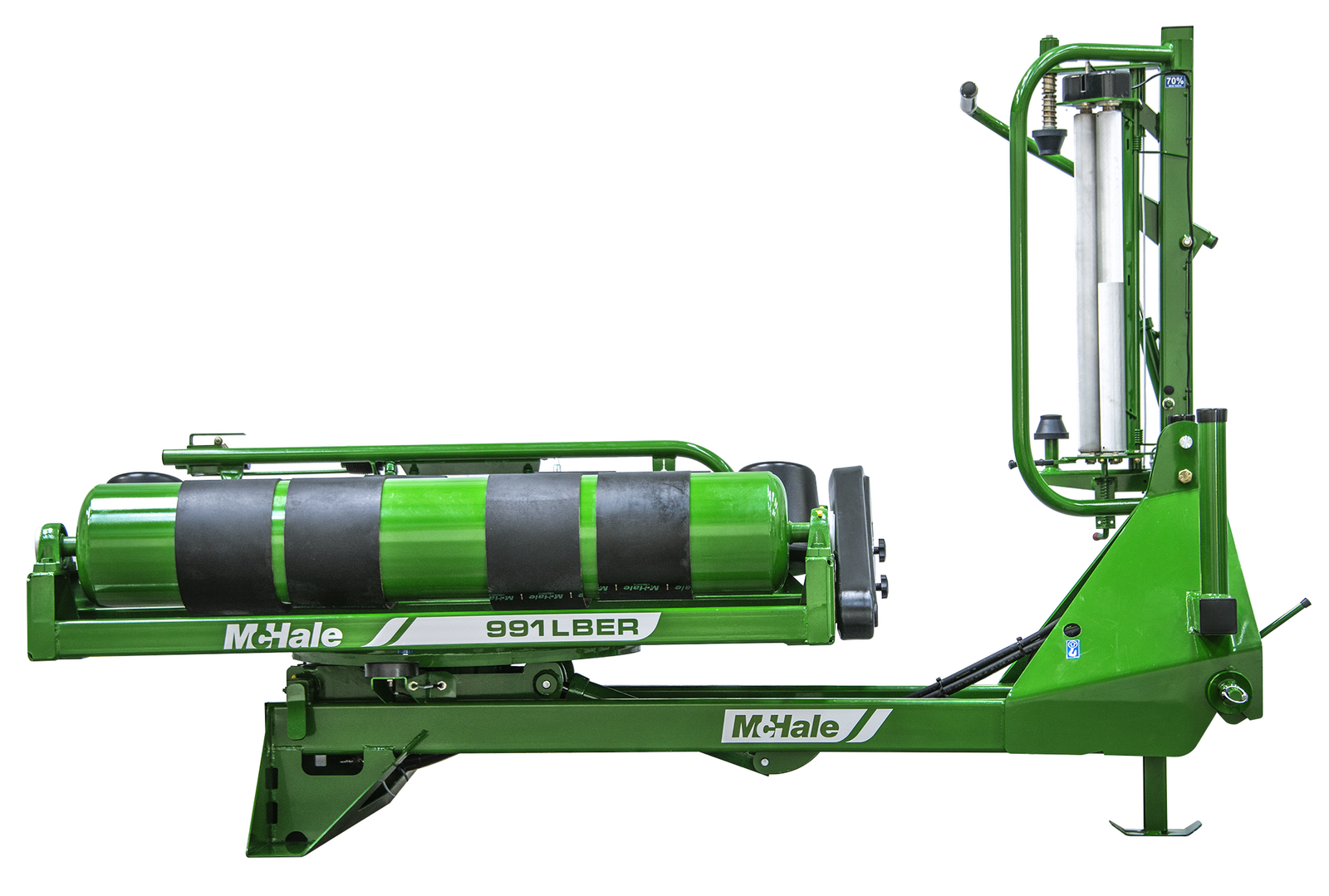

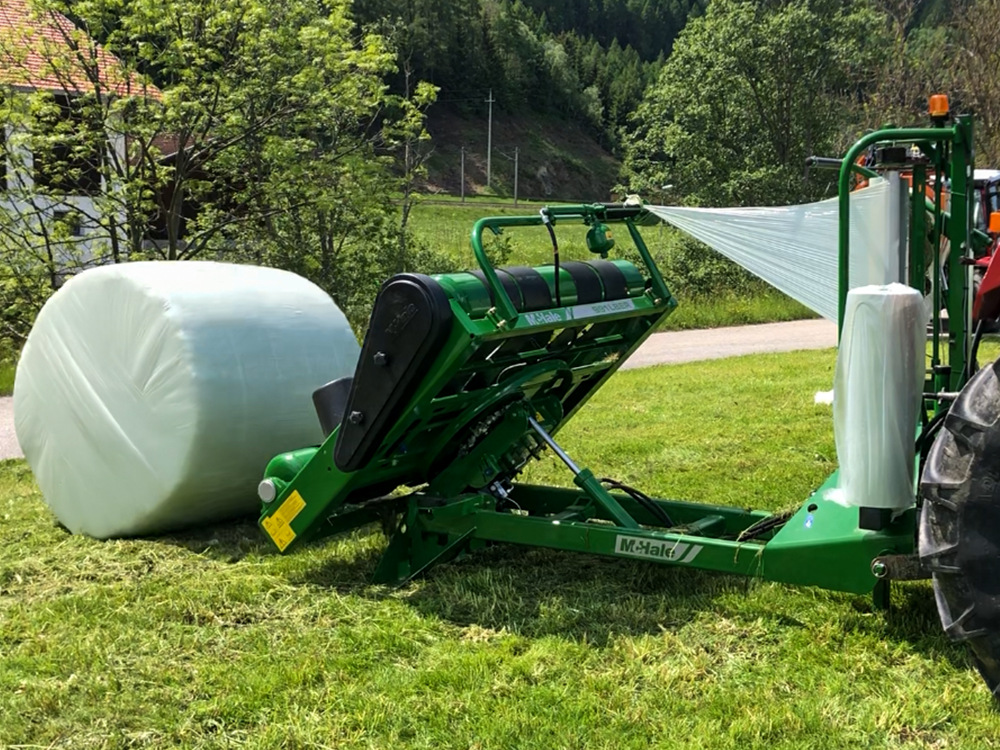

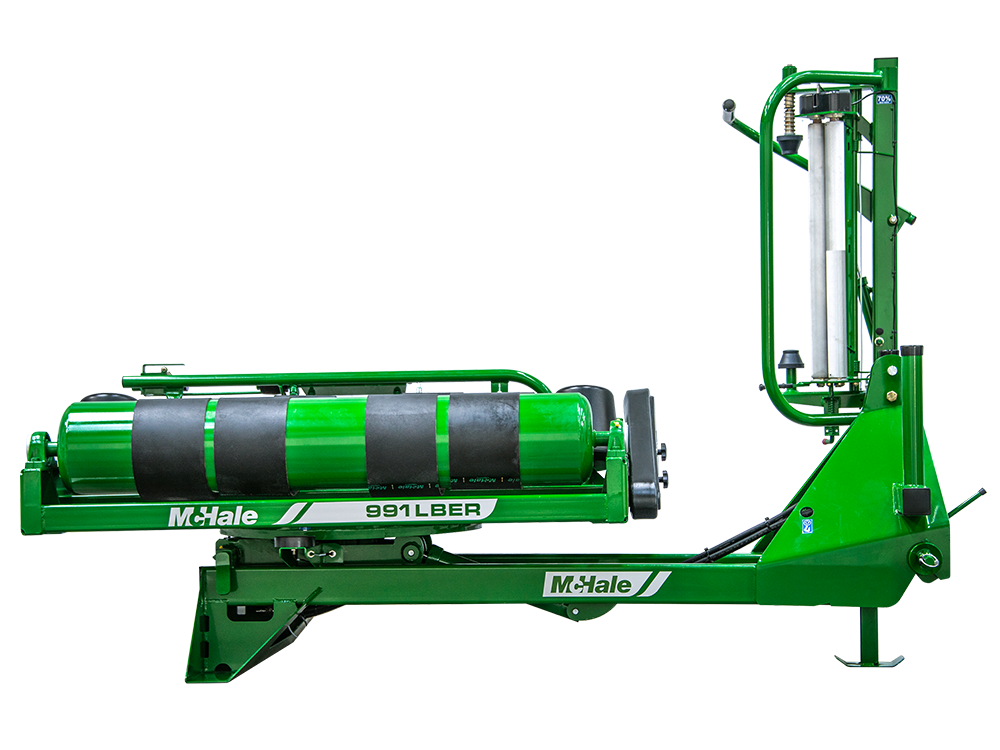

The McHale 991 L range of linkage round bale wrappers is the first choice for farmers and contractors who are interested in wrapping bales at the storage site. The 991 L range offers the perfect blend of tried and tested technology with solid construction and reliable performance. There are three models in the 991 linkage round bale wrapper range.

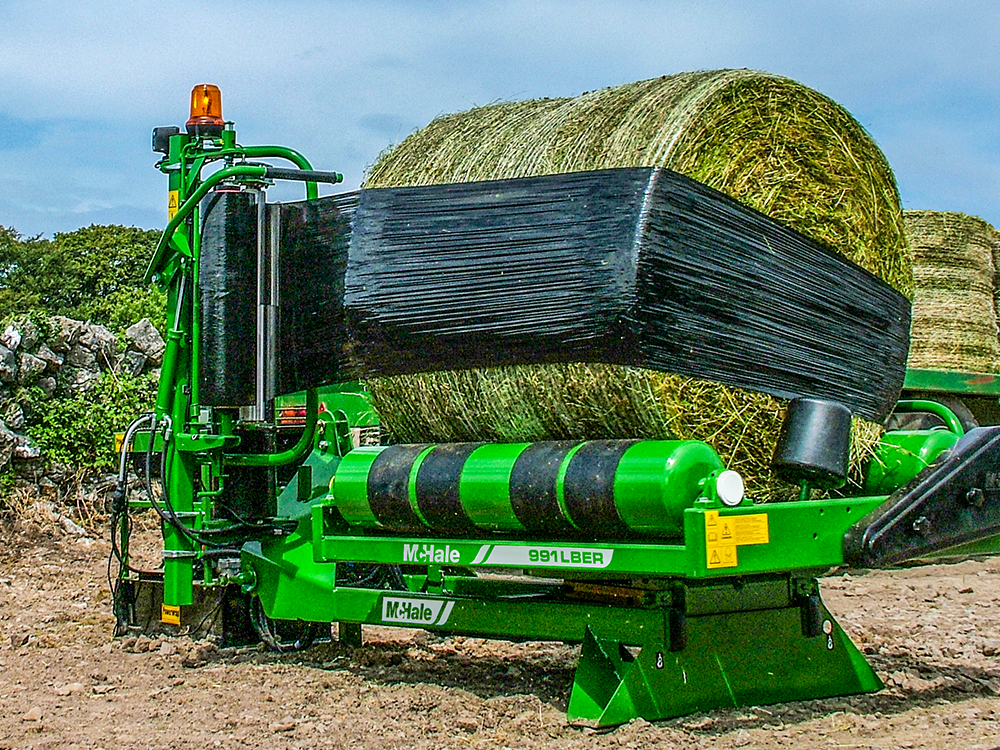

The 991 LBER is fully automatic and can be controlled via the control console. The control console on the 991 LBER enables the operator to change the round bale wrapper settings and select the desired number of film layers. When set, one touch of the auto start button operates the complete cycle from start to finish. The wrapper applies the pre-set number of layers, then stops and tips the bale automatically.




Standard Features

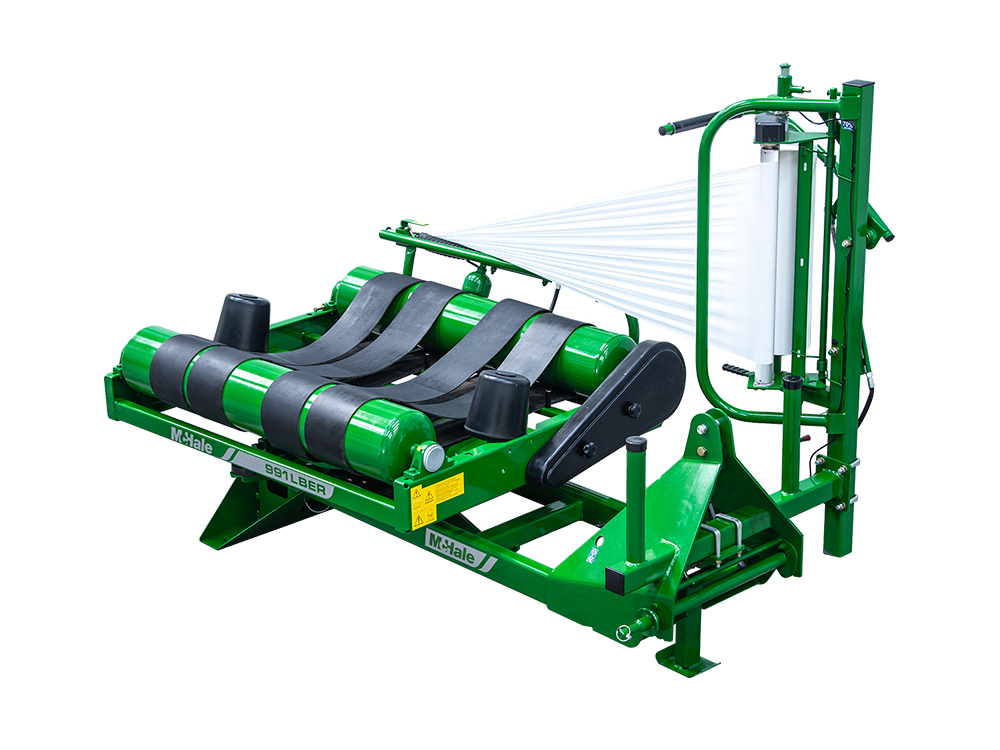

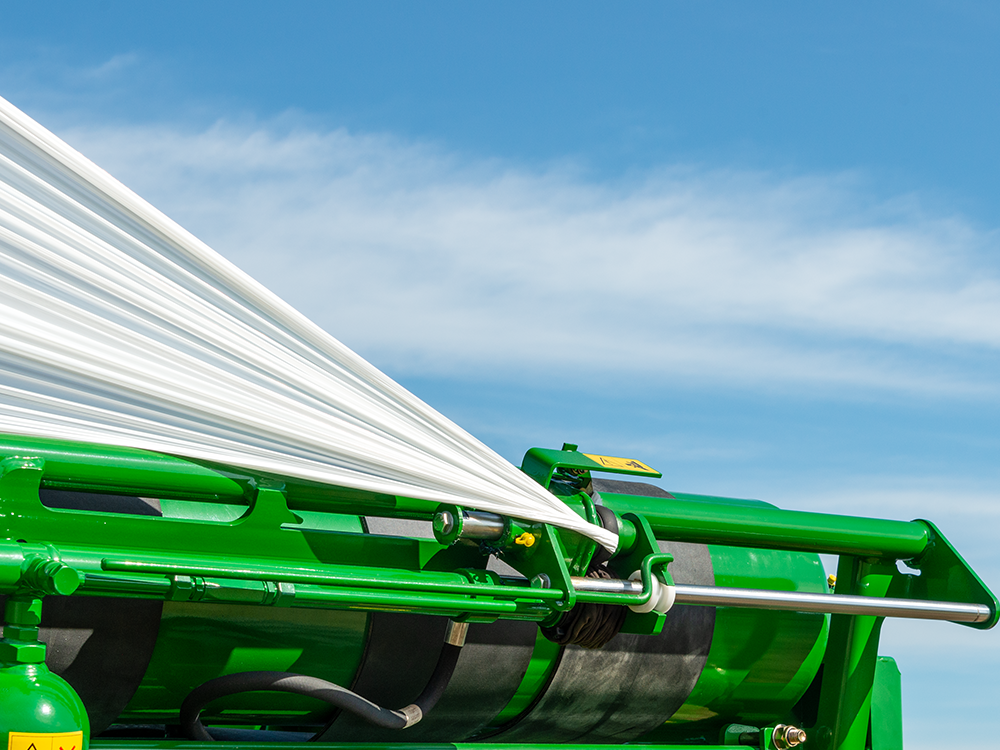

750mm aluminum dispenser Consistent film stretch, which maximises film usage Quick Fit Dispenser
Hydraulically Operated Cut & Hold A smooth wrapping seal is guaranteed as the machine delivers a 50% overlap Wrapping table is constructed of four heavy-duty endless belts, which ensure smooth and consistent bale rotation
Features

Extra Film Storage with Easy Handling

Features

Extra Film Storage with Easy Handling

The 991 L range can carry 3 rolls of film:
1 roll (dispenser) + 2 rolls (film storage)

Features

Cut & Hold System

Features

Cut & Hold System

At the end of the wrapping cycle, the hydraulically operated cut & hold system cuts and holds the film in position ready to wrap the next bale.

Read more
Features

Automatic Film Break Sensors

Features

Automatic Film Break Sensors

Automatic film break sensors monitor the plastic as it leaves the dispenser rollers. If plastic breaks or runs out, the machine will notify the operator via the control console.

Read more
Features

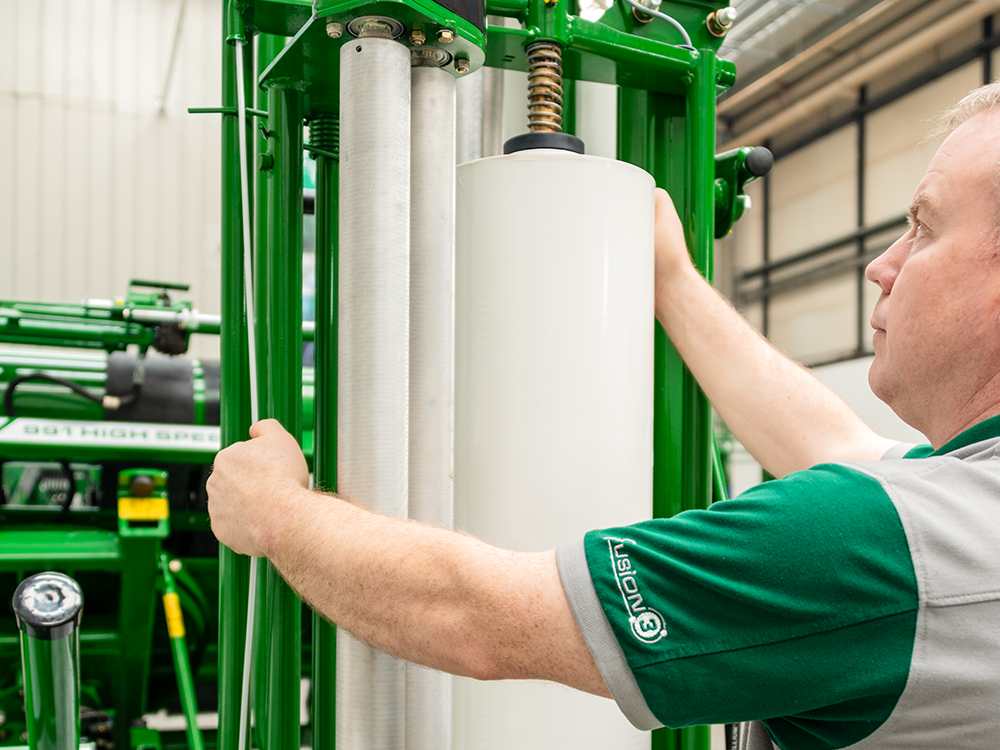

Easy Load Dispensers

Features

Easy Load Dispensers

The McHale lock and load system makes film loading quick and easy by locking the dispenser bobbin up when unloading and locking it back down by simply pulling the cable.

Read more
Features

Shear Bolt Unit

Features

Shear Bolt Unit

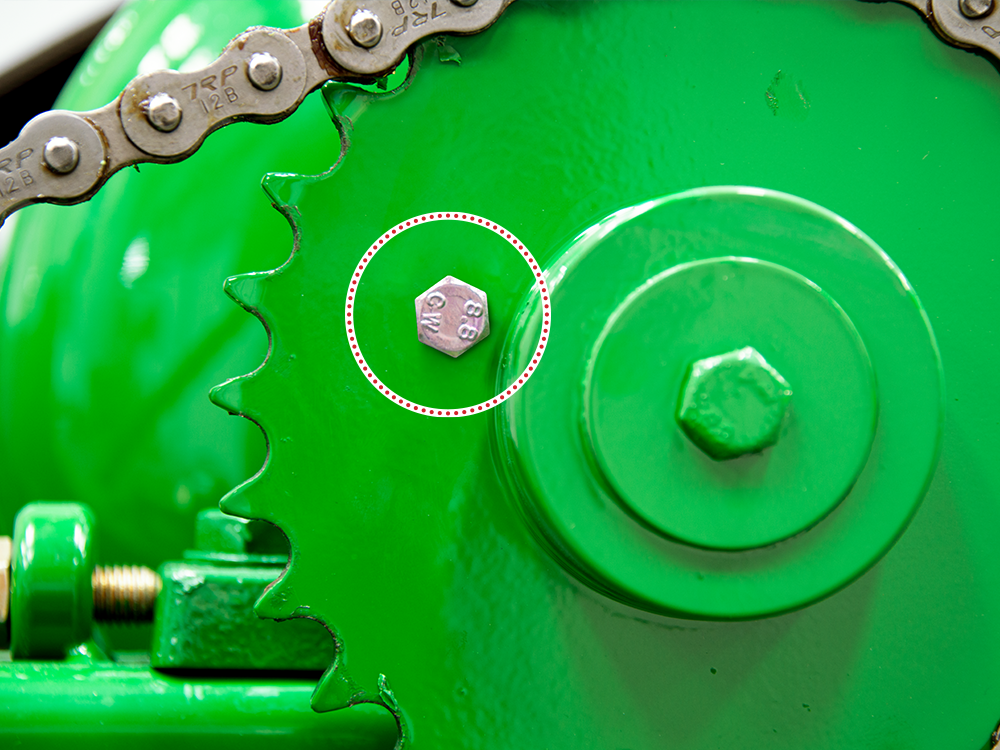

A Shear Bolt protects the gearbox when wrapping poorly shaped bales. All machines are now driven by a heavier gearbox than previous models.

Read more
Features

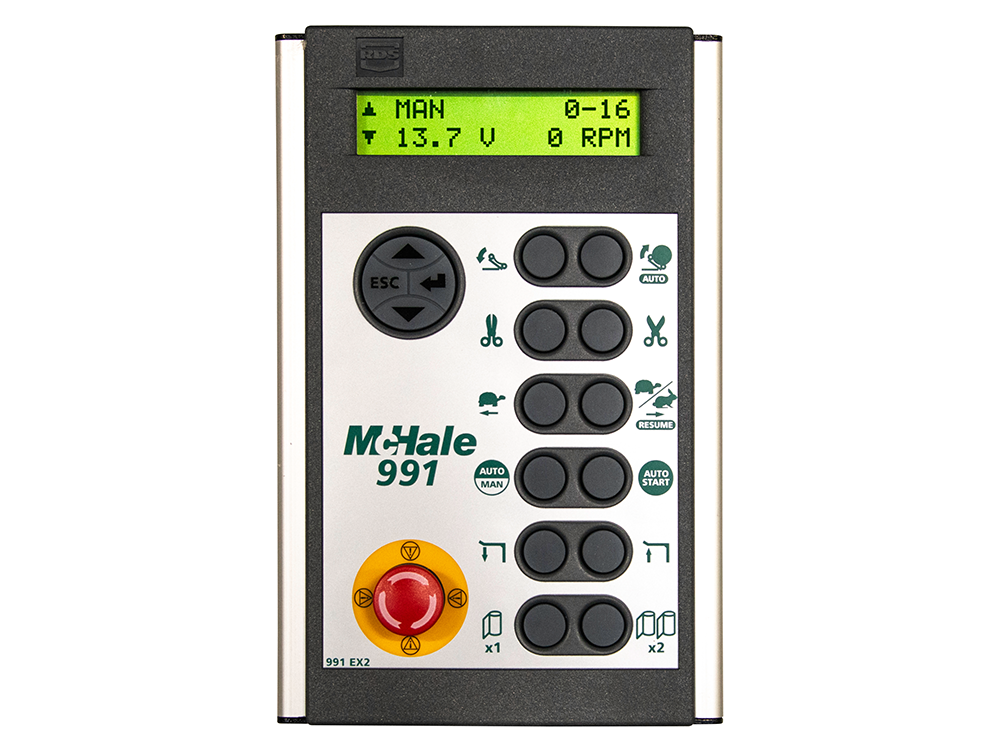

Expert Control Console

Features

Expert Control Console

The Expert electronic control console fully automates the wrapping process. When the auto start lift arm paddle is activated, the bale is lifted up to the wrapping table, wrapped and tipped, ready to start the process again.

Features

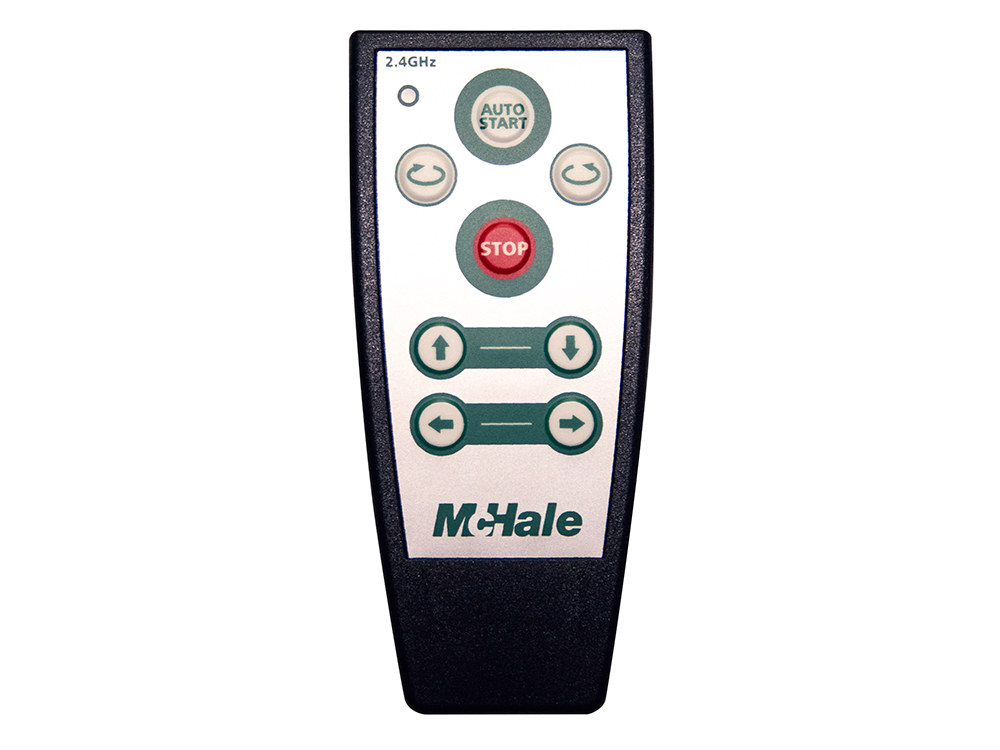

Radio Remote Control Kit for Static Wrapping

Features

Radio Remote Control Kit for Static Wrapping

With a radio remote control kit, an operator can load a bale and activate the automatic cycle remotely.

Read more

    McHale 991 LBER Single Dispenser Linkage Wrapper

    Watch the video for the McHale 991 LBER, a fully automatic machine that can be controlled via the control console.

      Integrating the Latest Technology

      Technical Specification

      Transport Length 2.8 m (9’2″)
      Transport Width 1.65 m (5’5″)
      Transport Height 1.94 m (6’4″)
      Height to Top of Rollers 0.83 m (2’9″)
      Weight (unladen) 800 kg (1764 lbs)



      Bale Size 1.52 m (3’3″-5′)
      Aluminum Dispensers 1 x 750 mm

      Optional 500 mm Kit

      Film Stretch 70% Standard

      55% Optional

      Wrapping Speed (up to) 30 rotations/min
      Wrapping System Turntable
      Protection Mechanism Shear Bolt
      Lift Capacity

      @ 170 bar

      N/A



      Driver Control Expert Control Console
      Operation Automatic & Manual
      Radio Remote Control Standard
      Film Roll Capacity X 3 (1+2)
      Cut & Hold Yes
      Bale Wrap Monitor Yes



      Road Lights N/A
      Greasing Points 11
      Wheel Dimensions N/A
      Axle N/A

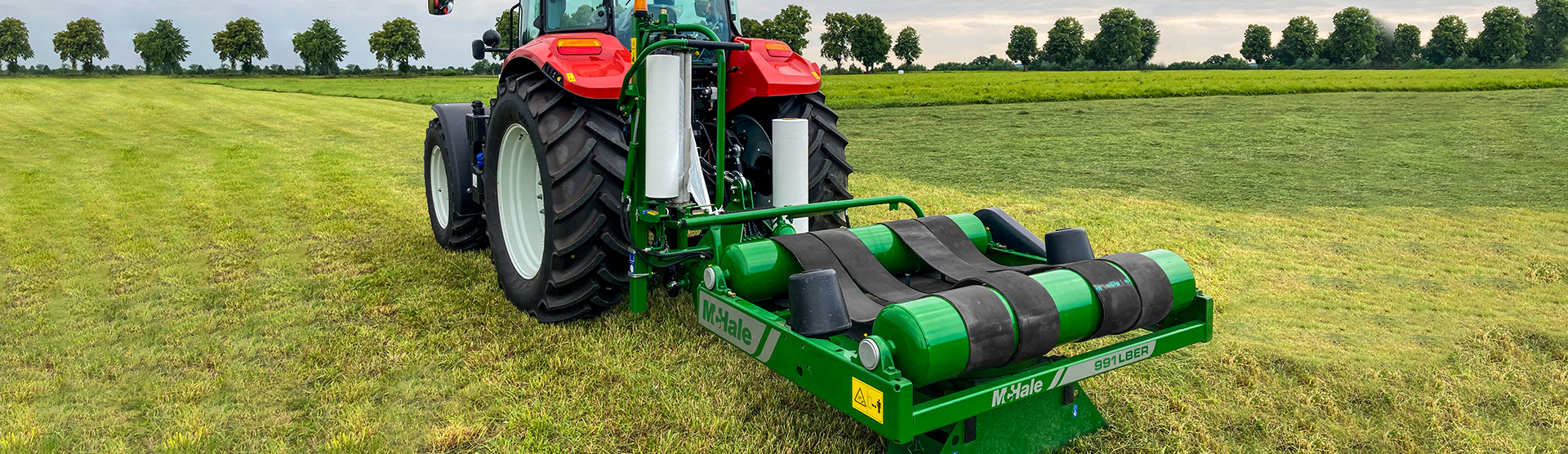

      Attachment to Tractor 3 Point Linkage
      Min. Hydraulic Requirements 20 l/min @ 180 bar
      Hydraulic Connections 2 x 1/2″ QR’s Open

      or Closed Centre

      Electrical Requirements 12v EuroPlug, 20A or Direct from Battery
      Minimum hp Requirement 45 kW / 60 hp
