991 TBER Single Dispenser

991 TBER Single Dispenser Trailed Wrapper

McHale’s round bale wrapper range has been designed with the demands of today’s farmer and contractor in mind. This common-sense approach to design ensures that each machine’s operation is kept simple and user friendly.

Farmers and contractors all over the world are under pressure to reduce costs and increase output. To help with this, McHale concentrate on features like the patented hydraulic ground supported bale damper system, patented high-speed transfer system, patented tip rollers, hydraulically operated cut & hold system, 750mm dispensers and high specification components.

These features ensure long working life, reliability and a machine rugged enough to handle the toughest crops, heaviest bales and roughest ground conditions.

Download Product PDF

Overview

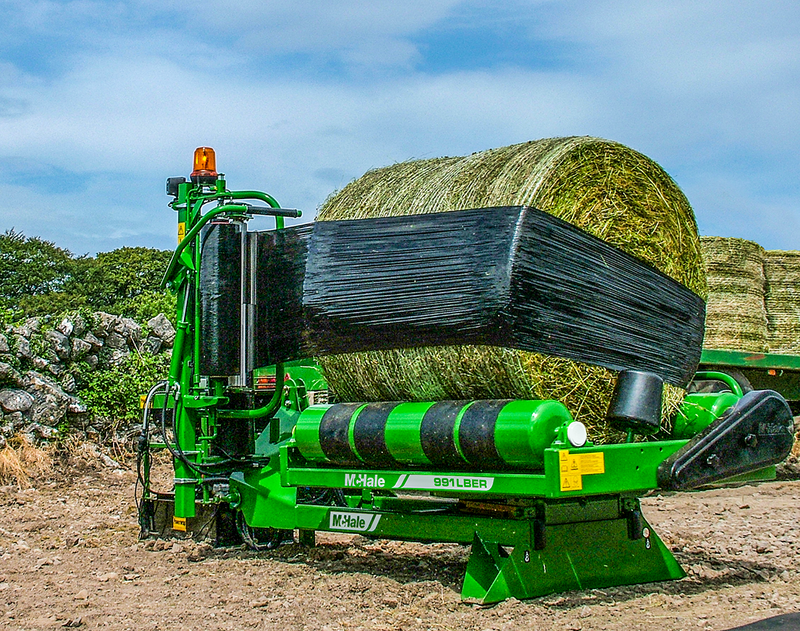

The McHale 991 L range of linkage round bale wrappers is the first choice for farmers and contractors who are interested in wrapping bales at the storage site. The 991 L range offers the perfect blend of tried and tested technology with solid construction and reliable performance. There are three models in the 991 linkage round bale wrapper range.

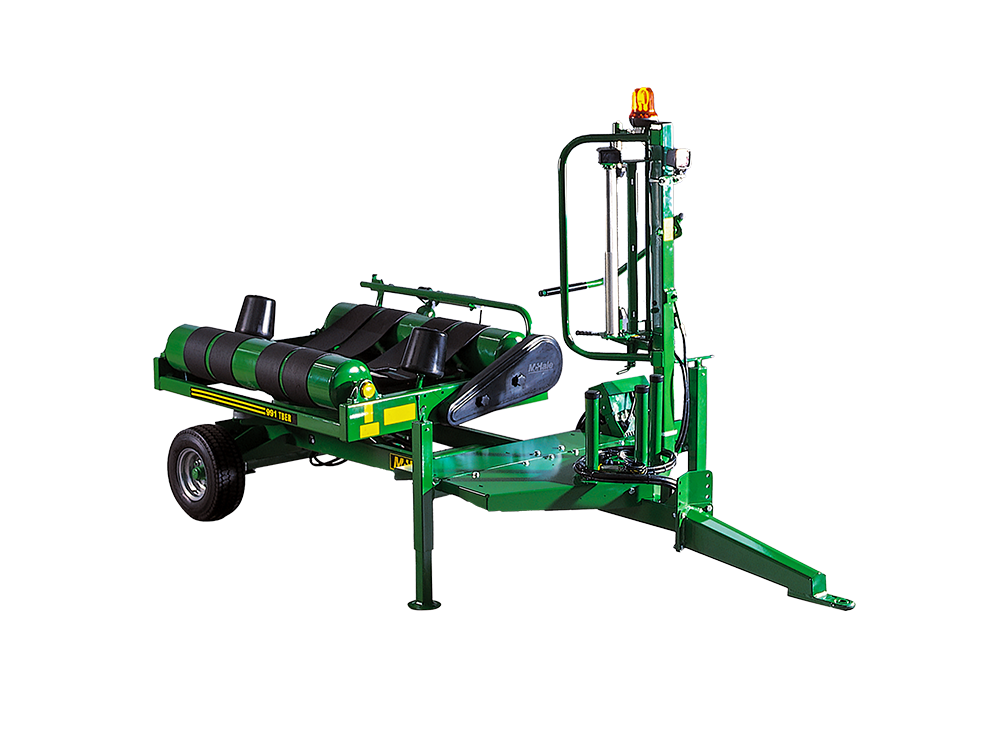

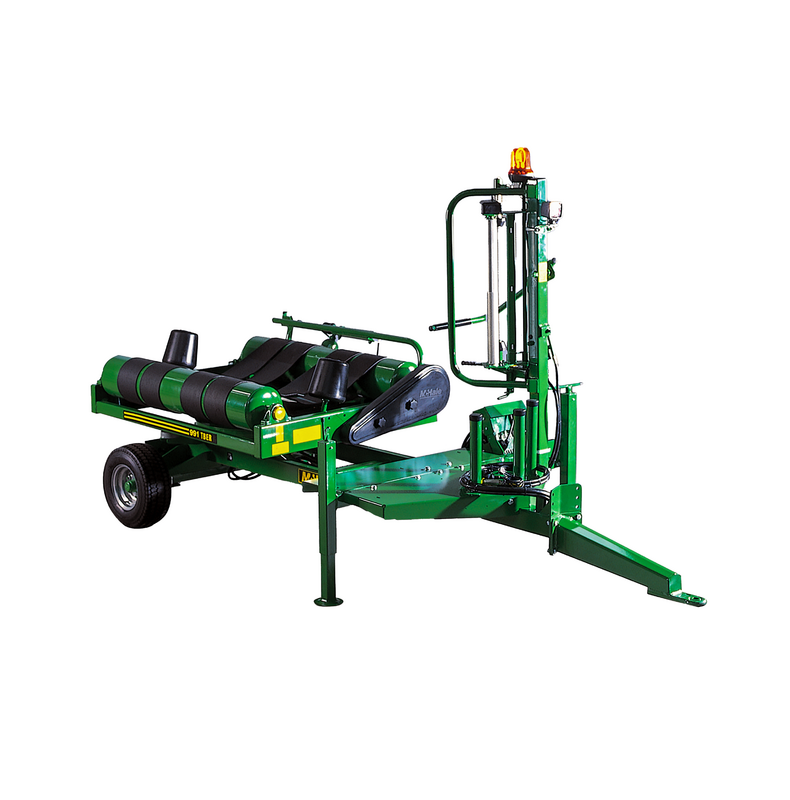

The 991 TBER is fully automatic and can be controlled via the control console. It has a specifically adapted chassis which can be used for transportation and mounting of a hydraulic power pack. The 991 TBER can be transported by a small tractor or telehandler to and from the static wrapping site.




Standard Features

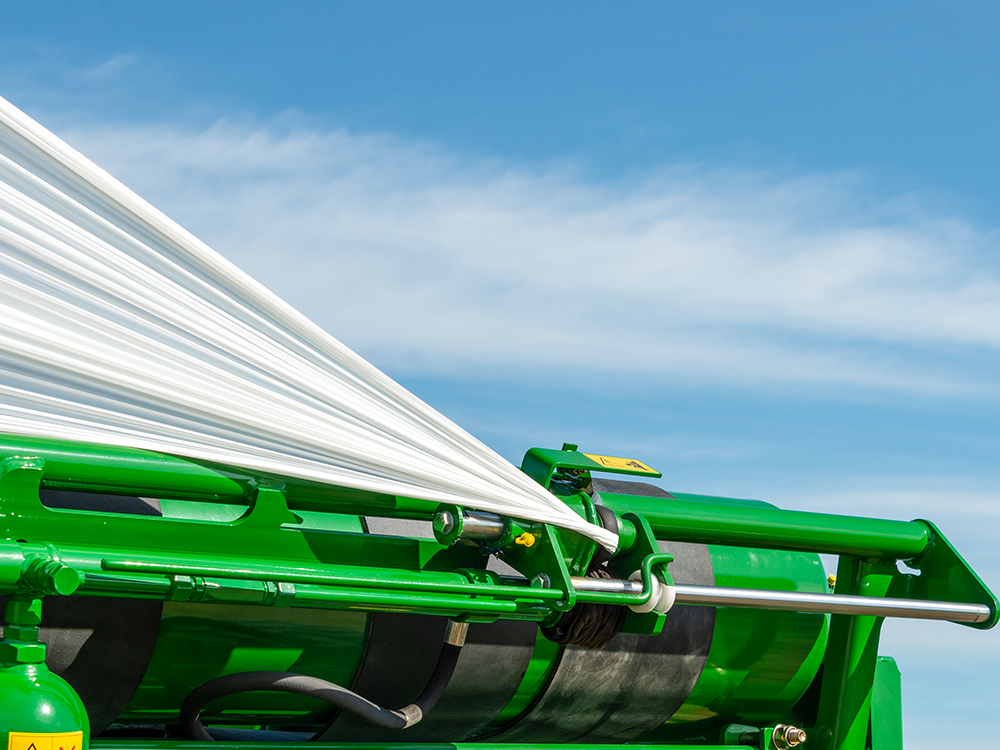

750mm aluminum dispenser Consistent film stretch, which maximises film usage Quick Fit Dispenser
Hydraulically Operated Cut & Hold A smooth wrapping seal is guaranteed as the machine delivers a 50% overlap Wrapping table is constructed of four heavy-duty endless belts, which ensure smooth and consistent bale rotation
Features

Ground Supported Damper System

Features

Ground Supported Damper System

The patented bale damper system gently lowers the bale to the ground while eliminating any stress on the chassis of the machine.

Read more
Features

Lift Arm & Wrapping Table

Features

Lift Arm & Wrapping Table

The 991 BC and BJS lift arms are operated manually. On the 991 BE and High-Speed, the auto lift function places the bale on the wrapping table automatically.

Read more
Features

Extra Film Storage with Easy Handling

Features

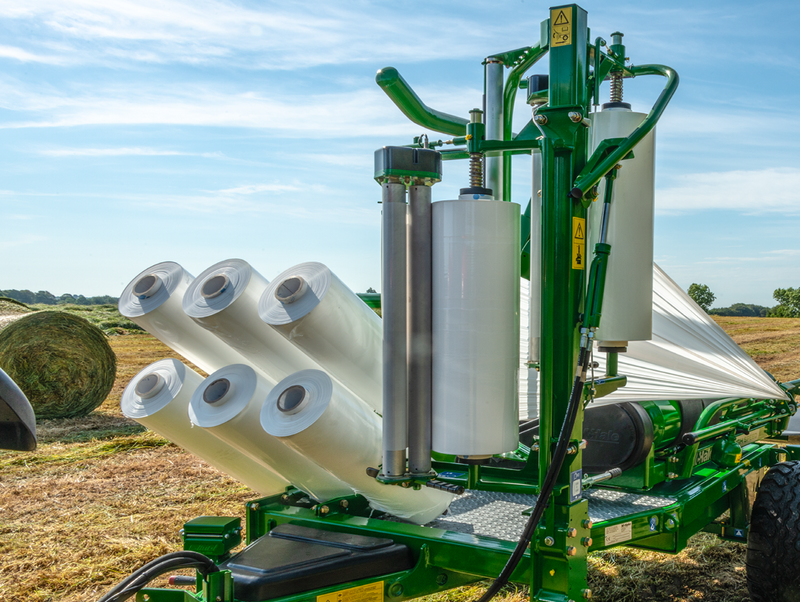

Extra Film Storage with Easy Handling

991 L range can carry 3 rolls of film:
1 roll (dispenser) + 2 rolls (film storage)

Features

Optional Side Tip

Features

Optional Side Tip

An optional side tip is available on all trailed machines to place bales on their ends after wrapping is complete.

Read more
Features

Cut & Hold System

Features

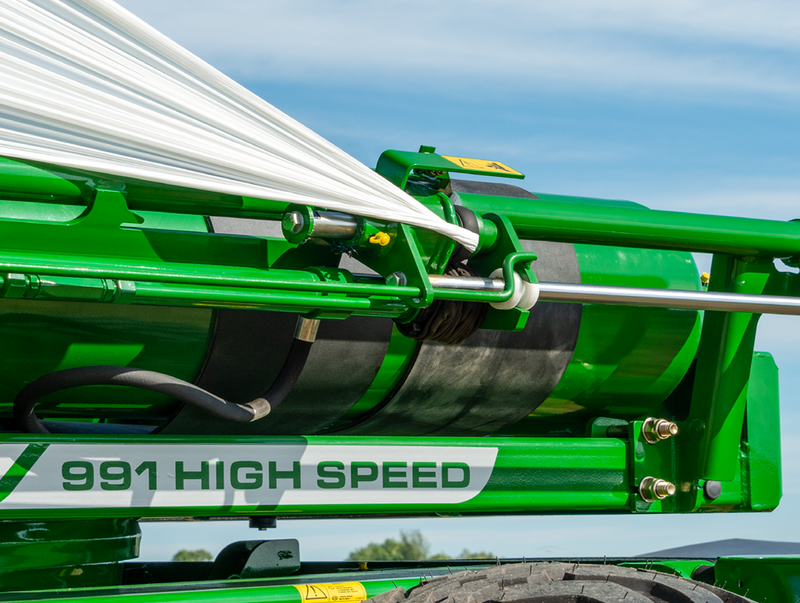

Cut & Hold System

At the end of the wrapping cycle, the hydraulically operated cut & hold system cuts and holds the film in position ready to wrap the next bale.

Read more
Features

Automatic Film Break Sensors

Features

Automatic Film Break Sensors

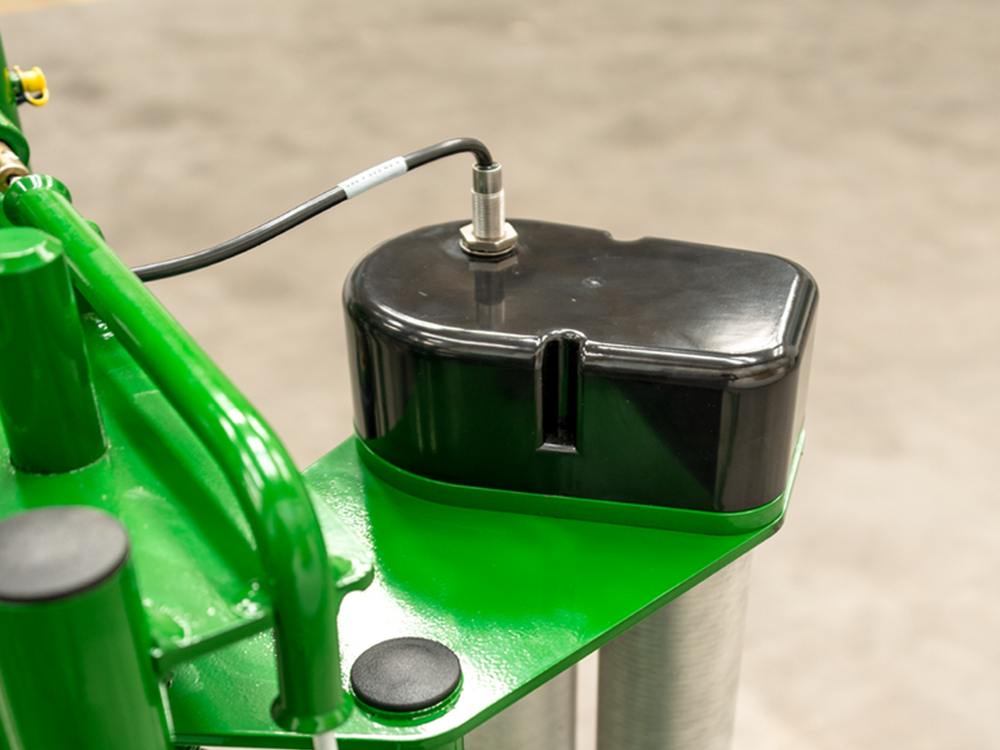

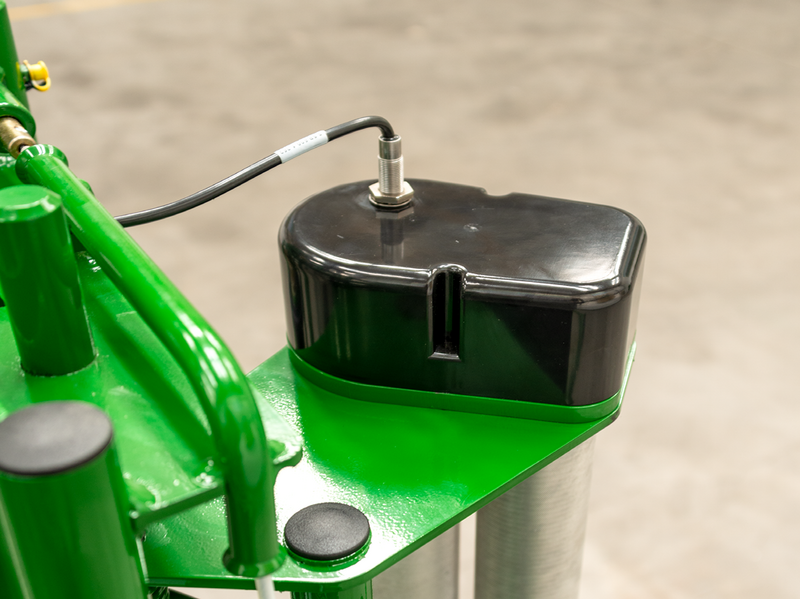

Automatic film break sensors monitor the plastic as it leaves the dispenser rollers. If plastic breaks or runs out, the machine will notify the operator via the control console.

Read more
Features

Easy Load Dispensers

Features

Easy Load Dispensers

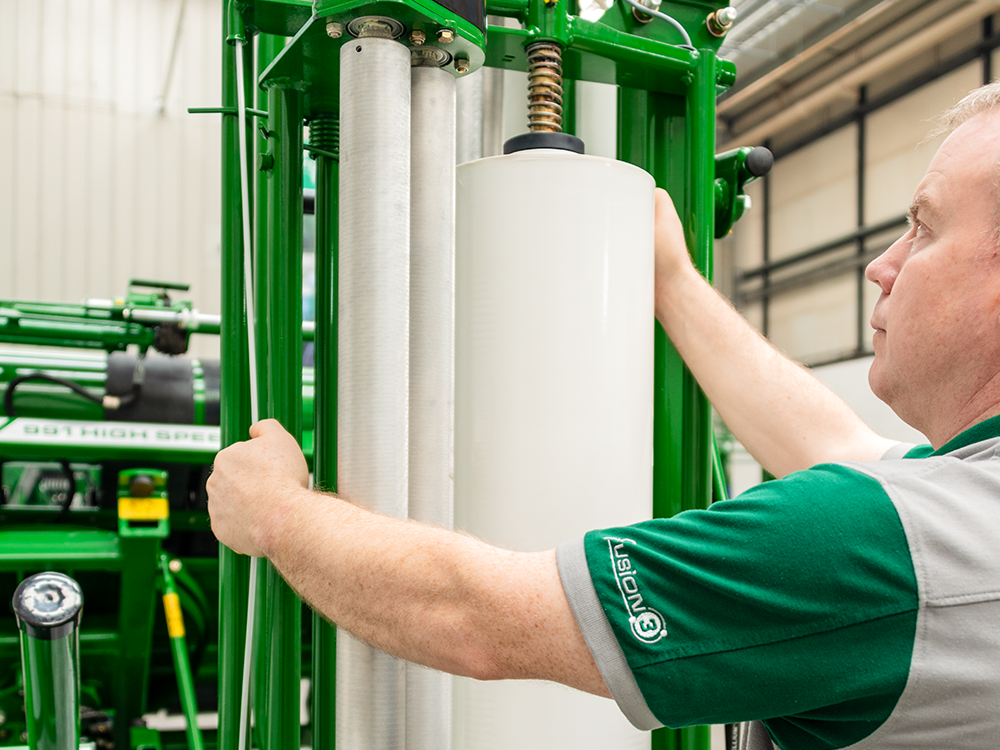

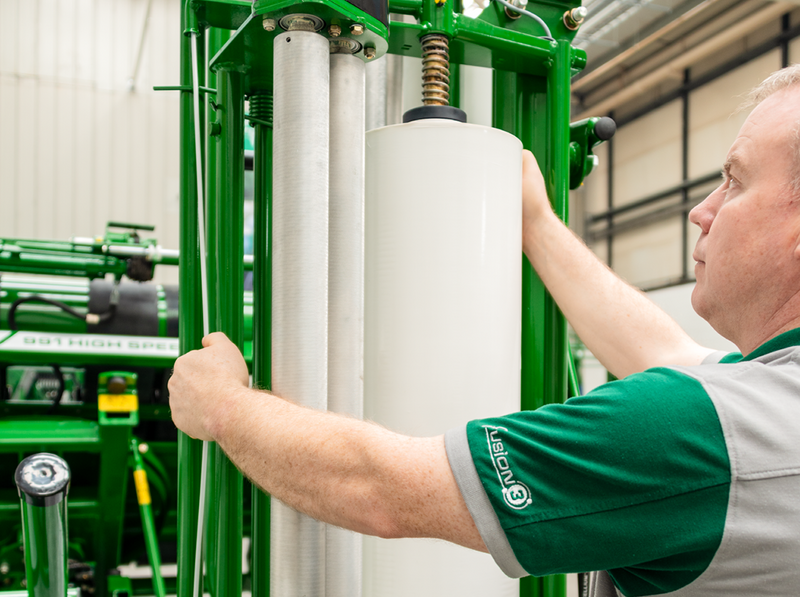

The McHale lock and load system makes film loading quick and easy by locking the dispenser bobbin up when unloading and locking it back down by simply pulling the cable.

Read more
Features

Shear Bolt Unit

Features

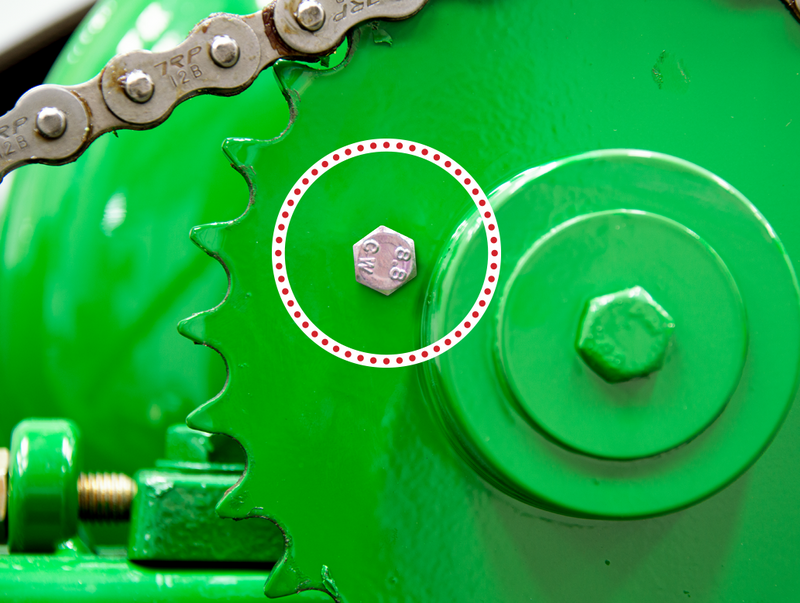

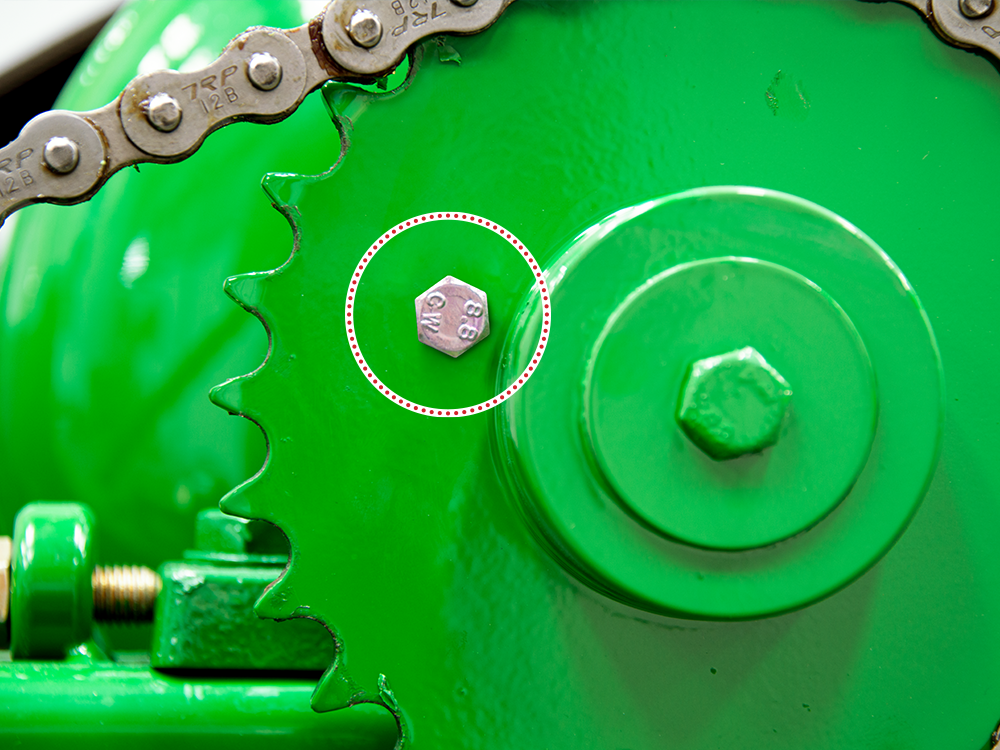

Shear Bolt Unit

A Shear Bolt protects the gearbox when wrapping poorly shaped bales. All machines are now driven by a heavier gearbox than previous models.

Read more
Features

Expert Control Console

Features

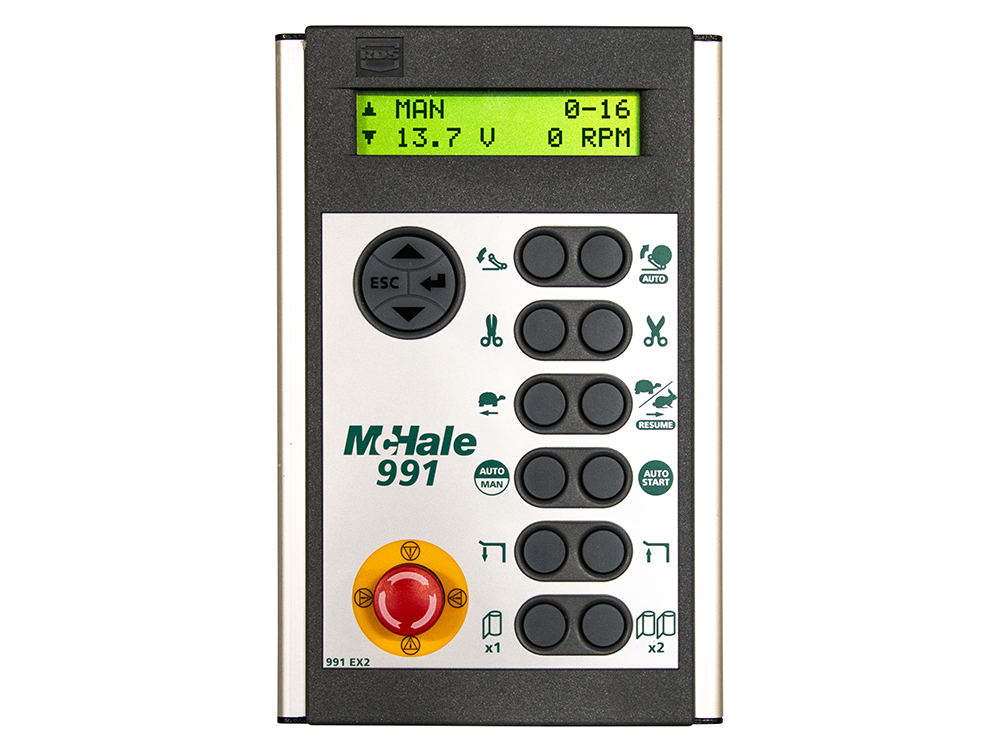

Expert Control Console

The Expert electronic control console fully automates the wrapping process. When the auto start lift arm paddle is activated, the bale is lifted up to the wrapping table, wrapped and tipped, ready to start the process again.

Features

Radio Remote Control Kit for Static Wrapping

Features

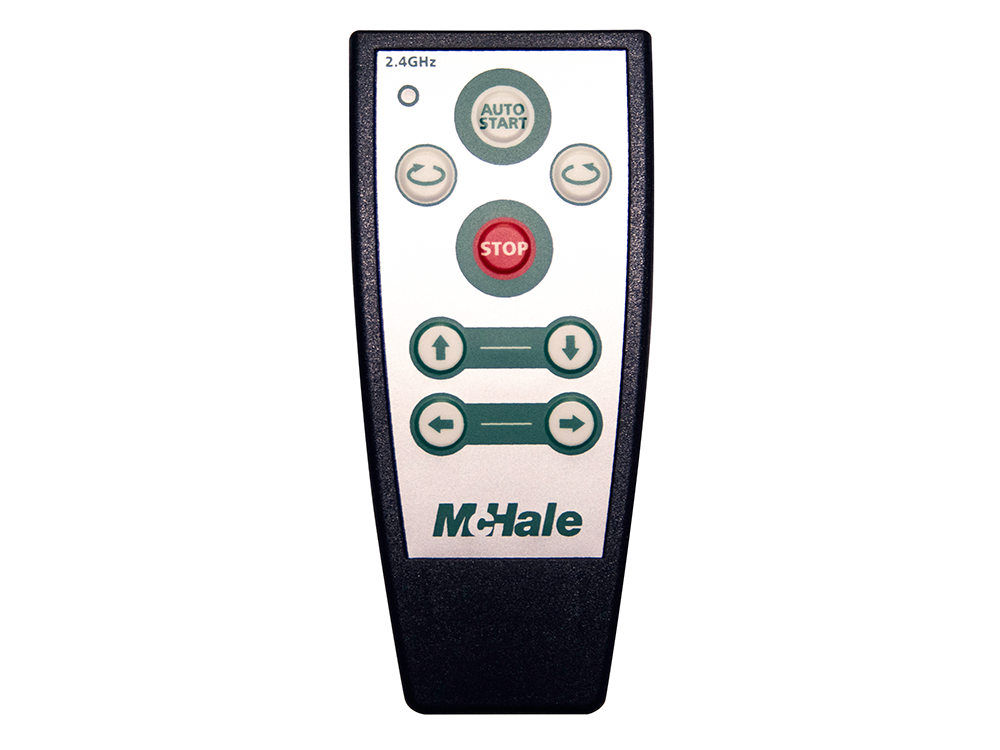

Radio Remote Control Kit for Static Wrapping

With a radio remote control kit, an operator can load a bale and activate the automatic cycle remotely.

Read more

    McHale 991 TBER Single Dispenser Trailed Wrapper

    Watch the video for the McHale 991 TBER, a fully automatic machine that can be controlled via the control console. It has a specifically adapted chassis which can be used for transportation and mounting of a hydraulic power pack. The 991 TBER can be transported by a small tractor or telehandler to and from the static wrapping site.

      Integrating the Latest Technology

      Technical Specification

      Transport Length 4.5 m (14’9″)
      Transport Width 2 m (6’7″)
      Transport Height 2.05 m (6’9″)
      Height to Top of Rollers 1.01 m (3’4″)
      Weight (unladen) 1,090 kg (2403 lbs)



      Bale Size 1.52 m (3’3″-5′)
      Aluminum Dispensers 1 x 750 mm

      Optional 500 mm Kit

      Film Stretch 70% Standard

      55% Optional

      Wrapping Speed

      (up to)

      30 rotations/min
      Wrapping System Turntable
      Protection Mechanism Shear Bolt
      Lift Capacity

      @ 170 bar

      N/A
      Driver Control Expert Control Console
      Operation Automatic & Manual
      Radio Remote Control Standard
      Film Roll Capacity X 3 (1+2)
      Cut & Hold Yes
      Bale Wrap Monitor Yes



      Road Lights Yes
      Greasing Points 11
      Wheel Dimensions 20.5/8-10
      Axle 5 Stud
      Attachment to Tractor Pin Hitch
      Min. Hydraulic Requirements 20 l/min @ 180 bar
      Hydraulic Connections 2 x 1/2″ QR’s Open

      or Closed Centre

      Electrical Requirements 12v EuroPlug, 20A or Direct from Battery
      Minimum hp Requirement 35 kW / 47 hp
